22179 TE - Toro 53cm Heavy-Duty Rear Bagger Walk-Behind Mower (SN: 260000001 - 260999999) (2006) REAR WHEEL ASSEMBLY NO. 100-2860 Parts Diagram

53cm Heavy-Duty Rear Bagger Walk-Behind Mower

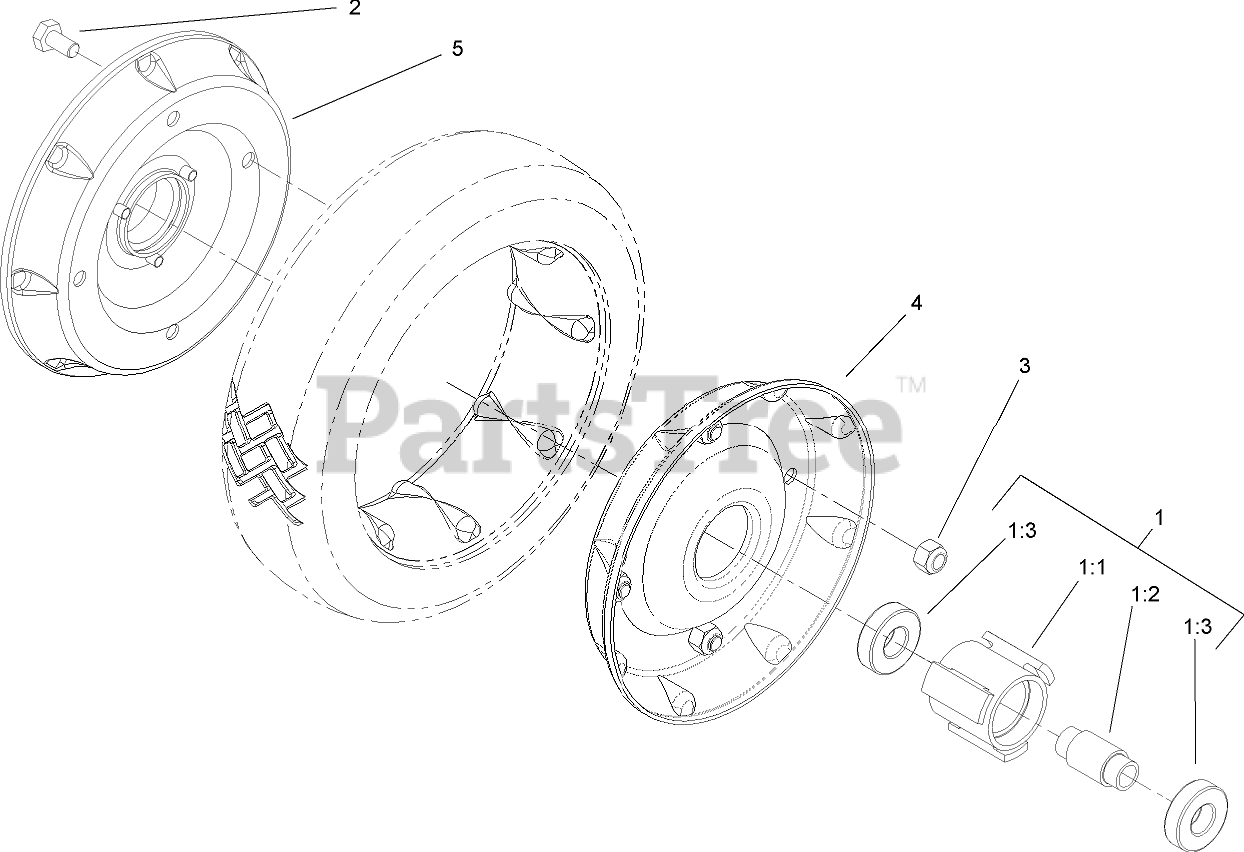

REAR WHEEL ASSEMBLY NO. 100-2860 Parts Diagram

  • Title
1

HUB and BEARING ASM

Note: Not serviced separately

$

$

Not available

1:1

Toro 52-2410

HUB-BEARING

$33.99

$

In Stock, Qty 14

0

1:2

Toro 52-2440

SPACER-BEARING

$9.49

$

In Stock, Qty 5

0

1:3

Toro 52-2450

BEARING-WHEEL

$18.99

$

In Stock, Qty 20+

0

2

Toro 321-2

SCREW-HH

$3.49

$

In Stock, only 1 left!

0

3

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 12

0

4

Toro 53-7780-06

PLATE-WHEEL, HALF
(Superseded to 121-1365-06)

$19.99

$

In Stock, only 2 left!

0

5

Toro 92-4957-06

WHEEL HALF AND GEAR ASM
(Superseded to 121-1378-06)

$30.99

$

In Stock, Qty 6

0
