22179 TE - Toro 53cm Heavy-Duty Rear Bagger Walk-Behind Mower (SN: 260000001 - 260999999) (2006) HOUSING ASSEMBLY Parts Diagram

53cm Heavy-Duty Rear Bagger Walk-Behind Mower

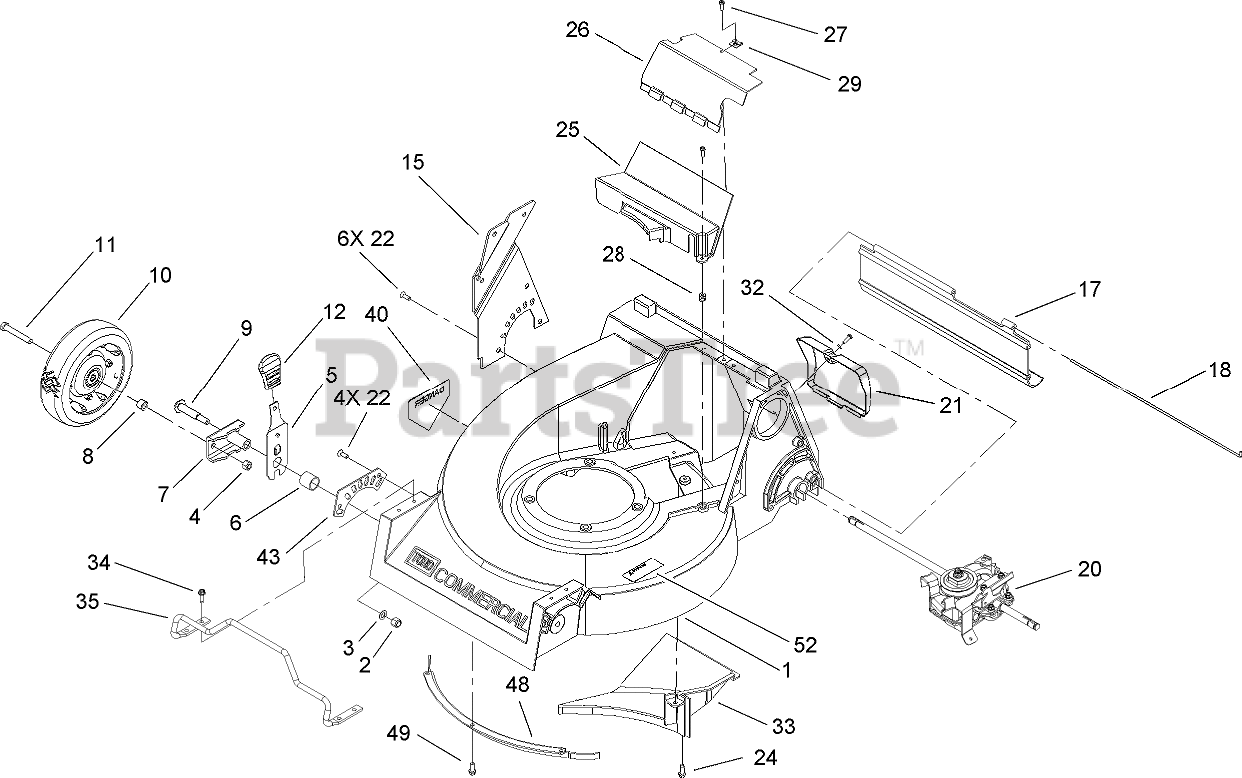

HOUSING ASSEMBLY Parts Diagram

  • Title
1

Toro 107-4165-01

HOUSING
(Superseded to 115-0992)

$497.99

$

Usually ships in 3-6 days

0

2

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

3

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 20+

0

4

Toro 32152-2

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 17

0

5

Toro 110-0537

SPRING ARM ASM
(Superseded to 115-0980)

$16.99

$

In Stock, only 2 left!

0

6

Toro 75-5310

SPACER-BEARING

$5.99

$

Usually ships in 3-6 days

0

7

Toro 61-8300

ARM-PIVOT, FRONT

$30.99

$

In Stock, Qty 7

0

8

Toro 52-2480

SPACER-WHEEL

$6.49

$

In Stock, Qty 12

0

9

Toro 27-6232

BOLT-WHEEL
(Superseded to 114-3468)

$5.49

$

In Stock, Qty 20+

0

10

Toro 100-2870

Wheel and Tire ASM
(Superseded to 121-1380)

$101.99

$

In Stock, only 3 left!

0

11

Toro 323-12

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

12

Toro 110-0549

KNOB-HOC

$1.49

$

In Stock, Qty 20+

0

13

Toro 108-2646

PLATE-FRONT HOC, LH
(Superseded to 115-0960)

Note: Not illustrated

$46.99

$

Usually ships in 3-6 days

0

15

Toro 107-4299-01

PLATE-REAR HOC, RH
(Superseded to 115-4462)

$

$

Not available

17

Toro 110-0509

SHEILD-TRAILING

$43.99

$

In Stock, only 1 left!

0

18

Toro 33-3202

ROD-SHIELD

$8.99

$

In Stock, only 1 left!

0

19

Toro 107-4160-01

PLATE-REAR HOC, LH
(Superseded to 115-4462)

Note: Not illustrated

$

$

Not available

20

Toro 110-2100

GEAR CASE ASM

$1112.99

$

Usually ships in 3-6 days

0

21

Toro 107-4288

DOOR-ACCESS, REAR

$27.99

$

Usually ships in 3-6 days

0

22

Toro 32144-17

SCREW-HH

$6.49

$

Usually ships in 3-6 days

0

24

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

25

Toro 107-4297

COVER-BELT, LOWER

$27.99

$

Usually ships in 3-6 days

0

26

Toro 107-4298

COVER-BELT, UPPER

$27.99

$

Usually ships in 3-6 days

0

27

$2.99

$

Usually ships in 3-6 days

0

28

Toro 611380

NUT-CLIP

$

$

Not available

29

Toro 3290-171

NUT-TYPE J

$6.49

$

In Stock, only 3 left!

0

32

Toro 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

33

Toro 110-2108

BAFFLE-CHUTE, FLOOR
(Superseded to 115-0973)

$33.99

$

Usually ships in 3-6 days

0

34

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

35

Toro 110-4876

GUARD-ENGINE

$

$

Not available

40

Toro 93-6654

DECAL-DANGER

$

$

Not available

43

Toro 108-2647

PLATE-FRONT HOC, RH
(Superseded to 115-0961)

$46.99

$

Usually ships in 3-6 days

0

48

Toro 110-2148-01

BAFFLE-FRONT
(Superseded to 46-5400-03)

$65.99

$

Usually ships in 3-6 days

0

49

Toro 32144-85

SCREW-HWH

$1.99

$

In Stock, Qty 20+

0

52

Toro 93-6657

DECAL-DANGER

$

$

Not available
