22178 TE - Toro 53cm Heavy-Duty Rear Bagger Walk-Behind Mower (SN: 310000001 - 310999999) (2010) BLADE BRAKE CLUTCH ASSEMBLY Parts Diagram

53cm Heavy-Duty Rear Bagger Walk-Behind Mower

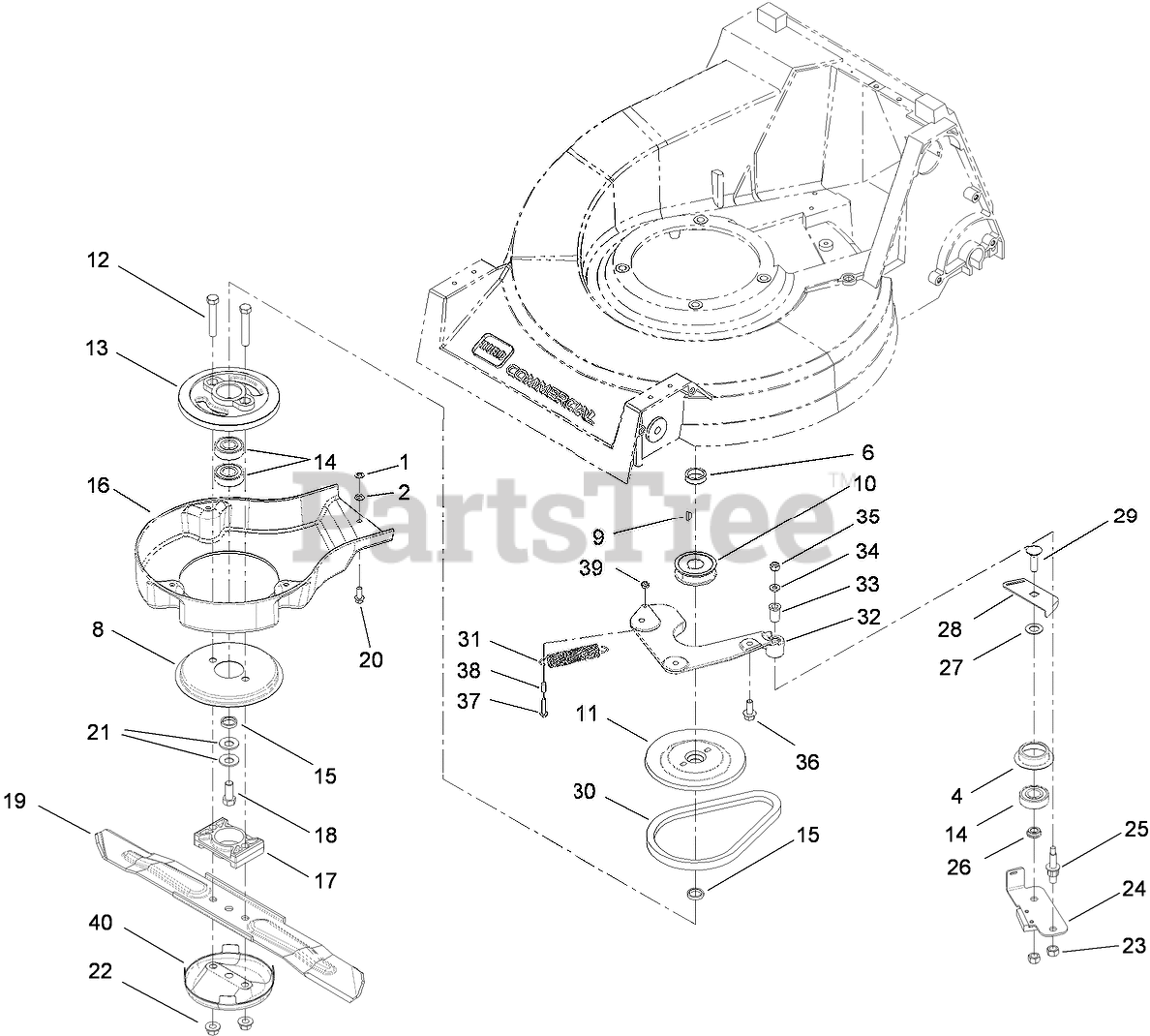

BLADE BRAKE CLUTCH ASSEMBLY Parts Diagram

  • Title

1

Toro 106-8737

NUT-RETAINER
(Superseded to 32115-15)

$1.49

$

In Stock, Qty 20+

0

2

Toro 3256-60

WASHER-FLAT

$1.99

$

Usually ships in 3-6 days

0

4

Toro 108-3790

RETAINER-BELT
(Superseded to 138-3217)

$2.99

$

In Stock, Qty 20+

0

6

Toro 110-2142

SPACER-PULLEY

$22.99

$

Usually ships in 3-6 days

0

8

Toro 108-3787

DISC
(Superseded to 138-3225)

$12.99

$

In Stock, only 4 left!

0

9

Toro 3257-17

KEY-WOODRUFF

$5.49

$

In Stock, only 1 left!

0

10

Toro 56-6180

PULLEY-DRIVER

$51.99

$

In Stock, Qty 9

0

11

Toro 107-4277-03

PULLEY-DRIVER, UPPER

$149.99

$

In Stock, only 2 left!

0

12

Toro 104-5936

SCREW-HH

$4.49

$

Usually ships in 3-6 days

0

13

Toro 107-0754

DRUM
(Superseded to 126-8108)

$54.99

$

In Stock, only 1 left!

0

14

Toro 100-1048

BEARING-BALL
(Superseded to 38-7820)

$13.99

$

In Stock, Qty 20+

0

15

Toro 107-4293

SPACER-PLATE, BBC

$12.99

$

In Stock, only 2 left!

0

16

Toro 110-0508

SHIELD-BBC

$36.99

$

Usually ships in 3-6 days

0

17

Toro 107-4275

SPACER-BLADE

$23.99

$

Usually ships in 3-6 days

0

18

Toro 3212-4

SCREW-HH

$3.49

$

In Stock, only 2 left!

0

19

Toro 91-2256-03

BLADE-21 INCH

$31.99

$

In Stock, only 1 left!

0

20

Toro 32144-85

SCREW-HWH

$1.99

$

In Stock, Qty 20+

0

21

Toro 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 8

0

22

Toro 54-9190

NUT-LOCK
(Superseded to 127-6852)

$2.99

$

In Stock, Qty 20+

0

23

Toro 603773

NUT

$2.99

$

In Stock, only 4 left!

0

24

Toro 107-7477

BRAKE ARM ASM
(Superseded to 125-1063)

$23.99

$

In Stock, Qty 5

0

25

Toro 107-0759

BOLT-SHOULDER

$10.99

$

In Stock, Qty 16

0

26

Toro 107-0758

SPACER-BEARING

$3.49

$

In Stock, Qty 6

0

27

Toro 605256

WASHER-PLAIN

$2.99

$

In Stock, Qty 20+

0

28

Toro 107-7471

PLATE-GUIDE
(Superseded to 138-3222)

$3.49

$

In Stock, Qty 20+

0

29

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 20+

0

30

Toro 110-1790

BELT
(Superseded to 110-1790-SL)

$35.99

$

Usually ships in 3-6 days

0

31

Toro 115-4471

SPRING-EXTENSION

$20.99

$

In Stock, only 4 left!

0

32

Toro 107-4280

PLATE-MOUNTING, BBC
(Superseded to 116-3572)

$47.99

$

In Stock, only 2 left!

0

33

Toro 107-0797

BUSHING

$6.49

$

In Stock, Qty 9

0

34

Toro 3256-16

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

35

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

36

Toro 33104-020

SCREW-HHF

$3.49

$

In Stock, only 3 left!

0

37

Toro 32144-9

SCREW-TAP

$5.49

$

In Stock, only 2 left!

0

38

Toro 107-4292

SPACER-BBC

$7.99

$

In Stock, only 1 left!

0

39

Toro 3296-27

NUT-LOCK, NI

$1.49

$

In Stock, Qty 10

0

40

Toro 80-2770

CUP-SCALP, ANTI

$15.99

$

Usually ships in 3-6 days

0
