22177 - Toro 21" Heavy-Duty Recycler Walk-Behind Mower (SN: 250000001 - 250999999) (2005) FUEL LINE AND TANK ASSEMBLY Parts Diagram

21" Heavy-Duty Recycler Walk-Behind Mower

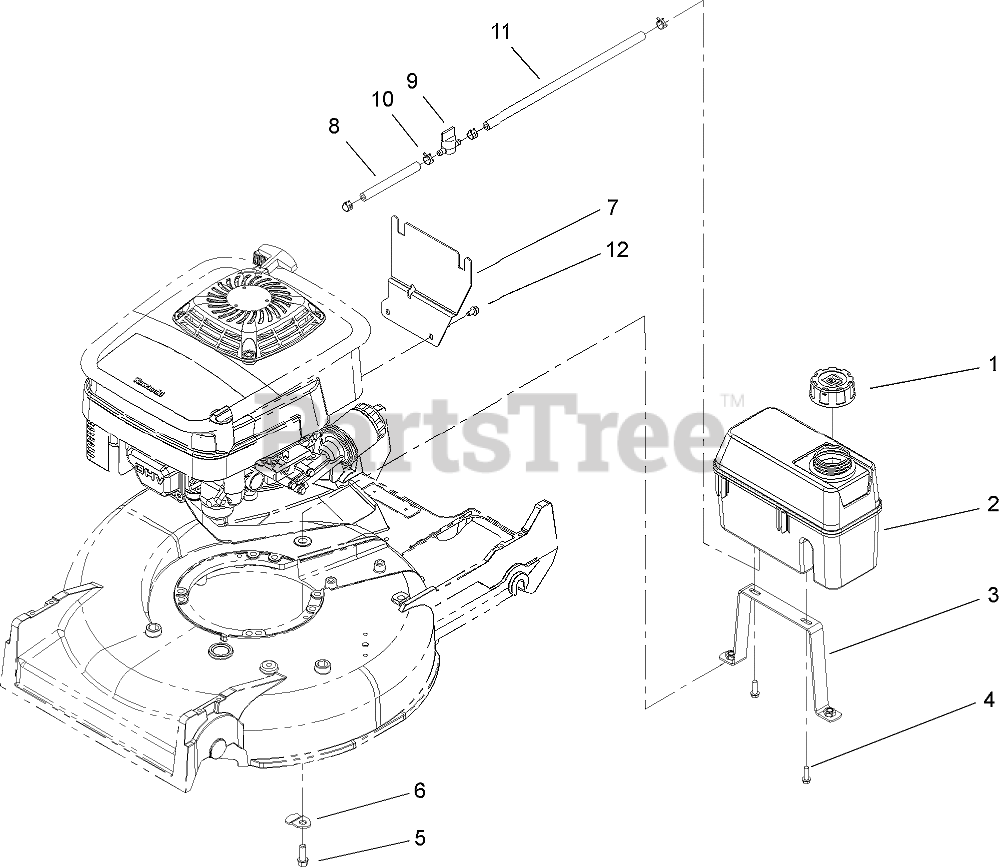

FUEL LINE AND TANK ASSEMBLY Parts Diagram

  • Title
1

Toro 93-7198

CAP-GAS

$15.99

$

In Stock, only 1 left!

0

2

Toro 106-0625

Tank-Fuel
(Superseded to 117-3510)

$92.99

$

In Stock, only 4 left!

0

3

Toro 107-4131-03

TANK BASE

$

$

Not available

4

Toro 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0

5

Toro 95-1727

SCREW-TAPTITE

$2.99

$

In Stock, Qty 20+

0

6

Toro 84-8930

SHIELD-RETAINER

$2.99

$

Usually ships in 3-6 days

0

7

Toro 106-0908-03

BRACKET-TANK

$21.99

$

Usually ships in 3-6 days

0

8

Toro 47-2983

HOSE-FUEL
(Superseded to 109-0296)

$10.99

$

In Stock, only 4 left!

0

9

Toro 1-603770

VALVE-FUEL

$7.99

$

In Stock, Qty 9

0

10

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

11

Toro 106-0999

HOSE-GAS
(Superseded to 109-0650)

$7.99

$

Usually ships in 3-6 days

0

12

Toro 104-2628

SCREW-HWH

$1.99

$

Usually ships in 3-6 days

0
