22176 - Toro 21" Heavy-Duty Recycler Walk-Behind Mower (SN: 240000001 - 240999999) (2004) GEAR CASE ASSEMBLY NO. 74-1861 Parts Diagram

21" Heavy-Duty Recycler Walk-Behind Mower

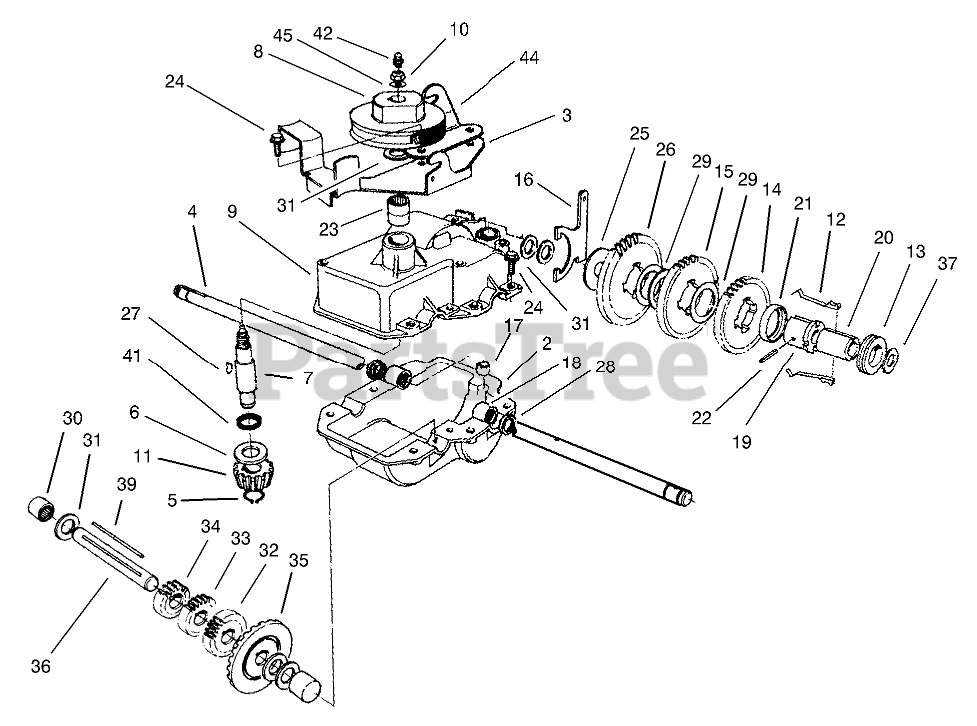

GEAR CASE ASSEMBLY NO. 74-1861 Parts Diagram

  • Title
2

Toro 74-1920

CASE-GEAR, LOWER
(Superseded to 119-7863)

$49.99

$

In Stock, only 4 left!

0

3

Toro 49-8461-03

BRACKET-GUIDE, BELT

$

$

Not available

4

Toro 74-1890

SHAFT-OUTPUT

$133.99

$

In Stock, only 3 left!

0

5

Toro 32151-57

RING-RETAINING

$5.49

$

In Stock, only 3 left!

0

6

Toro 47-2910

WASHER-THRUST

$13.99

$

In Stock, only 1 left!

0

7

Toro 68-8190

Shaft-Input
(Superseded to 13-5149)

$93.99

$

Usually ships in 3-6 days

0

8

Toro 39-6740

PULLEY

$54.99

$

Usually ships in 3-6 days

0

9

Toro 74-1880

CASE-GEAR, UPPER
(Superseded to 13-9739)

$83.99

$

Usually ships in 3-6 days

0

10

Toro 3296-5

NUT-HEX

$3.49

$

In Stock, Qty 8

0

11

Toro 39-6660

PINION-BEVEL

$39.99

$

In Stock, only 1 left!

0

12

Toro 29-9330

KEY-SHIFT

$27.99

$

In Stock, only 3 left!

0

13

Toro 29-9340

COLLAR-SHIFT

$40.99

$

Usually ships in 3-6 days

0

14

Toro 42-4740

GEAR-38T

$84.99

$

In Stock, only 2 left!

0

15

Toro 29-9271

GEAR-42T

$88.99

$

Usually ships in 3-6 days

0

16

Toro 60-8870

YOKE-SHIFT

$23.99

$

In Stock, only 2 left!

0

17

Toro 29-9570

BUSHING-YOKE

$11.99

$

In Stock, only 4 left!

0

18

Toro 47-6730

SEAL-OIL

$12.99

$

In Stock, Qty 20+

0

19

Toro 55-8010

SLEEVE-GEAR

$19.99

$

In Stock, only 4 left!

0

20

Toro 39-6720

SLEEVE

$16.99

$

Usually ships in 3-6 days

0

21

Toro 55-8020

RETAINER-KEY

$9.99

$

Usually ships in 3-6 days

0

22

Toro 3285-19

PIN-GROOVE

$2.99

$

In Stock, Qty 7

0

23

Toro 47-7270

BEARING-NEEDLE

$30.99

$

In Stock, only 4 left!

0

24

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

25

Toro 29-9690

WASHER

$13.99

$

Usually ships in 3-6 days

0

26

$79.99

$

In Stock, only 1 left!

0

27

Toro 3257-1

KEY-WOODRUFF

$2.99

$

In Stock, Qty 14

0

28

Toro 48-2060

BEARING-ROLLER
(Superseded to 117-3500)

$5.49

$

In Stock, Qty 16

0

29

Toro 36-4770

WASHER

$6.49

$

Usually ships in 3-6 days

0

30

Toro 252-103

BEARING-NEEDLE, CLOSED

$25.99

$

In Stock, only 2 left!

0

31

Toro 36-4792

WASHER-THRUST

$1.49

$

In Stock, Qty 16

0

32

Toro 39-6650

GEAR-18T

$13.99

$

In Stock, only 2 left!

0

33

Toro 46-3550

GEAR-14T

$21.99

$

Usually ships in 3-6 days

0

34

Toro 46-3540

GEAR-12T

$13.99

$

In Stock, Qty 5

0

35

Toro 74-1760

GEAR-BEVEL

$39.99

$

Usually ships in 3-6 days

0

36

Toro 53-7950

SHAFT-INTERMEDIATE

$53.99

$

In Stock, only 1 left!

0

37

Toro 36-4780

WASHER-PLAIN

$7.99

$

In Stock, only 3 left!

0

39

$2.99

$

In Stock, Qty 13

0

41

$8.49

$

In Stock, only 2 left!

0

42

Toro 302-63

FITTING-GREASE, ZERK

$2.99

$

In Stock, Qty 19

0

44

Toro 74-1750-03

BRACKET-ENGAGE, TRACTION

$13.99

$

Usually ships in 3-6 days

0

45

Toro 3256-45

WASHER-FLAT

$0.99

$

In Stock, only 3 left!

0
