22176 TE - Toro 53cm Heavy-Duty Recycler Walk-Behind Mower (SN: 310000001 - 310999999) (2010) CARBURETOR ASSEMBLY Parts Diagram

53cm Heavy-Duty Recycler Walk-Behind Mower

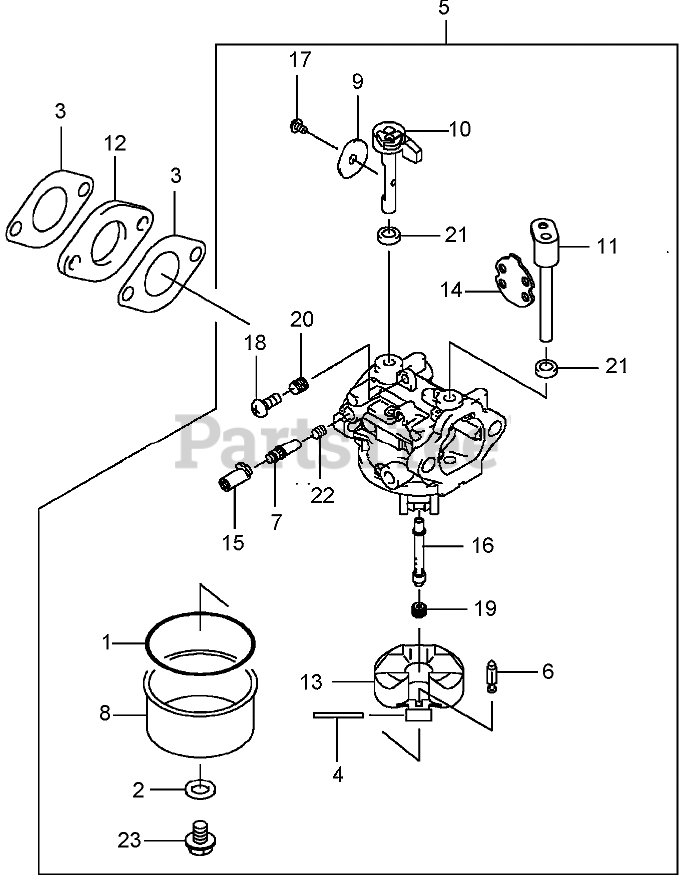

CARBURETOR ASSEMBLY Parts Diagram

  • Title

1

Toro 108-2579

GASKET

$9.49

$

Usually ships in 3-6 days

0

2

Toro 108-2580

GASKET-SCREW

$12.99

$

Usually ships in 3-6 days

0

3

Toro 108-2581

GASKET

$2.49

$

Usually ships in 3-6 days

0

4

Toro 108-2582

SHAFT

$69.99

$

Usually ships in 3-6 days

0

5

Toro 108-2583

CARBURETOR ASM

$415.99

$

Usually ships in 3-6 days

0

6

Toro 108-2584

NEEDLE-JET

$46.99

$

Usually ships in 3-6 days

0

7

Toro 108-2585

SCREW-PILOT, AIR

$

$

Not available

8

Toro 108-2586

CHAMBER-FLOAT

$

$

Not available

9

Toro 108-2587

VALVE-THROTTLE

$36.99

$

Usually ships in 3-6 days

0

10

Toro 108-2588

SHAFT-CARBURETOR

$133.99

$

Usually ships in 3-6 days

0

11

Toro 108-2589

SHAFT-CARBURETOR

$

$

Not available

12

Toro 108-2590

INSULATOR

$6.49

$

Usually ships in 3-6 days

0

13

Toro 108-2591

FLOAT ASM

$85.99

$

Usually ships in 3-6 days

0

14

Toro 108-2592

CHOKE VALVE ASM

$

$

Not available

15

Toro 108-2593

LIMITER

$33.99

$

Usually ships in 3-6 days

0

16

Toro 108-2594

NOZZLE-MAIN

$

$

Not available

17

Toro 108-2595

SCREW

$8.49

$

Usually ships in 3-6 days

0

18

Toro 108-2596

SCREW

$12.99

$

Usually ships in 3-6 days

0

19

Toro 108-2597

JET-MAIN (No.74)

$

$

Not available

20

Toro 108-2598

SPRING

$37.99

$

Usually ships in 3-6 days

0

21

Toro 108-2599

SEAL

$11.99

$

Usually ships in 3-6 days

0

22

Toro 108-2600

SPRING

$9.99

$

Usually ships in 3-6 days

0

23

Toro 108-2601

SCREW

$28.99

$

Usually ships in 3-6 days

0
