22175 - Toro 21" Heavy-Duty Recycler Walk-Behind Mower (SN: 250000001 - 250999999) (2005) ENGINE, FUEL TANK AND BLADE ASSEMBLY Parts Diagram

21" Heavy-Duty Recycler Walk-Behind Mower

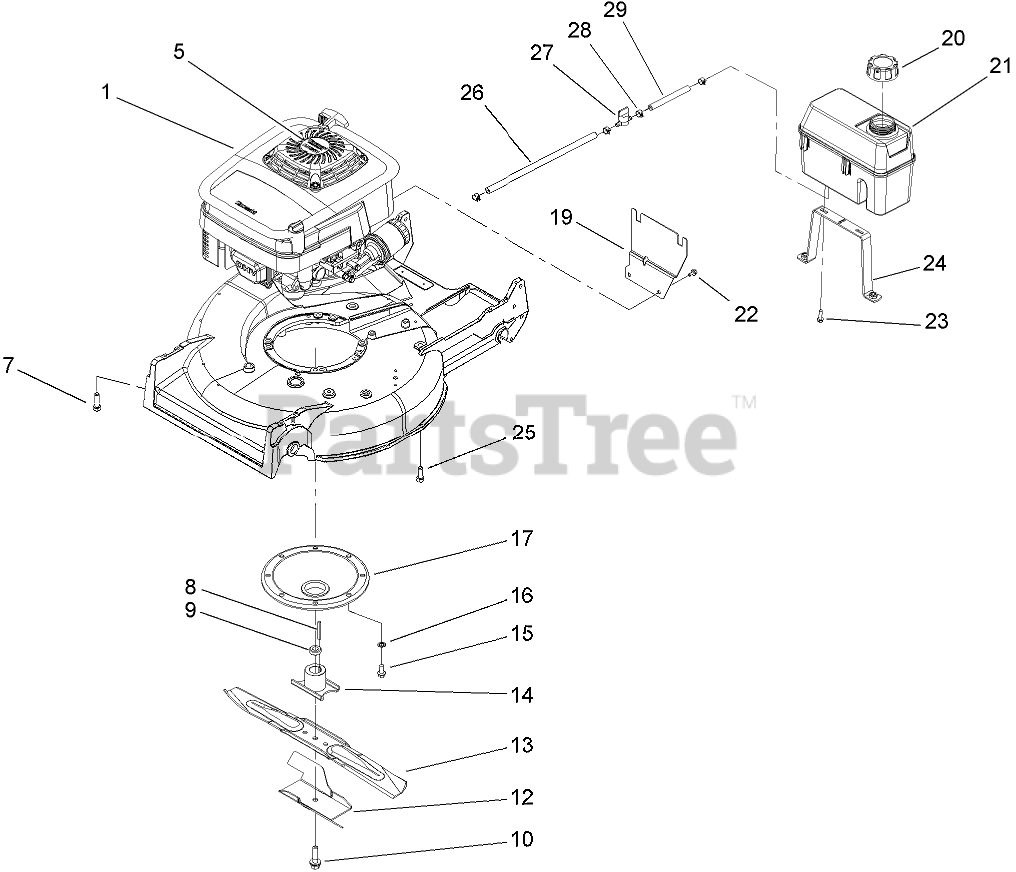

ENGINE, FUEL TANK AND BLADE ASSEMBLY Parts Diagram

  • Title

1

Toro 108-0844

ENGINE-KAWASAKI, FJ180V-CS10S

$

$

Currently unavailable

5

Toro 107-4201

DECAL-RECOIL
(Superseded to 110-0520)

$34.99

$

Usually ships in 3-6 days

0

7

Toro 95-1727

SCREW-TAPTITE

$2.99

$

In Stock, Qty 20+

0

8

Toro 7-0036

KEY-SQUARE

$

$

Not available

9

Toro 103-3795

Spacer-Retainer, Blade

$7.99

$

In Stock, only 4 left!

0

10

Toro 105-8579

BOLT-BLADE
(Superseded to 125-2466)

$3.49

$

In Stock, Qty 20+

0

12

Toro 92-1599-03

STIFFENER-BLADE

$79.99

$

Usually ships in 3-6 days

0

13

Toro 91-2256-03

BLADE-21 INCH

$36.99

$

In Stock, only 1 left!

0

14

Toro 52-2170

RETAINER-BLADE
(Superseded to 52-2170-03)

$75.99

$

In Stock, only 1 left!

0

15

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

16

Toro 3254-6

WASHER-LOCK, INTERNAL

$0.99

$

Usually ships in 3-6 days

0

17

Toro 48-2591

PROTECTOR-CRANKSHAFT
(Superseded to 125-8370)

$104.99

$

Usually ships in 3-6 days

0

19

Toro 106-0908-03

BRACKET-TANK

$21.99

$

Usually ships in 3-6 days

0

20

Toro 93-7198

CAP-GAS

$15.99

$

In Stock, only 1 left!

0

21

Toro 106-0625

Tank-Fuel
(Superseded to 117-3510)

$94.99

$

In Stock, only 3 left!

0

22

Toro 104-2628

SCREW-HWH

$1.99

$

Usually ships in 3-6 days

0

23

Toro 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0

24

Toro 107-4131-03

TANK BASE

$

$

Not available

25

Toro 95-1726

SCREW-TAPTITE

$2.99

$

In Stock, Qty 20+

0

26

Toro 47-2983

HOSE-FUEL
(Superseded to 109-0296)

$10.99

$

In Stock, only 4 left!

0

27

Toro 1-603770

VALVE-FUEL

$8.49

$

In Stock, Qty 7

0

28

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

29

Toro 106-0999

HOSE-GAS
(Superseded to 109-0650)

$7.99

$

In Stock, only 1 left!

0
