22173 - Toro 53cm Heavy-Duty Recycler Walk-Behind Mower (SN: 210000001 - 210999999) (2001) ENGINE AND BLADE BRAKE CLUTCH ASSEMBLY Parts Diagram

53cm Heavy-Duty Recycler Walk-Behind Mower

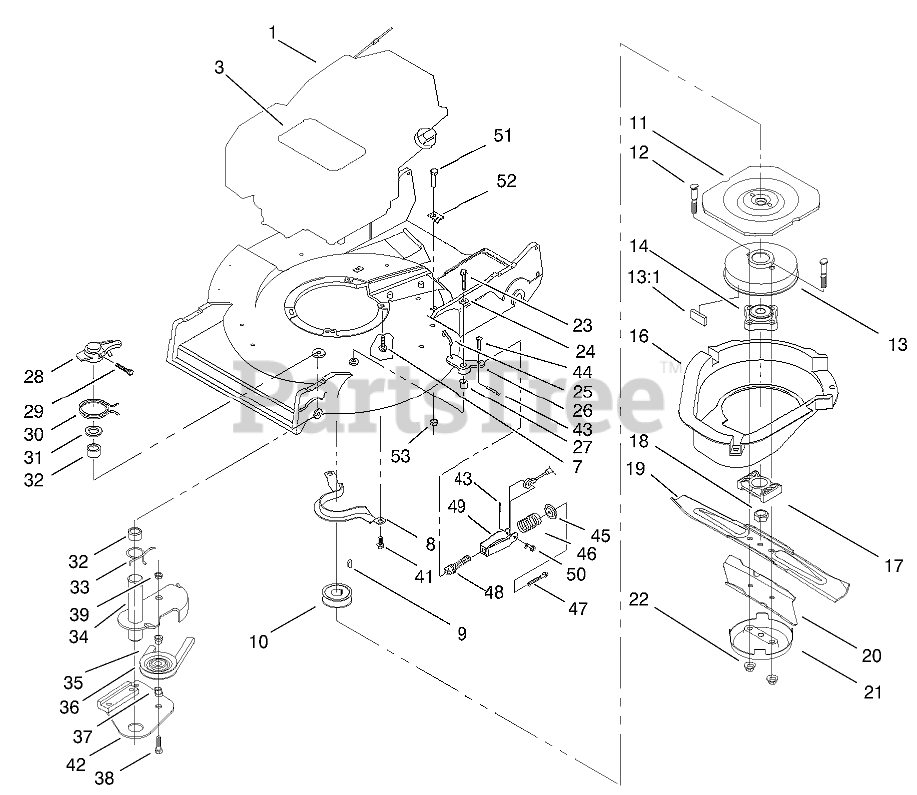

ENGINE AND BLADE BRAKE CLUTCH ASSEMBLY Parts Diagram

  • Title

1

Toro 104-1333

Engine-Kawasaki
(Superseded to 100-6499)

$

$

Not available

3

Toro 104-1335

Decal-Engine

$6.49

$

Usually ships in 3-6 days

0

7

Toro 100-2835

SCREW-MOUNT, ENGINE

$

$

Not available

8

Toro 66-0570-03

BRACKET-GUIDE, BELT

$13.99

$

In Stock, only 2 left!

0

9

Toro 3257-17

KEY-WOODRUFF

$5.49

$

In Stock, only 1 left!

0

10

Toro 56-6180

PULLEY-DRIVER

$51.99

$

In Stock, Qty 9

0

11

Toro 56-6160-03

FLYWHEEL-BBC

$104.99

$

In Stock, only 2 left!

0

12

Toro 42-3190

BOLT-BLADE

$11.99

$

In Stock, Qty 16

0

13

Toro 94-9431

BRAKE DRUM ASM

$44.99

$

In Stock, Qty 13

0

13:1

Toro 52-3480

DAMPENER-VIBRATION

$1.49

$

In Stock, only 1 left!

0

14

Toro 42-6890

HUB ASM

$93.99

$

Usually ships in 3-6 days

0

16

Toro 46-5693

SHIELD

$31.99

$

In Stock, only 1 left!

0

17

Toro 62-4280

SPACER-BLADE
(Superseded to 107-4275)

$23.99

$

Usually ships in 3-6 days

0

18

Toro 603164

NUT-BLADE
(Superseded to 121-3611)

$5.99

$

Usually ships in 3-6 days

0

19

Toro 91-2256-03

BLADE-21 INCH

$31.99

$

In Stock, only 1 left!

0

20

Toro 91-2255-03

STIFFENER-BLADE

$76.99

$

In Stock, Qty 5

0

21

Toro 80-2770

CUP-SCALP, ANTI

$15.99

$

In Stock, only 1 left!

0

22

Toro 54-9190

NUT-LOCK
(Superseded to 127-6852)

$2.99

$

In Stock, Qty 20+

0

23

Toro 32104-107

SCREW-HH

$7.99

$

Usually ships in 3-6 days

0

24

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

25

Toro 49-2810

LINK-CONTROL

$2.99

$

In Stock, only 1 left!

0

26

Toro 49-7960

BELLCRANK

$11.99

$

In Stock, only 1 left!

0

27

Toro 49-7950

SLEEVE-BELLCRANK

$5.49

$

Usually ships in 3-6 days

0

28

Toro 49-2820

LEVER

$11.99

$

In Stock, only 1 left!

0

29

Toro 32104-96

SCREW-HH

$6.49

$

In Stock, Qty 5

0

30

Toro 49-7970

SPRING-TORSION

$8.99

$

Usually ships in 3-6 days

0

31

Toro 70-1160

WASHER

$5.49

$

Usually ships in 3-6 days

0

32

Toro 68-9780

BEARING

$23.99

$

Usually ships in 3-6 days

0

33

Toro 85-6880

SPRING-TORSION

$6.49

$

In Stock, only 1 left!

0

34

Toro 84-9130

ARM-IDLER

$42.99

$

In Stock, only 2 left!

0

35

Toro 42-0884

V-BELT

$17.99

$

In Stock, only 2 left!

0

36

Toro 46-5650

PULLEY-IDLER
(Superseded to 117-5299)

$42.99

$

Usually ships in 3-6 days

0

37

Toro 46-5631

SPACER-PULLEY, IDLER

$2.99

$

Usually ships in 3-6 days

0

38

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

39

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 7

0

41

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

42

Toro 84-9180

BRAKE PLATE ASM
(Superseded to 125-1065)

$25.99

$

Usually ships in 3-6 days

0

43

Toro 3272-1

PIN-COTTER

$0.99

$

In Stock, Qty 16

0

44

Toro 84-9050

PIN-SPRING

$13.99

$

Usually ships in 3-6 days

0

45

Toro 65-5280

RETAINER-SPRING

$3.49

$

Usually ships in 3-6 days

0

46

Toro 84-9100

SPRING

$12.99

$

Usually ships in 3-6 days

0

47

Toro 46-7040

SCREW-HWHTF

$2.99

$

Usually ships in 3-6 days

0

48

Toro 84-8870

GUIDE-SPRING
(Superseded to 106-0842)

$

$

Not available

49

Toro 84-8880-03

BRACKET-SPRING

$

$

Not available

50

Toro 84-9040

PIN-CABLE

$12.99

$

Usually ships in 3-6 days

0

51

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

52

Toro 62-3720

CLAMP-CABLE

$2.99

$

In Stock, only 3 left!

0

53

Toro 3296-58

NUT-LOCK, NI

$2.99

$

In Stock, only 1 left!

0
