22172 - Toro Recycler Walk-Behind Mower (SN: 200000001 - 200999999) (2000) BAGGING ASSEMBLY Parts Diagram

Recycler Walk-Behind Mower

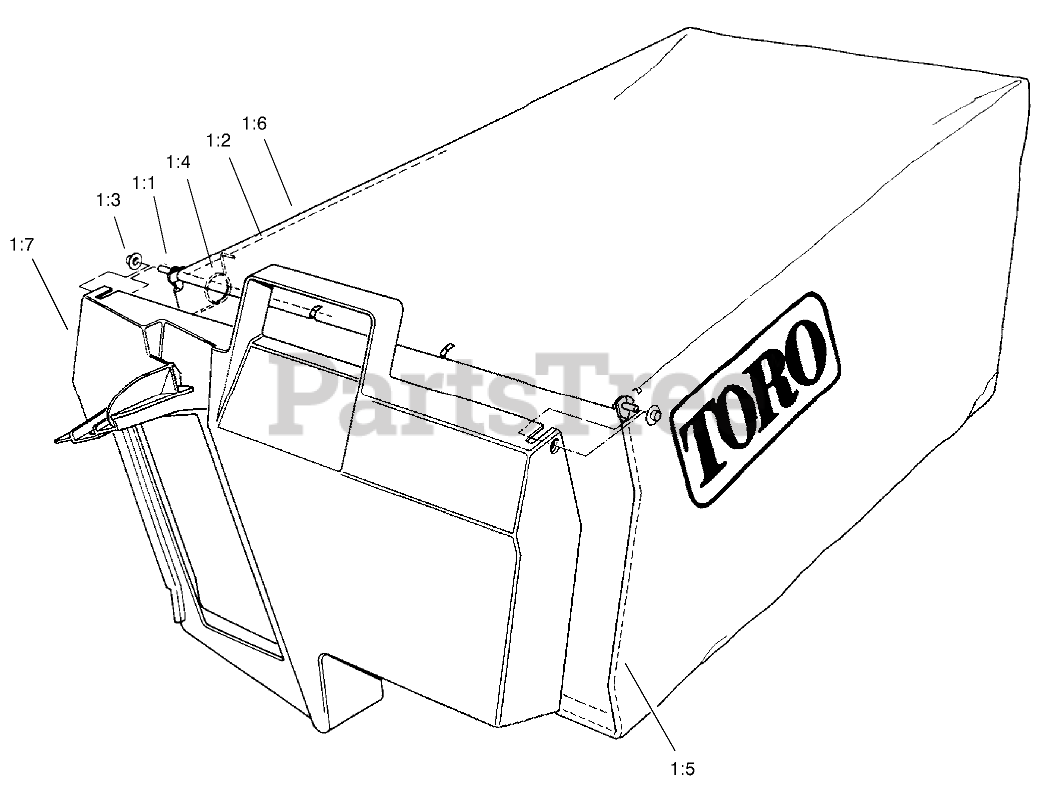

BAGGING ASSEMBLY Parts Diagram

  • Title

Toro 99-2535

GRASS BAG ASM
(Superseded to 121-1391)

Note: Not illustrated

$188.99

$

In Stock, only 2 left!

0

1:1

Toro 33-4820

HINGE-DOOR, BAG

$11.99

$

In Stock, only 3 left!

0

1:2

Toro 42-4030

FRAME-BAG, UPPER
(Superseded to 121-1388)

$25.99

$

Usually ships in 3-6 days

0

1:3

Toro 3290-422

NUT-PUSH

$2.99

$

In Stock, Qty 20+

0

1:4

Toro 36-6910

SPRING

$11.99

$

In Stock, only 2 left!

0

1:5

Toro 42-4020

FRAME-BAG

$76.99

$

Usually ships in 3-6 days

0

1:6

Toro 98-9222

Bag-Grass
(Superseded to 106-0926)

$73.99

$

Usually ships in 3-6 days

0

1:7

Toro 48-2840

DOOR-BAG, GRASS
(Superseded to 121-1389)

$45.99

$

In Stock, only 1 left!

0

2:1

Hub & Brg ASM

Note: Not illustrated

$

$

Not available

2

Wheel ASM Sp

Note: Not illustrated

$

$

Not available
