22172 - Toro Recycler Walk-Behind Mower (SN: 099000001 - 099999999) (1999) PANEL & CONTROLS ASSEMBLY Parts Diagram

Recycler Walk-Behind Mower

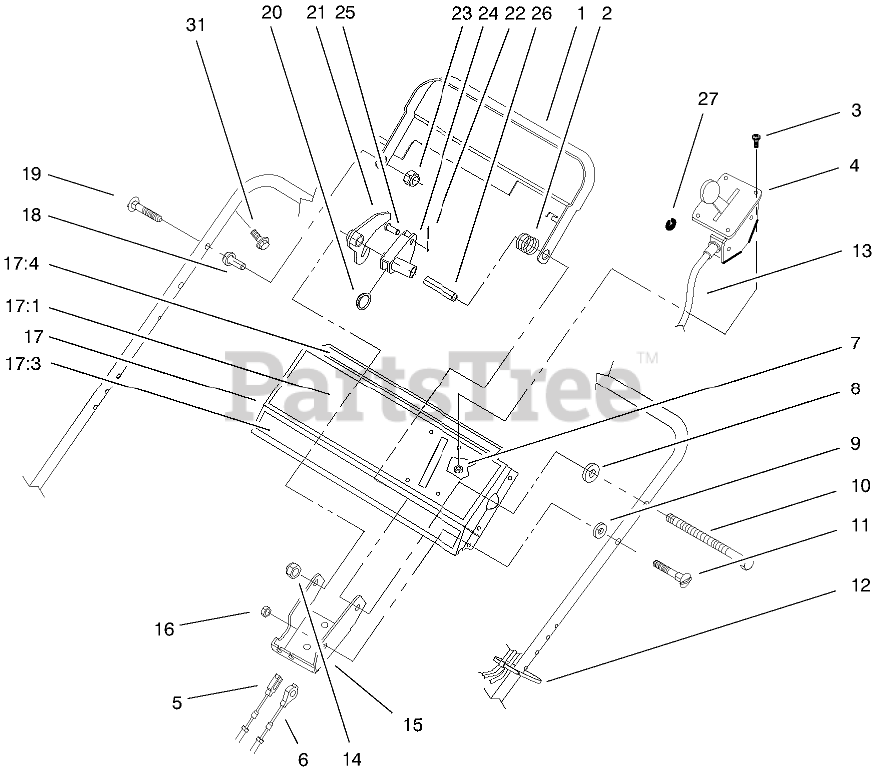

PANEL & CONTROLS ASSEMBLY Parts Diagram

  • Title
1

Toro 84-8940-03

BAR-CONTROL

$116.99

$

Usually ships in 3-6 days

0

2

Toro 85-6750

SPRING-CONTROL

$10.99

$

Usually ships in 3-6 days

0

3

Toro 3250-12

SCREW-PPH

$0.99

$

Usually ships in 3-6 days

0

4

Toro 85-6770

CONTROL-THROTTLE

$83.99

$

Usually ships in 3-6 days

0

5

Toro 84-9120

CABLE-TRACTION

$68.99

$

In Stock, Qty 5

0

6

Toro 84-9110

CABLE-CLUTCH

$92.99

$

In Stock, Qty 5

0

7

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

8

Toro 71-9310

SPACER

$2.99

$

Usually ships in 3-6 days

0

9

Toro 71-9320

SPACER

$2.99

$

Usually ships in 3-6 days

0

10

Toro 322-19

SCREW-HH

$6.49

$

In Stock, only 1 left!

0

11

Toro 46-6430

SCREW-HANDLE

$11.99

$

Usually ships in 3-6 days

0

12

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

13

Toro 100-2839

CABLE-THROTTLE

$43.99

$

In Stock, only 4 left!

0

14

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

15

Toro 92-1778-03

BRACKET-CONTROL

$18.99

$

Usually ships in 3-6 days

0

16

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 9

0

17

Toro 14-7709

PANEL ASM

$100.99

$

Usually ships in 3-6 days

0

17:1

Toro 85-6730

DECAL-CONTROL PANEL

$

$

Not available

17:3

Toro 85-6720

DECAL-PANEL, PROLINE
(Superseded to 106-0771)

$18.99

$

Usually ships in 3-6 days

0

17:4

Toro 63-9060

DECAL-PANEL, DANGER

$

$

Not available

18

Toro 49-1631

SPACER-SUPPORT

$6.49

$

In Stock, only 1 left!

0

19

Toro 17-9427

SCREW

$8.99

$

Usually ships in 3-6 days

0

20

Toro 86-9320

BUSHING-FLANGE

$9.49

$

Usually ships in 3-6 days

0

21

Toro 84-9000

LEVER-TRACTION

$25.99

$

Usually ships in 3-6 days

0

22

Toro 3272-1

PIN-COTTER

$0.99

$

In Stock, Qty 16

0

23

Toro 3296-58

NUT-LOCK, NI

$2.99

$

In Stock, only 1 left!

0

24

Toro 84-8990

LEVER-BBC

$28.99

$

Usually ships in 3-6 days

0

25

Toro 84-9040

PIN-CABLE

$12.99

$

Usually ships in 3-6 days

0

26

Toro 84-9030

SPACER-BRACKET, CONTROL

$44.99

$

Usually ships in 3-6 days

0

27

Toro 32151-86

E-RING

$2.99

$

In Stock, Qty 20+

0

31

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0
