22172 - Toro Recycler Walk-Behind Mower (SN: 099000001 - 099999999) (1999) FRONT TIRE & WHEEL ASSEMBLY Parts Diagram

Recycler Walk-Behind Mower

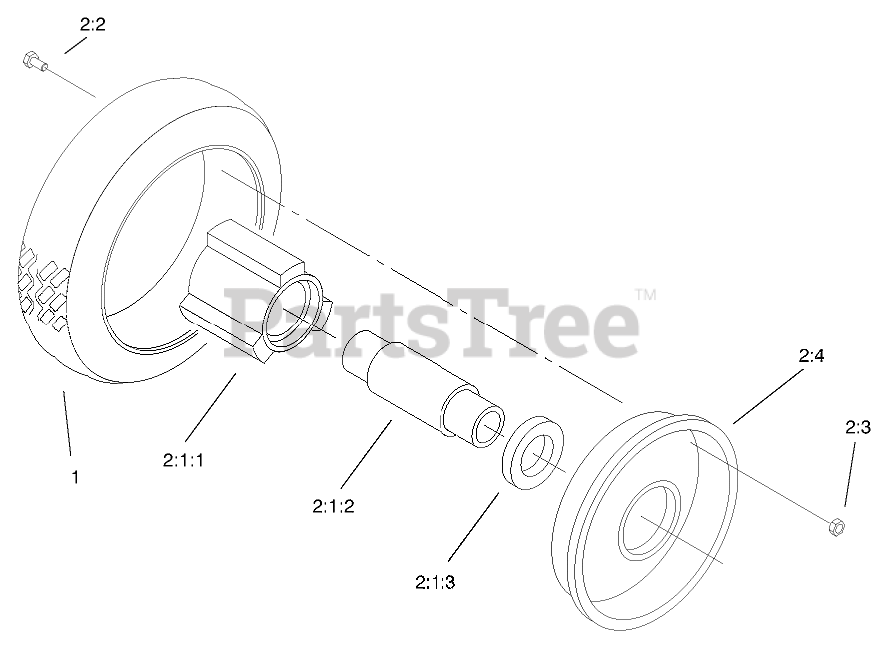

FRONT TIRE & WHEEL ASSEMBLY Parts Diagram

  • Title
1

$34.99

$

In Stock, only 3 left!

0

2:1:1

Toro 52-2410

HUB-BEARING

$33.99

$

In Stock, Qty 14

0

2:1:2

Toro 52-2440

SPACER-BEARING

$9.49

$

In Stock, Qty 5

0

2:1:3

Toro 52-2450

BEARING-WHEEL

$18.99

$

In Stock, Qty 20+

0

2:2

Toro 321-2

SCREW-HH

$3.49

$

In Stock, only 1 left!

0

2:3

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 12

0

2:4

Toro 53-7780-06

PLATE-WHEEL, HALF
(Superseded to 121-1365-06)

$19.99

$

In Stock, only 2 left!

0

2:1

Hub & Brg ASM

Note: Not illustrated

$

$

Not available

2

Wheel ASM HP

Note: Not illustrated

$

$

Not available
