22171 - Toro Recycler Walk-Behind Mower (SN: 200000001 - 200999999) (2000) CYLINDER/CRANKCASE Parts Diagram

Recycler Walk-Behind Mower

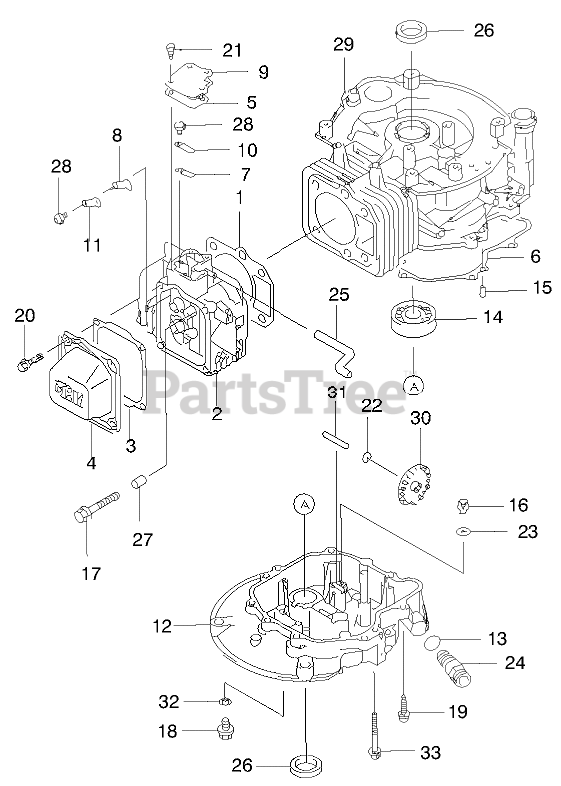

CYLINDER/CRANKCASE Parts Diagram

  • Title

1

Toro 100-2742

GASKET-HEAD

$

$

Not available

2

Toro 100-2743

HEAD-CYLINDER, COMPLETE

$

$

Not available

3

Toro 100-2744

GASKET-CASE, ROCKER

$

$

Not available

4

Toro 100-2745

CASE-ROCKER

$

$

Not available

5

Toro 100-2746

COVER-GASKET

$

$

Not available

6

Toro 100-2747

GASKET-COVER, CRANKCASE

$

$

Not available

7

Toro 100-2748

PLATE

$

$

Not available

8

Toro 100-2749

PLATE

$

$

Not available

9

Toro 100-2779

COVER

$

$

Not available

10

Toro 100-2780

VALVE

$

$

Not available

11

Toro 100-2781

VALVE

$

$

Not available

12

Toro 100-2782

COVER-CRANKCASE

$

$

Not available

13

Toro 100-2840

O-RING

$

$

Not available

14

Toro 100-2841

BEARING-BALL

$

$

Not available

15

Toro 93-8516

PIN-DOWEL (6X12)

$1.49

$

Usually ships in 3-6 days

0

16

Toro 100-2842

BOLT

$

$

Not available

17

Toro KW10035

BOLT-FLANGED

$

$

Not available

18

Toro KW10033

BOLT-FLANGED

$

$

Not available

19

Toro 100-2610

BOLT-FLANGED (6X25)

$2.99

$

Usually ships in 3-6 days

0

20

Toro 100-2804

BOLT-FLANGED

$2.99

$

Usually ships in 3-6 days

0

21

Toro 100-2609

BOLT-FLANGED

$

$

Not available

22

Toro 100-2843

WASHER

$

$

Not available

23

Toro 100-2844

WASHER

$2.49

$

In Stock, Qty 5

0

24

Toro 100-2854

PLUG

$

$

Not available

25

Toro 100-2846

TUBE

$

$

Not available

26

Toro 100-2847

SEAL-OIL

$27.99

$

Usually ships in 3-6 days

0

27

Toro 100-2848

PIN

$

$

Not available

28

Toro 93-8549

SCREW

$

$

Not available

29

Toro 100-2849

CRANKCASE-COMPLETE

$1670.99

$

Usually ships in 3-6 days

0

30

Toro 99-6728

SLINGER-OIL

$

$

Not available

31

Toro 99-6729

SHAFT

$

$

Not available

32

Toro 99-6730

GASKET

$

$

Not available

33

Toro 100-2855

BOLT-FLANGED

$

$

Not available
