22171 - Toro Recycler Walk-Behind Mower (SN: 099000001 - 099999999) (1999) LUBRICATION EQUIPMENT Parts Diagram

Recycler Walk-Behind Mower

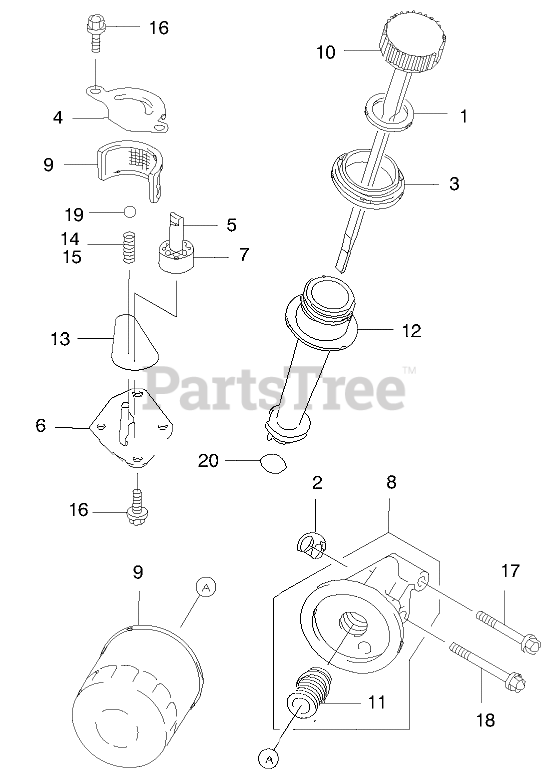

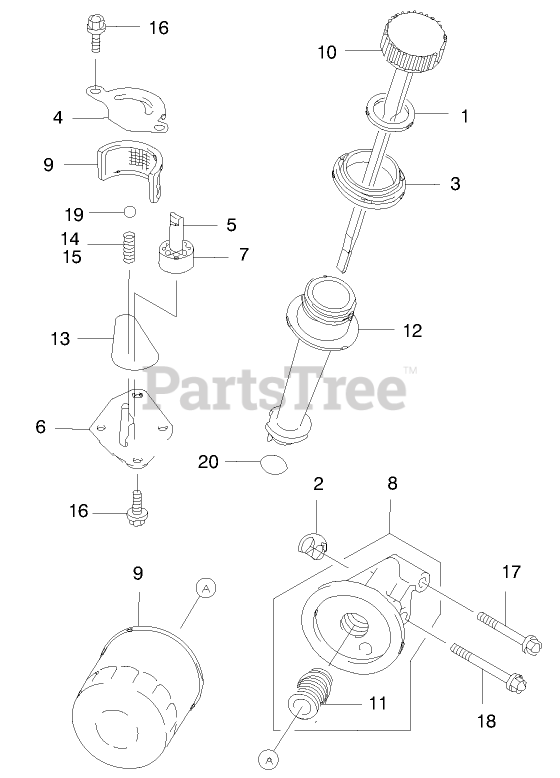

LUBRICATION EQUIPMENT Parts Diagram

  • Title
1

Toro KW10010

GASKET

$

$

Not available

2

Toro 100-2644

GASKET

$7.99

$

Usually ships in 3-6 days

0

3

$

$

Not available

4

$

$

Not available

5

Toro 100-2643

PUMP ASM OIL

$

$

Not available

6

Toro 100-2646

COVER PUMP

$

$

Not available

7

Toro 100-2647

ROTOR PUMP

$

$

Not available

8

Toro 100-2648

PIPE COMPLETE

$

$

Not available

9

Toro 100-2649

FILTER - SCREEN

$

$

Not available

10

$

$

Not available

11

Toro 95-9715

JOINT

$19.99

$

Usually ships in 3-6 days

0

12

Toro 100-2689

FILLER

$

$

Not available

13

Toro 100-2801

RING O

$

$

Not available

14

Toro 100-2802

SPRING
(Superseded to 100-2803)

$

$

Not available

15

Toro 100-2803

SPRING

$

$

Not available

16

Toro 100-2804

BOLT-FLANGED

$2.99

$

Usually ships in 3-6 days

0

17

Toro 100-2805

BOLT-FLANGED (6X40)

$

$

Not available

18

Toro 100-2806

BOLT-FLANGED

$

$

Not available

19

Toro 100-2807

BALL-STEEL

$

$

Not available

20

Toro 100-2690

O-RING (16MM)

$6.49

$

Usually ships in 3-6 days

0
