22171 - Toro Recycler Walk-Behind Mower (SN: 099000001 - 099999999) (1999) ENGINE & BLADE ASSEMBLY Parts Diagram

Recycler Walk-Behind Mower

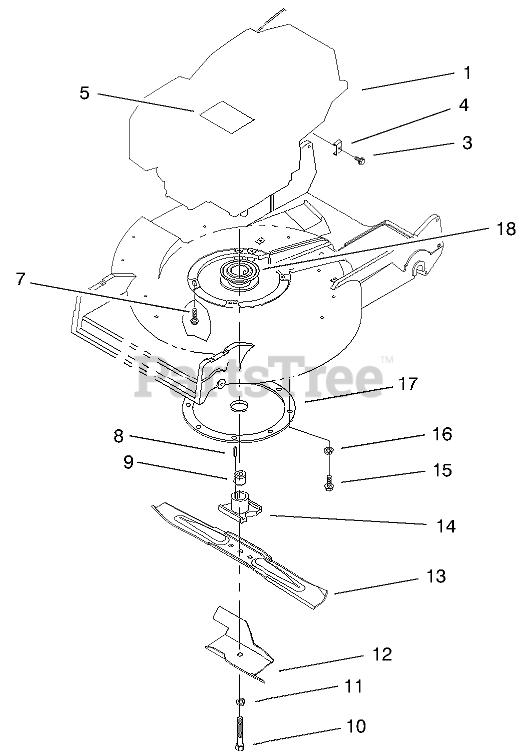

ENGINE & BLADE ASSEMBLY Parts Diagram

  • Title

1

Engine-4cyc Zs (Kawasaki)T209

$

$

Not available

3

Toro 95-9853

BOLT (5X18)

$1.49

$

Usually ships in 3-6 days

0

4

Toro 95-9849

CLAMP

$

$

Not available

5

Toro 99-6297

DECAL-ENGINE

$

$

Not available

7

Toro 100-2835

SCREW-MOUNT, ENGINE

$

$

Not available

8

Toro 27-6300

KEY-SQUARE

$6.49

$

In Stock, only 1 left!

0

9

Toro 99-6279

SPACER-BLADE RETAINER

$13.99

$

Usually ships in 3-6 days

0

10

Toro 26-0670

SCREW-BLADE

$

$

Not available

11

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

12

Toro 92-1599-03

STIFFENER-BLADE

$79.99

$

Usually ships in 3-6 days

0

13

Toro 14-9419

Blade
(Superseded to 91-2256-03)

$36.99

$

In Stock, only 1 left!

0

14

Toro 99-6283

Retainer-Blade
(Superseded to 99-6283-03)

$70.99

$

In Stock, only 1 left!

0

15

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 16

0

16

Toro 3254-6

WASHER-LOCK, INTERNAL

$0.99

$

Usually ships in 3-6 days

0

17

Toro 65-5860

PROTECTOR-CRANKSHAFT
(Superseded to 125-8370)

$104.99

$

Usually ships in 3-6 days

0

18

Toro 100-1586

PULLEY-DRIVER

$85.99

$

Usually ships in 3-6 days

0
