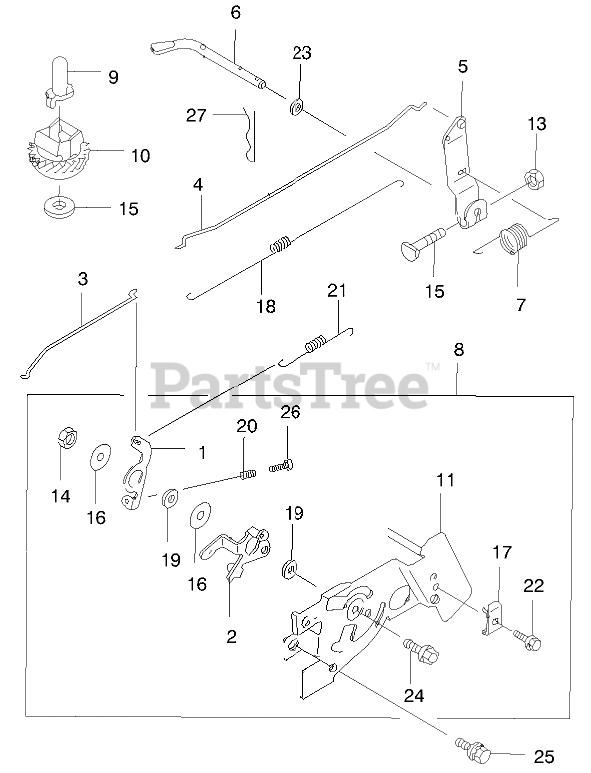

22171 - Toro Recycler Walk-Behind Mower (SN: 099000001 - 099999999) (1999) CONTROL EQUIPMENT Parts Diagram

Recycler Walk-Behind Mower

CONTROL EQUIPMENT Parts Diagram

  • Title

1

Toro 100-2700

LEVER

$

$

Not available

2

Toro 100-2701

LEVER

$

$

Not available

3

Toro 100-2702

LINK-CHOKE

$

$

Not available

4

Toro 100-2703

LINK

$

$

Not available

5

Toro 100-2704

ARM ASM

$

$

Not available

6

Toro 100-2705

ARM-PIVOT

$

$

Not available

7

Toro 100-2706

SPRING-GOVERNOR

$

$

Not available

8

Toro 100-2707

CONTROL PANEL ASM

$

$

Not available

9

Toro 100-2708

SLEEVE
(Superseded to 93-8610)

$

$

Not available

10

Toro 93-8611

GOVERNOR ASM

$

$

Not available

11

Toro 100-2710

PANEL-CONTROL

$

$

Not available

12

Toro 93-8608

WASHER (6.5X11.5X2.0)

$2.49

$

Usually ships in 3-6 days

0

13

Toro 93-8631

NUT
(Superseded to 119-5954)

$11.99

$

In Stock, only 1 left!

0

14

Toro 93-8595

NUT

$1.49

$

In Stock, only 1 left!

0

15

Toro 94-6842

WASHER (6.2X20X0.5)
(Superseded to 93-8612)

$1.99

$

Usually ships in 3-6 days

0

16

Toro 100-2715

WASHER

$

$

Not available

17

Toro 95-9849

CLAMP

$

$

Not available

18

Toro 100-2717

LINK-SPRING

$

$

Not available

19

Toro 100-2718

COLLAR

$

$

Not available

20

Toro 93-8588

SPRING

$

$

Not available

22

Toro 95-9853

BOLT (5X18)

$1.49

$

Usually ships in 3-6 days

0

23

Toro 93-8608

WASHER (6.5X11.5X2.0)

$2.49

$

Usually ships in 3-6 days

0

24

Toro 95-9837

BOLT-FLANGED (6X16)

$

$

Not available

25

Toro 100-2724

BOLT

$

$

Not available

26

Toro 100-2725

SCREW-PAN

$

$

Not available

27

Toro 93-8607

PIN-SNAP (1.2X21.2)

$

$

Not available
