22170 - Toro Recycler Walk-Behind Mower (SN: 200000001 - 200999999) (2000) ELECTRIC EQUIPMENT Parts Diagram

Recycler Walk-Behind Mower

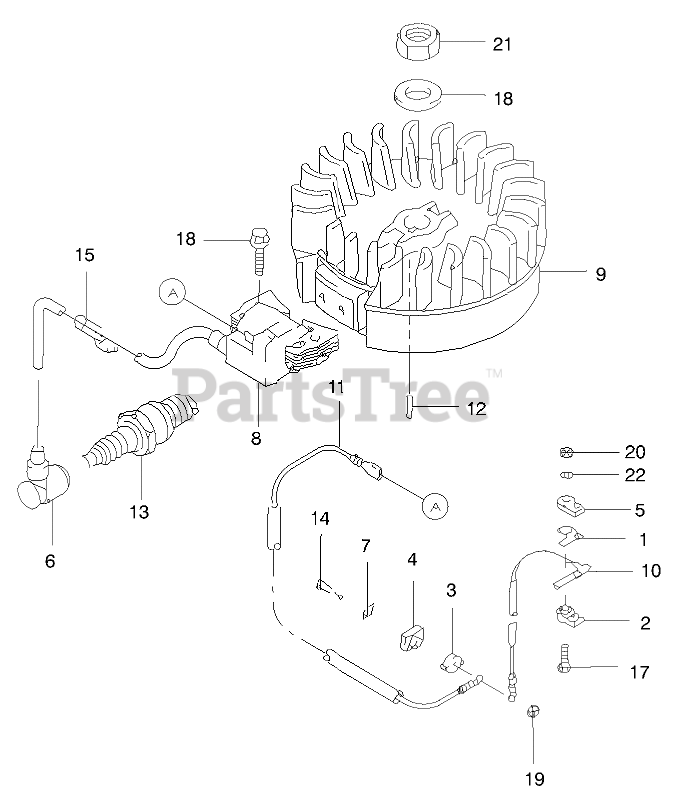

ELECTRIC EQUIPMENT Parts Diagram

  • Title

1

Toro 100-2650

PLATE

$

$

Not available

2

Toro 100-2651

COVER

$

$

Not available

3

Toro 100-2652

COVER

$

$

Not available

4

Toro 100-2653

INSULATOR

$

$

Not available

5

Toro 100-2654

INSULATOR

$

$

Not available

6

Toro KW10087

CAP-SPARKPLUG

$49.99

$

Usually ships in 3-6 days

0

7

Toro 100-2656

TERMINAL

$

$

Not available

8

Toro 100-2657

IGNITION COIL ASM

$

$

Not available

9

Toro 100-2658

FLYWHEEL-COMPLETE

$

$

Not available

10

Toro 100-2659

WIRE LEAD

$

$

Not available

11

Toro 100-2660

WIRE-LEAD

$

$

Not available

12

Toro 93-8571

KEY

$5.99

$

Usually ships in 3-6 days

0

13

Toro KW10676

SPARK PLUG

$3.49

$

In Stock, Qty 20+

0

14

Toro 100-2663

BOLT

$

$

Not available

15

Toro 100-2664

CLAMP

$

$

Not available

16

Toro 100-2665

WASHER

$

$

Not available

17

Toro 100-2666

BOLT UPSET

$

$

Not available

18

Toro 100-2610

BOLT-FLANGED (6X25)

$2.99

$

Usually ships in 3-6 days

0

19

Toro 100-2668

NUT-HEX (4MM)

$

$

Not available

20

Toro 100-2669

NUT HEX

$

$

Not available

21

Toro 93-8568

NUT-HEX, FINE (14MM)

$

$

Not available

22

Toro 100-2671

WASHER PLAIN S

$

$

Not available
