22168 - Toro 21" Heavy-Duty Recycler Walk-Behind Mower (SN: 260000001 - 260999999) (2006) MUFFLER ASSEMBLY HONDA GXV160A1 T1AH Parts Diagram

21" Heavy-Duty Recycler Walk-Behind Mower

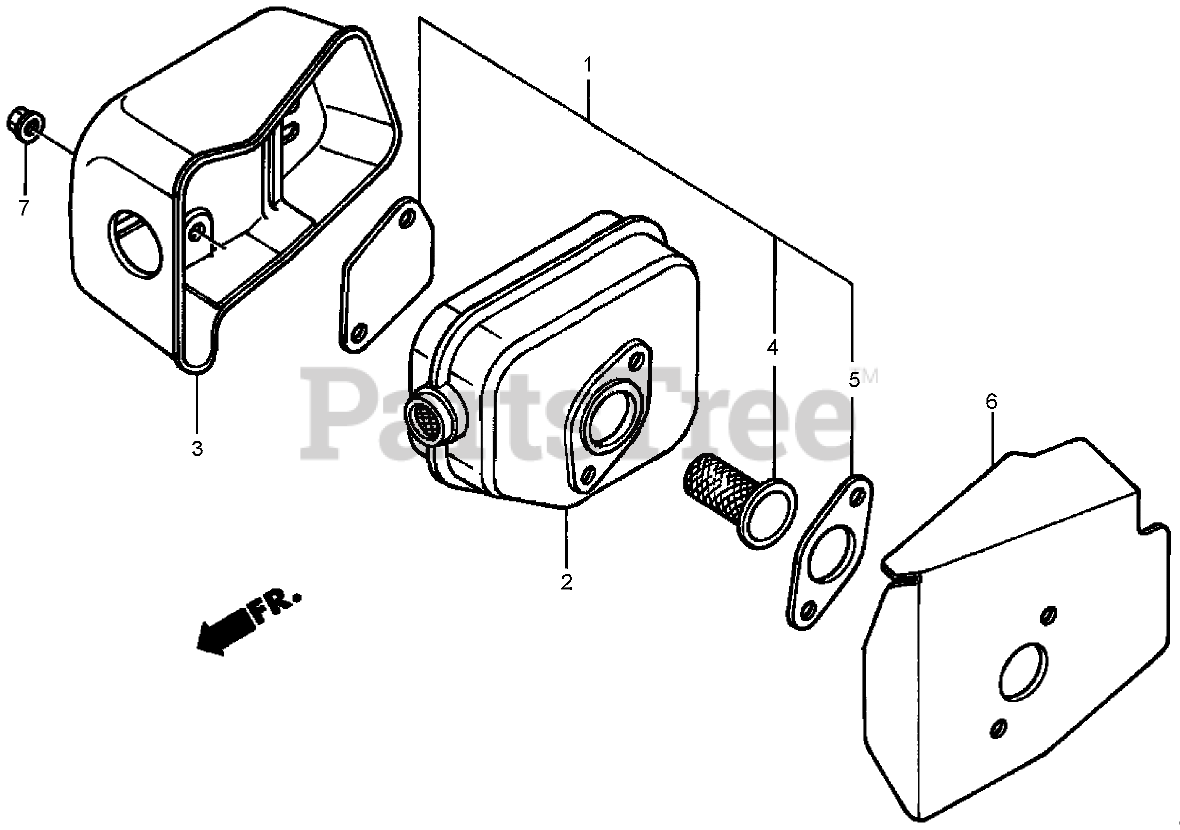

MUFFLER ASSEMBLY HONDA GXV160A1 T1AH Parts Diagram

  • Title
1

Honda 06180-ZE6-820

SPARK ARRESTER KIT

Note: Obtain parts from www.honda-engines.com

$29.99

$

In Stock, only 1 left!

0

2

Honda 18310-ZG9-J01

Muffler

Note: Obtain parts from www.honda-engines.com

$71.99

$

In Stock, only 1 left!

0

3

Honda 18320-ZG9-M01

Protector-Muffler

Note: Obtain parts from www.honda-engines.com

$13.99

$

In Stock, only 1 left!

0

4

Honda 06180-888-505

SPARK ARRESTER KIT

Note: Obtain parts from www.honda-engines.com

$19.99

$

Usually ships in 3-6 days

0

4

Toro 06180-888-810

SPARK Arrester Kit

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

5

Honda 18381-ZE6-820

Gasket-Muffler

Note: Obtain parts from www.honda-engines.com

$4.99

$

In Stock, Qty 7

0

6

Honda 18381-ZG9-M00

Gasket-Muffler

Note: Obtain parts from www.honda-engines.com

$5.99

$

In Stock, Qty 5

0

7

Honda 90343-ZE6-000

NUT-LOCK, SELF (6 mm)

Note: Obtain parts from www.honda-engines.com

$2.49

$

In Stock, Qty 20+

0
