22168 - Toro 21" Heavy-Duty Recycler Walk-Behind Mower (SN: 260000001 - 260999999) (2006) LOWER HANDLE ASSEMBLY Parts Diagram

21" Heavy-Duty Recycler Walk-Behind Mower

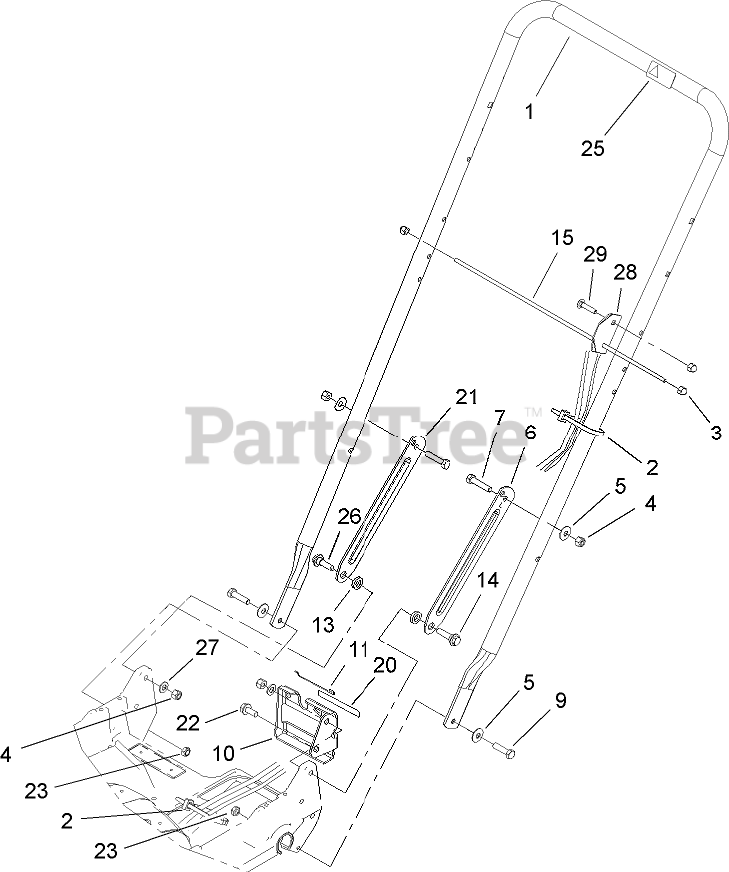

LOWER HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 98-2385-03

HANDLE

$149.99

$

In Stock, only 1 left!

0

2

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

3

Toro 32111-7

NUT-CAP

$7.99

$

In Stock, only 2 left!

0

4

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

5

Toro 3290-456

WASHER-BELLEVILLE

$2.99

$

In Stock, Qty 20+

0

6

Toro 100-3298-03

LATCH-HANDLE, LH

$19.99

$

In Stock, only 2 left!

0

7

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

9

Toro 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

10

Toro 74-1741

BRACKET-ADJUSTMENT, TRACTION

$24.99

$

Usually ships in 3-6 days

0

11

Toro 46-7030

RETAINER-CABLE

$6.49

$

In Stock, only 2 left!

0

13

Toro 3-3287

SPACER

$5.49

$

In Stock, Qty 16

0

14

Toro 27-7210

SCREW-SHOULDER

$7.99

$

In Stock, only 1 left!

0

15

Toro 48-2810

ROD-SUPPORT, BAG

$31.99

$

Usually ships in 3-6 days

0

20

Toro 74-1970

DECAL-POSITION, GEAR

$6.99

$

In Stock, Qty 6

0

21

Toro 100-3297-03

LATCH-HANDLE, RH

$9.49

$

In Stock, Qty 5

0

22

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

23

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 20+

0

25

Toro 98-4387

DECAL-PROTECTION, EAR

$7.49

$

In Stock, Qty 8

0

26

Toro 27-7211

SCREW-SHOULDER

$5.49

$

In Stock, Qty 11

0

27

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

28

Toro 104-1326

PLATE-ALIGNING, BAG

$21.99

$

Usually ships in 3-6 days

0

29

Toro 3229-3

SCREW-CARR

$5.49

$

Usually ships in 3-6 days

0
