22168 - Toro 21" Heavy-Duty Recycler Walk-Behind Mower (SN: 260000001 - 260999999) (2006) CARBURETOR ASSEMBLY HONDA GXV160A1 T1AH Parts Diagram

21" Heavy-Duty Recycler Walk-Behind Mower

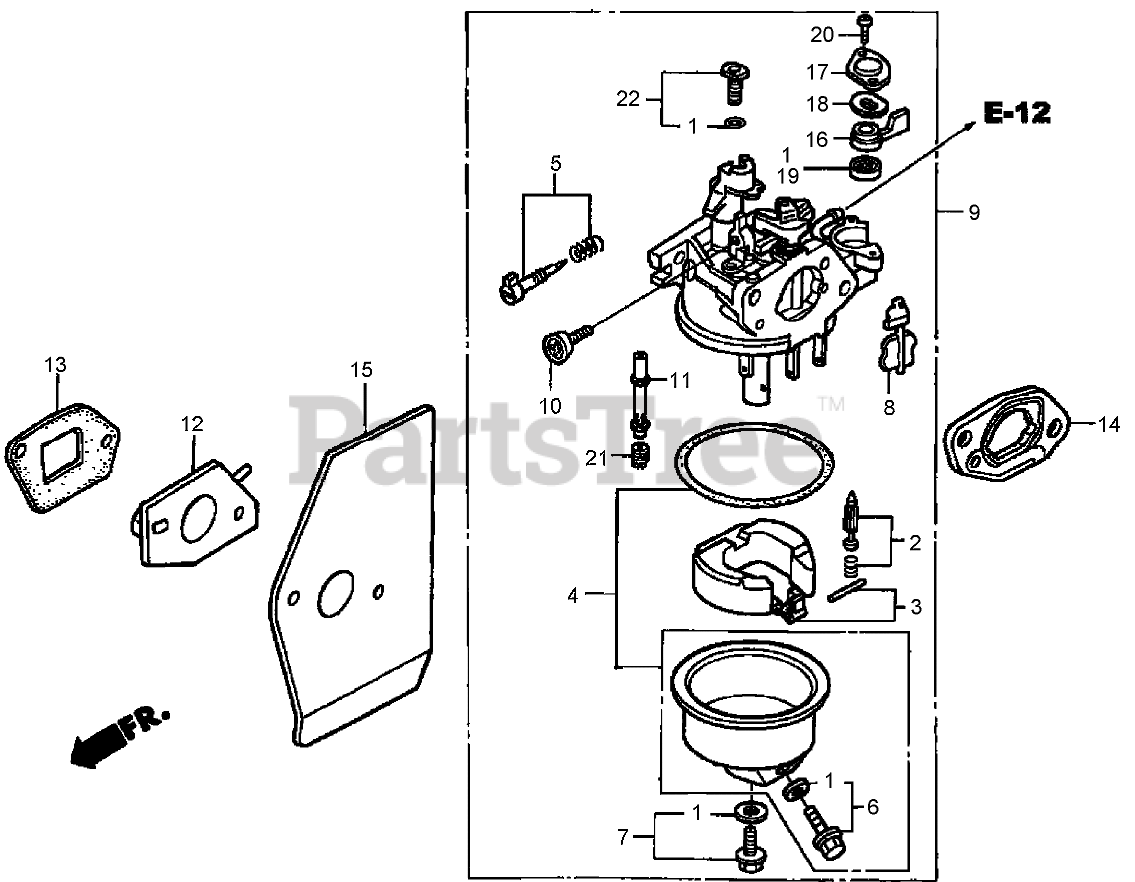

CARBURETOR ASSEMBLY HONDA GXV160A1 T1AH Parts Diagram

  • Title

1

Toro 10060-ZE0-025

Gasket Set

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

2

Honda 16011-ZE0-005

FLOAT VALVE SET

Note: Obtain parts from www.honda-engines.com

$30.99

$

In Stock, only 1 left!

0

3

Honda 16013-ZE0-005

Float Set

Note: Obtain parts from www.honda-engines.com

$31.99

$

In Stock, only 1 left!

0

4

Honda 16015-ZE0-831

FLOAT CHAMBER SET

Note: Obtain parts from www.honda-engines.com

$38.99

$

In Stock, only 2 left!

0

5

Honda 16016-ZH7-W01

PILOT SCREW SET

Note: Obtain parts from www.honda-engines.com

$21.99

$

In Stock, only 1 left!

0

6

Honda 16024-ZE1-811

DRAIN SCREW SET

Note: Obtain parts from www.honda-engines.com

$10.99

$

In Stock, only 3 left!

0

7

Honda 16028-ZE0-005

SCREW SET
(Superseded to 16028-ZK7-S91)

Note: Obtain parts from www.honda-engines.com

$13.99

$

In Stock, only 1 left!

0

8

Honda 16045-ZE7-005

Choke Set

Note: Obtain parts from www.honda-engines.com

$35.99

$

Usually ships in 3-6 days

0

9

Honda 16100-ZE7-W21

CARBURETOR ASM

Note: Obtain parts from www.honda-engines.com

$115.99

$

Usually ships in 3-6 days

0

10

Honda 16124-ZE0-005

SCREW- STOP, THROTTLE

Note: Obtain parts from www.honda-engines.com

$17.99

$

In Stock, only 1 left!

0

11

Honda 16166-ZE7-W10

Nozzle-Main

Note: Obtain parts from www.honda-engines.com

$32.99

$

Usually ships in 3-6 days

0

12

Honda 16211-ZE7-000

Insulator-Carburetor

Note: Obtain parts from www.honda-engines.com

$16.99

$

In Stock, only 2 left!

0

13

Honda 16212-ZE7-M10

Gasket-Insulator

Note: Obtain parts from www.honda-engines.com

$3.49

$

In Stock, Qty 11

0

14

Honda 16220-ZE6-010

Spacer-Carburetor

Note: Obtain parts from www.honda-engines.com

$8.49

$

In Stock, Qty 8

0

15

Honda 16221-ZE7-M11

Gasket-Carburetor

Note: Obtain parts from www.honda-engines.com

$17.99

$

In Stock, only 3 left!

0

16

Honda 16953-ZE1-812

LEVER-PETCOCK

Note: Obtain parts from www.honda-engines.com

$10.99

$

In Stock, Qty 10

0

17

Honda 16954-ZE1-812

PLATE-SETTING, LEVER

Note: Obtain parts from www.honda-engines.com

$4.49

$

In Stock, only 1 left!

0

18

Honda 16956-ZE1-811

SPRING-LEVER, PETCOCK

Note: Obtain parts from www.honda-engines.com

$4.49

$

Usually ships in 3-6 days

0

19

Honda 16957-ZE1-812

GASKET-PETCOCK

Note: Obtain parts from www.honda-engines.com

$4.49

$

In Stock, Qty 20+

0

20

Honda 93500-03006-0H

SCREW-PAN (3X6)

Note: Obtain parts from www.honda-engines.com

$1.49

$

In Stock, only 3 left!

0

21

Toro 99101-ZH8-0600

JET-MAIN (No. 60)

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

21

Toro 99101-ZH8-0620

JET-MAIN (No. 62)

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

21

Toro 99101-ZH8-0650

JET-MAIN (No. 65)

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

22

Honda 99204-ZE0-0350

PILOT JET SET (No. 35)

Note: Obtain parts from www.honda-engines.com

$23.99

$

In Stock, only 2 left!

0
