22168 - Toro 21" Heavy-Duty Recycler Walk-Behind Mower (SN: 240000001 - 240999999) (2004) RECOIL STARTER ASSEMBLY HONDA GXV160K1-N1AH Parts Diagram

21" Heavy-Duty Recycler Walk-Behind Mower

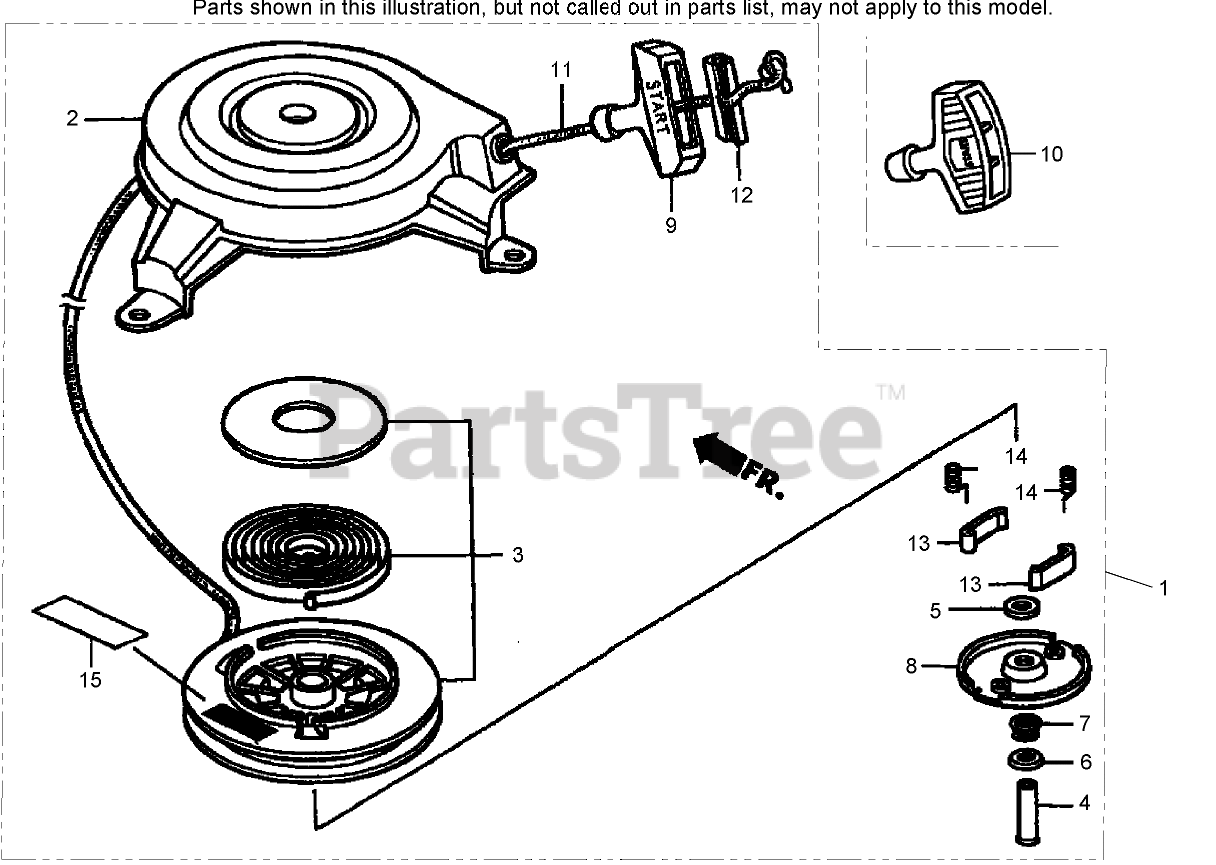

RECOIL STARTER ASSEMBLY HONDA GXV160K1-N1AH Parts Diagram

  • Title

1

Honda 28400-ZG9-803

RECOIL STARTER ASM

Note: Obtain parts from www.honda-engines.com

$139.99

$

In Stock, only 1 left!

0

2

Toro 28402-ZG9-802

HOUSING ASM

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

3

Honda 28415-ZG9-802

PULLEY AND SPRING ASM

Note: Obtain parts from www.honda-engines.com

$21.99

$

Usually ships in 3-6 days

0

4

Honda 28419-ZG9-802

Pin-Center

Note: Obtain parts from www.honda-engines.com

$2.49

$

In Stock, only 2 left!

0

5

Honda 28431-ZG9-802

Plate A-Friction

Note: Obtain parts from www.honda-engines.com

$6.49

$

Usually ships in 3-6 days

0

6

Honda 28432-ZG9-802

PLATE B-FRICTION

Note: Obtain parts from www.honda-engines.com

$6.99

$

Usually ships in 3-6 days

0

7

Honda 28441-ZG9-802

Spring-Friction

Note: Obtain parts from www.honda-engines.com

$

$

Not available

8

Honda 28444-ZG9-802

Retainer

Note: Obtain parts from www.honda-engines.com

$2.99

$

In Stock, only 2 left!

0

9

Honda 28461-ZE6-T02

Handle

Note: Obtain parts from www.honda-engines.com

$5.99

$

In Stock, only 4 left!

0

11

Honda 28462-ZG9-802

ROPE-STARTER, RECOIL

Note: Obtain parts from www.honda-engines.com

$11.99

$

In Stock, only 1 left!

0

12

Honda 28463-ZE6-T02

Handle-Reinforcement

Note: Obtain parts from www.honda-engines.com

$5.49

$

In Stock, only 3 left!

0

13

Honda 28485-ZE6-T02

Ratchet-Starter

Note: Obtain parts from www.honda-engines.com

$3.49

$

Usually ships in 3-6 days

0

14

Honda 28486-ZE6-T02

Spring-Dog

Note: Obtain parts from www.honda-engines.com

$2.99

$

In Stock, only 2 left!

0
