22167 - Toro 21" Heavy-Duty Recycler Walk-Behind Mower (SN: 260000001 - 260999999) (2006) CYLINDER BARREL ASSEMBLY HONDA GXV160K1-A1T Parts Diagram

21" Heavy-Duty Recycler Walk-Behind Mower

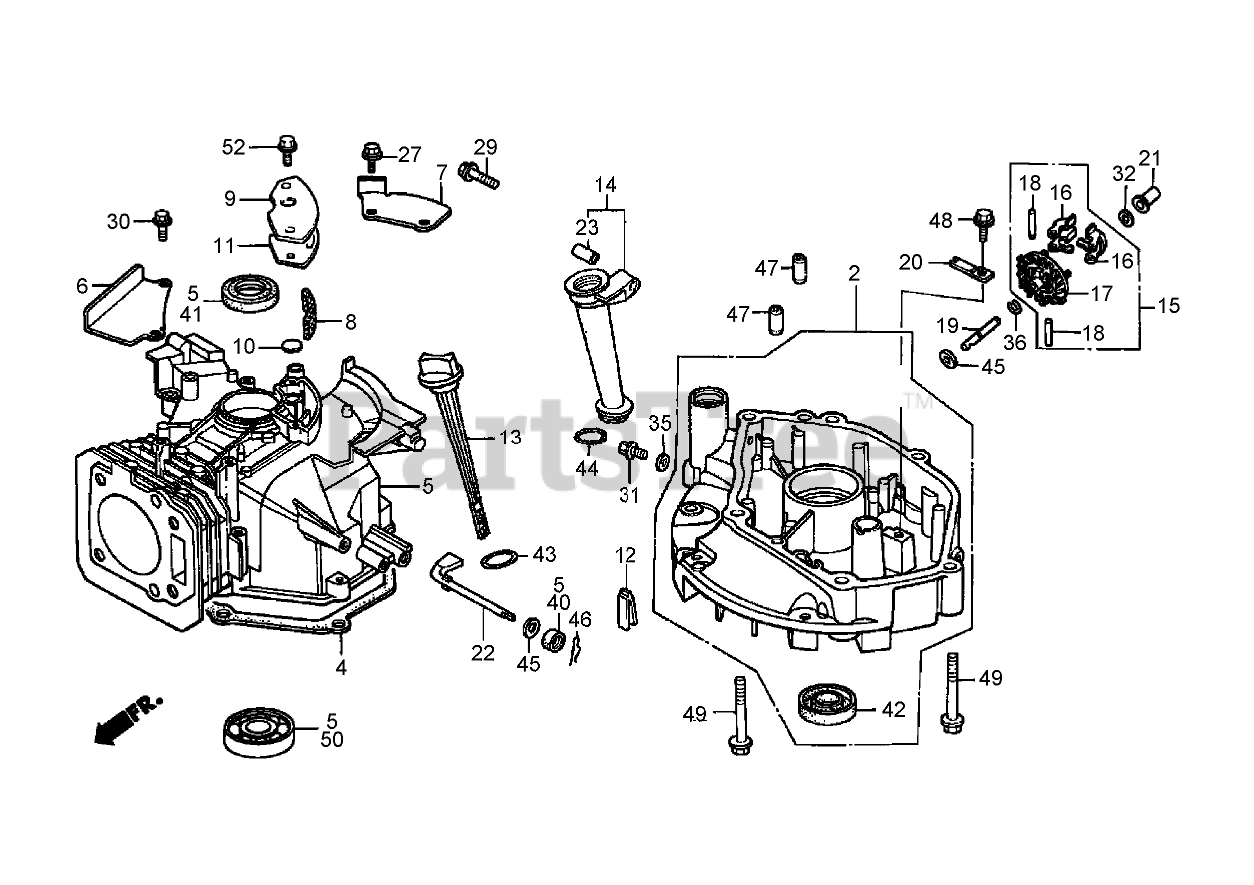

CYLINDER BARREL ASSEMBLY HONDA GXV160K1-A1T Parts Diagram

  • Title

2

Toro 11300-ZE7-408

OIL PAN ASM

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

4

Honda 11381-ZE7-M10

GASKET-PAN, OIL

Note: Obtain parts from www.honda-engines.com

$15.99

$

Usually ships in 3-6 days

0

5

Toro 12000-ZE7-405

CYLINDER ASM

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

6

Honda 12125-ZE7-000

Plate-Guide

Note: Obtain parts from www.honda-engines.com

$10.99

$

Usually ships in 3-6 days

0

7

Honda 12126-ZE7-W00

Plate A-Guide

Note: Obtain parts from www.honda-engines.com

$7.49

$

Usually ships in 3-6 days

0

8

Honda 12367-883-003

Filter-Breather

Note: Obtain parts from www.honda-engines.com

$3.99

$

Usually ships in 3-6 days

0

9

Honda 12370-ZE7-000

Cover-Breather

Note: Obtain parts from www.honda-engines.com

$10.99

$

Usually ships in 3-6 days

0

10

Honda 12372-ZE7-000

VALVE-BREATHER

Note: Obtain parts from www.honda-engines.com

$4.99

$

Usually ships in 3-6 days

0

11

Honda 12373-ZE7-000

GASKET-COVER, BREATHER

Note: Obtain parts from www.honda-engines.com

$3.49

$

Usually ships in 3-6 days

0

12

Honda 15335-ZE7-000

RUBBER-RETURN, OIL

Note: Obtain parts from www.honda-engines.com

$4.49

$

Usually ships in 3-6 days

0

13

Honda 15620-ZE6-810

Dipstick-Oil

Note: Obtain parts from www.honda-engines.com

$12.99

$

In Stock, only 1 left!

0

14

Honda 15630-ZE6-810

EXTENSION-FILLER, OIL (106 mm)

Note: Obtain parts from www.honda-engines.com

$54.99

$

In Stock, only 1 left!

0

15

Honda 16510-ZE6-000

GOVERNOR ASM

Note: Obtain parts from www.honda-engines.com

$24.99

$

In Stock, only 1 left!

0

16

Honda 16511-ZE1-000

Weight-Governor

Note: Obtain parts from www.honda-engines.com

$3.99

$

Usually ships in 3-6 days

0

17

Honda 16512-ZE6-000

HOLDER-WEIGHT, GOVERNOR

Note: Obtain parts from www.honda-engines.com

$15.99

$

Usually ships in 3-6 days

0

18

Honda 16513-ZE1-000

PIN-WEIGHT, GOVERNOR

Note: Obtain parts from www.honda-engines.com

$2.49

$

Usually ships in 3-6 days

0

19

Honda 16515-ZE6-010

SHAFT-HOLDER, GOVERNOR

Note: Obtain parts from www.honda-engines.com

$7.49

$

Usually ships in 3-6 days

0

20

Honda 16525-ZE6-010

Plate-HOLDER, Governor Shaft

Note: Obtain parts from www.honda-engines.com

$6.99

$

Usually ships in 3-6 days

0

21

Honda 16531-ZE1-000

SLIDER-GOVERNOR

Note: Obtain parts from www.honda-engines.com

$3.49

$

In Stock, only 1 left!

0

22

Honda 16541-ZE7-000

SHAFT-ARM, GOVERNOR

Note: Obtain parts from www.honda-engines.com

$15.99

$

Usually ships in 3-6 days

0

23

Honda 17240-ZE6-000

Collar-Extension

Note: Obtain parts from www.honda-engines.com

$4.99

$

In Stock, only 1 left!

0

27

Honda 90013-883-000

BOLT-FLANGE (6X12) (C T200)

Note: Obtain parts from www.honda-engines.com

$1.99

$

In Stock, Qty 20+

0

29

Honda 90017-883-000

Bolt-Flange (6X32)

Note: Obtain parts from www.honda-engines.com

$3.49

$

In Stock, only 1 left!

0

30

Honda 90022-888-010

BOLT-FLANGE (6X20) (C T200)

Note: Obtain parts from www.honda-engines.com

$2.99

$

In Stock, only 2 left!

0

31

Honda 90131-ZE1-000

Bolt-PLUG, Drain

Note: Obtain parts from www.honda-engines.com

$3.49

$

In Stock, only 1 left!

0

32

Honda 90451-ZE1-000

WASHER-THRUST (6MM)

Note: Obtain parts from www.honda-engines.com

$1.99

$

In Stock, Qty 5

0

35

Honda 90601-ZE1-000

WASHER-PLUG, DRAIN (102MM)

Note: Obtain parts from www.honda-engines.com

$1.49

$

In Stock, Qty 20+

0

36

Honda 90602-ZE1-000

CLIP-HOLDER, GOVERNOR

Note: Obtain parts from www.honda-engines.com

$1.99

$

In Stock, Qty 6

0

40

Honda 91231-891-003

SEAL-OIL (6X11X4)

Note: Obtain parts from www.honda-engines.com

$2.99

$

In Stock, only 1 left!

0

41

Honda 91201-ZG9-U71

SEAL-OIL (25X38X7)

Note: Obtain parts from www.honda-engines.com

$4.99

$

In Stock, Qty 7

0

41

Honda 91252-888-003

SEAL-OIL (25X38X7) (ARAI)
(Superseded to 91201-ZG9-U71)

Note: Obtain parts from www.honda-engines.com

$4.99

$

In Stock, Qty 7

0

42

Honda 91252-894-004

SEAL-OIL (25.4X40X7)

Note: Obtain parts from www.honda-engines.com

$13.99

$

In Stock, only 1 left!

0

43

Honda 91301-ZE9-003

O-Ring (22.5X2.2)

Note: Obtain parts from www.honda-engines.com

$2.49

$

In Stock, Qty 12

0

44

Honda 91301-805-000

O-Ring (26X2.7)

Note: Obtain parts from www.honda-engines.com

$4.99

$

In Stock, only 1 left!

0

45

Honda 94101-06800

WASHER-PLAIN (6MM)

Note: Obtain parts from www.honda-engines.com

$0.99

$

In Stock, Qty 20+

0

46

Honda 94251-08000

PIN-LOCK (8MM)

Note: Obtain parts from www.honda-engines.com

$1.99

$

In Stock, Qty 13

0

47

Honda 94301-08140

Pin-Dowel (8X14)

Note: Obtain parts from www.honda-engines.com

$2.99

$

In Stock, Qty 8

0

48

Honda 95701-06012-08

Bolt-Flange (6X12)

Note: Obtain parts from www.honda-engines.com

$2.49

$

In Stock, only 1 left!

0

49

Honda 95701-08050-00

BOLT-FLANGE (8X50)

Note: Obtain parts from www.honda-engines.com

$3.49

$

In Stock, Qty 5

0

50

Honda 96100-62050-00

BEARING-BALL, RADIAL (6205)

Note: Obtain parts from www.honda-engines.com

$24.99

$

In Stock, only 3 left!

0

52

Honda 90014-952-000

BOLT-FLANGE (6X14) (C T200)

Note: Obtain parts from www.honda-engines.com

$2.99

$

In Stock, only 4 left!

0
