22167 - Toro 21" Heavy-Duty Recycler Walk-Behind Mower (SN: 250000001 - 250999999) (2005) FLYWHEEL ASSEMBLY HONDA GXV160K1-A1T Parts Diagram

21" Heavy-Duty Recycler Walk-Behind Mower

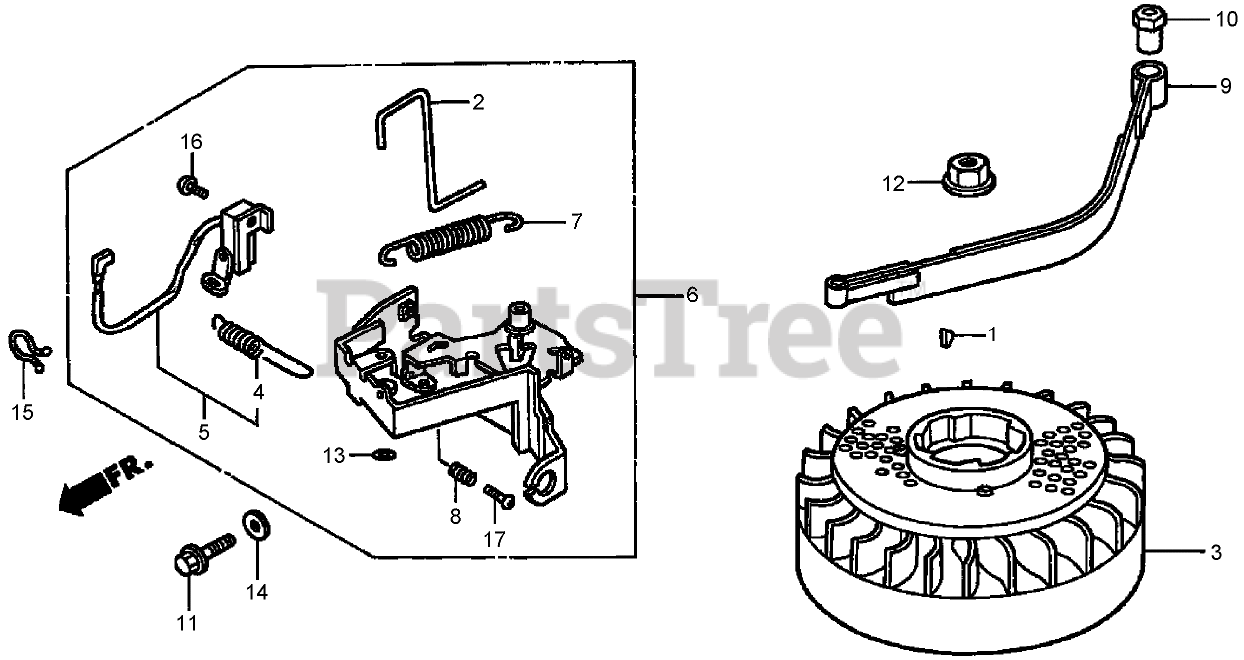

FLYWHEEL ASSEMBLY HONDA GXV160K1-A1T Parts Diagram

  • Title
1

Honda 13331-357-000

KEY-WOODRUFF, SPECIAL (25X18)

Note: Obtain parts from www.honda-engines.com

$4.99

$

In Stock, Qty 7

0

2

Honda 16566-ZE7-W00

Rod-Governor Arm, Return

Note: Obtain parts from www.honda-engines.com

$

$

Not available

3

Honda 31105-ZE7-W00

Flywheel Asm

Note: Obtain parts from www.honda-engines.com

$33.99

$

Usually ships in 3-6 days

0

4

Honda 35129-ZG9-800

Spring-Switch, Control

Note: Obtain parts from www.honda-engines.com

$4.99

$

Usually ships in 3-6 days

0

5

Honda 36100-ZE7-W01

Engine Stop Switch Asm

Note: Obtain parts from www.honda-engines.com

$

$

Not available

6

Honda 75101-ZE7-W00

Brake Lever Asm

Note: Obtain parts from www.honda-engines.com

$138.99

$

Usually ships in 3-6 days

0

7

Honda 75113-ZG9-800

Spring-Brake, Lever

Note: Obtain parts from www.honda-engines.com

$5.99

$

Usually ships in 3-6 days

0

8

Honda 75114-ZG9-800

Spring-Brake, Adjusting

Note: Obtain parts from www.honda-engines.com

$4.49

$

Usually ships in 3-6 days

0

9

Honda 75120-ZG9-305

Brake

Note: Obtain parts from www.honda-engines.com

$40.99

$

Usually ships in 3-6 days

0

10

Honda 75123-ZG9-800

Collar-Brake, Shaft

Note: Obtain parts from www.honda-engines.com

$12.99

$

Usually ships in 3-6 days

0

11

Honda 90014-952-000

BOLT-FLANGE (6X14) (C T200)

Note: Obtain parts from www.honda-engines.com

$2.99

$

In Stock, only 4 left!

0

12

Honda 90201-878-003

NUT-SPECIAL (14 mm)

Note: Obtain parts from www.honda-engines.com

$7.99

$

Usually ships in 3-6 days

0

13

Honda 90310-ZB7-701

Nut-Push (2.6)

Note: Obtain parts from www.honda-engines.com

$2.99

$

Usually ships in 3-6 days

0

14

Honda 90461-357-000

Washer-Sealing (6.5X12)
(Superseded to 90463-KRM-840)

Note: Obtain parts from www.honda-engines.com

$1.99

$

Usually ships in 3-6 days

0

15

Honda 90630-ZE7-W01

Clip-Purse, Lock

Note: Obtain parts from www.honda-engines.com

$1.49

$

Usually ships in 3-6 days

0

16

Honda 93500-04008-0A

Screw-Pan (4X8)

Note: Obtain parts from www.honda-engines.com

$1.49

$

In Stock, only 4 left!

0

17

Honda 93500-05012-0A

Screw-Pan (5X12)

Note: Obtain parts from www.honda-engines.com

$1.49

$

In Stock, Qty 8

0
