22167 - Toro 21" Heavy-Duty Recycler Walk-Behind Mower (SN: 230000001 - 230999999) (2003) CAMSHAFT ASSEMBLY HONDA GXV160K1 A1 Parts Diagram

21" Heavy-Duty Recycler Walk-Behind Mower

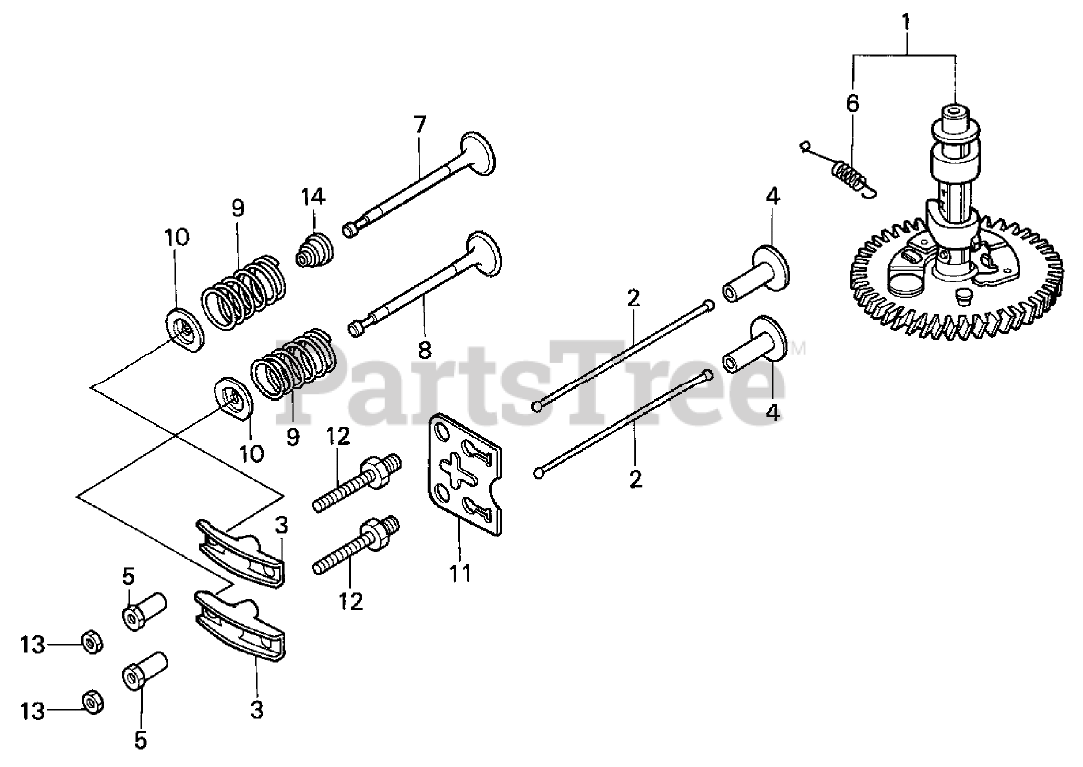

CAMSHAFT ASSEMBLY HONDA GXV160K1 A1 Parts Diagram

  • Title

1

Honda 14100-ZE7-000

CAMSHAFT ASM

Note: Obtain Parts From Honda

$121.99

$

Usually ships in 3-6 days

0

2

Toro 144100-ZE1-010

Rod-Push

Note: Obtain Parts From Honda

$

$

Currently unavailable

3

Honda 14431-ZE1-000

ARM-ROCKER, VALVE

Note: Obtain Parts From Honda

$7.99

$

In Stock, only 2 left!

0

4

Honda 14441-ZE1-010

Lifter-Valve

Note: Obtain Parts From Honda

$14.99

$

Usually ships in 3-6 days

0

5

Honda 14451-ZE1-013

PIVOT-ARM, ROCKER
(Superseded to 14451-Z4M-000)

Note: Obtain Parts From Honda

$5.99

$

In Stock, Qty 7

0

6

Honda 14568-ZE1-000

SPRING-RETURN, WEIGHT

Note: Obtain Parts From Honda

$3.49

$

In Stock, only 2 left!

0

7

Honda 14711-ZF1-000

VALVE-INTAKE

Note: Obtain Parts From Honda

$20.99

$

Usually ships in 3-6 days

0

8

Honda 14721-ZE7-000

VALVE-EXHAUST

Note: Obtain Parts From Honda

$35.99

$

In Stock, only 2 left!

0

9

Honda 14751-ZE1-000

Spring-Valve

Note: Obtain Parts From Honda

$3.99

$

In Stock, only 3 left!

0

10

Honda 14771-ZE1-000

RETAINER-SPRING, VALVE (INTAKE)
(Superseded to 14771-Z0T-900)

Note: Obtain Parts From Honda

$1.49

$

In Stock, Qty 16

0

11

Honda 14791-ZE1-010

Plate-GUIDE, Push Rod

Note: Obtain Parts From Honda

$4.49

$

Usually ships in 3-6 days

0

12

Honda 90012-ZE0-010

BOLT-PIVOT (8 mm)

Note: Obtain Parts From Honda

$8.49

$

In Stock, only 2 left!

0

13

Honda 90206-ZE1-000

NUT-ADJUSTING, PIVOT

Note: Obtain Parts From Honda

$4.49

$

In Stock, Qty 8

0

14

Honda 12209-ZE6-003

SEAL-STEM, VALVE

Note: Obtain Parts From Honda

$4.49

$

In Stock, only 2 left!

0
