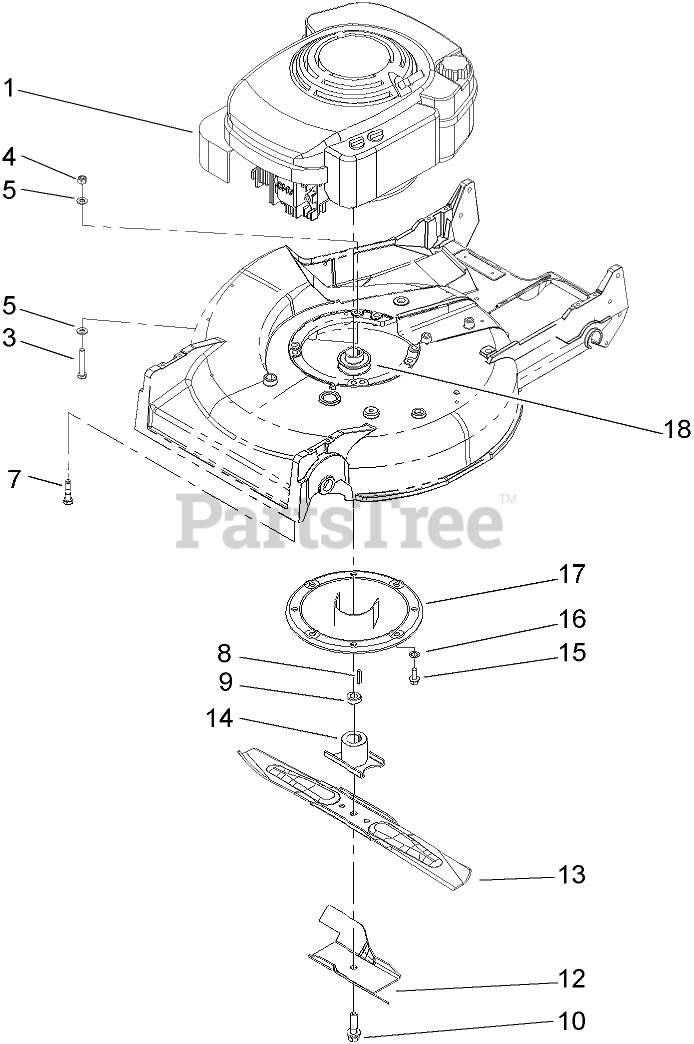

22167 TE - Toro 53cm Heavy-Duty Recycler Walk-Behind Mower (SN: 250000001 - 250999999) (2005) ENGINE ASSEMBLY Parts Diagram

53cm Heavy-Duty Recycler Walk-Behind Mower

ENGINE ASSEMBLY Parts Diagram

  • Title

1

ENGINE-HONDA, GXV 160K1A1T

Note: Not serviced separately

$

$

Not available

1

ENGINE-HONDA, GXV 160K1A1T

Note: Obtain parts from www.honda-engines.com

$

$

Not available

3

Toro 322-10

SCREW-HH

$0.99

$

In Stock, Qty 7

0

4

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

5

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

7

Toro 103-2678

SCREW-SHOULDER

$6.49

$

In Stock, Qty 10

0

8

Toro 5-1077

KEY-SQUARE

$6.49

$

In Stock, only 4 left!

0

9

Toro 103-3795

Spacer-Retainer, Blade

$7.99

$

In Stock, only 4 left!

0

10

Toro 105-8579

BOLT-BLADE
(Superseded to 125-2466)

$3.49

$

In Stock, Qty 20+

0

12

Toro 92-1599-03

STIFFENER-BLADE

$76.99

$

Usually ships in 3-6 days

0

13

Toro 91-2256-03

BLADE-21 INCH

$31.99

$

In Stock, only 1 left!

0

14

Toro 52-2170

RETAINER-BLADE
(Superseded to 52-2170-03)

$72.99

$

In Stock, only 1 left!

0

15

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

16

Toro 3254-6

WASHER-LOCK, INTERNAL

$0.99

$

Usually ships in 3-6 days

0

17

Toro 65-5860

PROTECTOR-CRANKSHAFT
(Superseded to 125-8370)

$101.99

$

Usually ships in 3-6 days

0

18

Toro 46-7910

PULLEY-DRIVER

$36.99

$

In Stock, only 2 left!

0
