22166 - Toro 21" Heavy-Duty Recycler Walk-Behind Mower (SN: 240000001 - 240999999) (2004) HANDLE ASSEMBLY Parts Diagram

21" Heavy-Duty Recycler Walk-Behind Mower

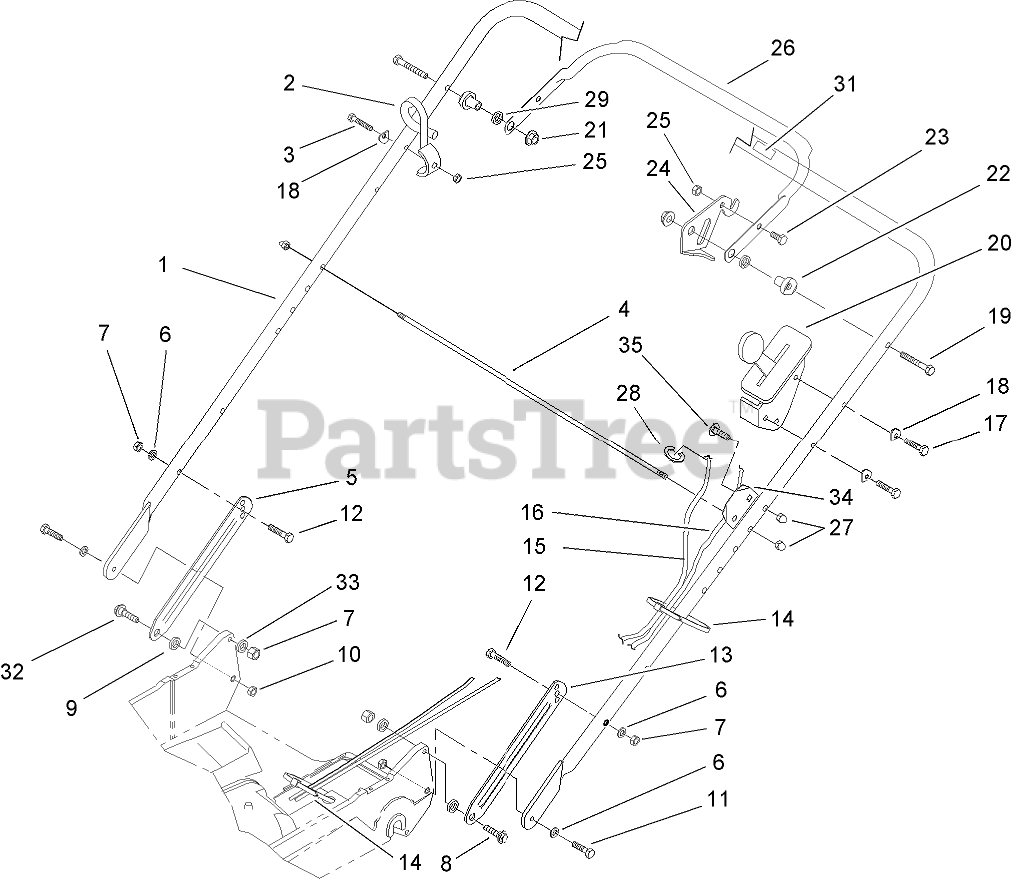

HANDLE ASSEMBLY Parts Diagram

  • Title
1

$131.99

$

Usually ships in 3-6 days

0

2

Toro 46-8081

GUIDE-ROPE

$23.99

$

Usually ships in 3-6 days

0

3

Toro 321-9

SCREW-HH

$4.99

$

In Stock, only 2 left!

0

4

Toro 48-2810

ROD-SUPPORT, BAG

$31.99

$

Usually ships in 3-6 days

0

5

Toro 100-3297-03

LATCH-HANDLE, RH

$9.49

$

In Stock, Qty 5

0

6

Toro 3290-456

WASHER-BELLEVILLE

$2.99

$

In Stock, Qty 20+

0

7

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

8

Toro 27-7210

SCREW-SHOULDER

$7.99

$

In Stock, only 1 left!

0

9

Toro 3-3287

SPACER

$5.49

$

In Stock, Qty 16

0

10

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 20+

0

11

Toro 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

12

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

13

Toro 100-3298-03

LATCH-HANDLE, LH

$19.99

$

In Stock, only 2 left!

0

14

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

15

Toro 103-2684

Cable-Brake

$81.99

$

Usually ships in 3-6 days

0

16

Toro 106-0888

THROTTLE CABLE ASM

$19.99

$

In Stock, Qty 7

0

17

Toro 321-13

SCREW-HH

$4.99

$

In Stock, Qty 10

0

18

Toro 3-7501

WASHER

$6.49

$

In Stock, Qty 13

0

19

Toro 322-11

SCREW-HH
(Superseded to 120-9738)

$1.49

$

In Stock, Qty 20+

0

20

Toro 103-5296

CONTROL-THROTTLE
(Superseded to 108-2645)

$121.99

$

In Stock, only 1 left!

0

21

Toro 3296-58

NUT-LOCK, NI

$2.99

$

In Stock, Qty 11

0

22

Toro 49-1630

SPACER-SUPPORT

$8.99

$

Usually ships in 3-6 days

0

23

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

24

Toro 66-5350

LEVER-CONTROL

$15.99

$

Usually ships in 3-6 days

0

25

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

26

Toro 61-8270-03

BAR-CONTROL

$109.99

$

Usually ships in 3-6 days

0

27

Toro 32111-7

NUT-CAP

$7.99

$

In Stock, only 2 left!

0

28

Toro 32151-86

E-RING

$2.99

$

In Stock, Qty 20+

0

29

Toro 256-276

SPACER-NYLON

$2.99

$

Usually ships in 3-6 days

0

31

Toro 98-4387

DECAL-PROTECTION, EAR

$7.49

$

In Stock, Qty 8

0

32

Toro 27-7211

SCREW-SHOULDER

$5.49

$

In Stock, Qty 11

0

33

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

34

Toro 104-1326

PLATE-ALIGNING, BAG

$21.99

$

Usually ships in 3-6 days

0

35

Toro 3229-3

SCREW-CARR

$5.49

$

Usually ships in 3-6 days

0

99

Toro 106-0975

GRASS BAG ASM
(Superseded to 121-1391)

Note: See following pages

$188.99

$

In Stock, only 2 left!

0
