22166 - Toro 21" Heavy-Duty Recycler Walk-Behind Mower (SN: 240000001 - 240999999) (2004) DECK, DISCHARGE DOOR AND WHEEL ASSEMBLY Parts Diagram

21" Heavy-Duty Recycler Walk-Behind Mower

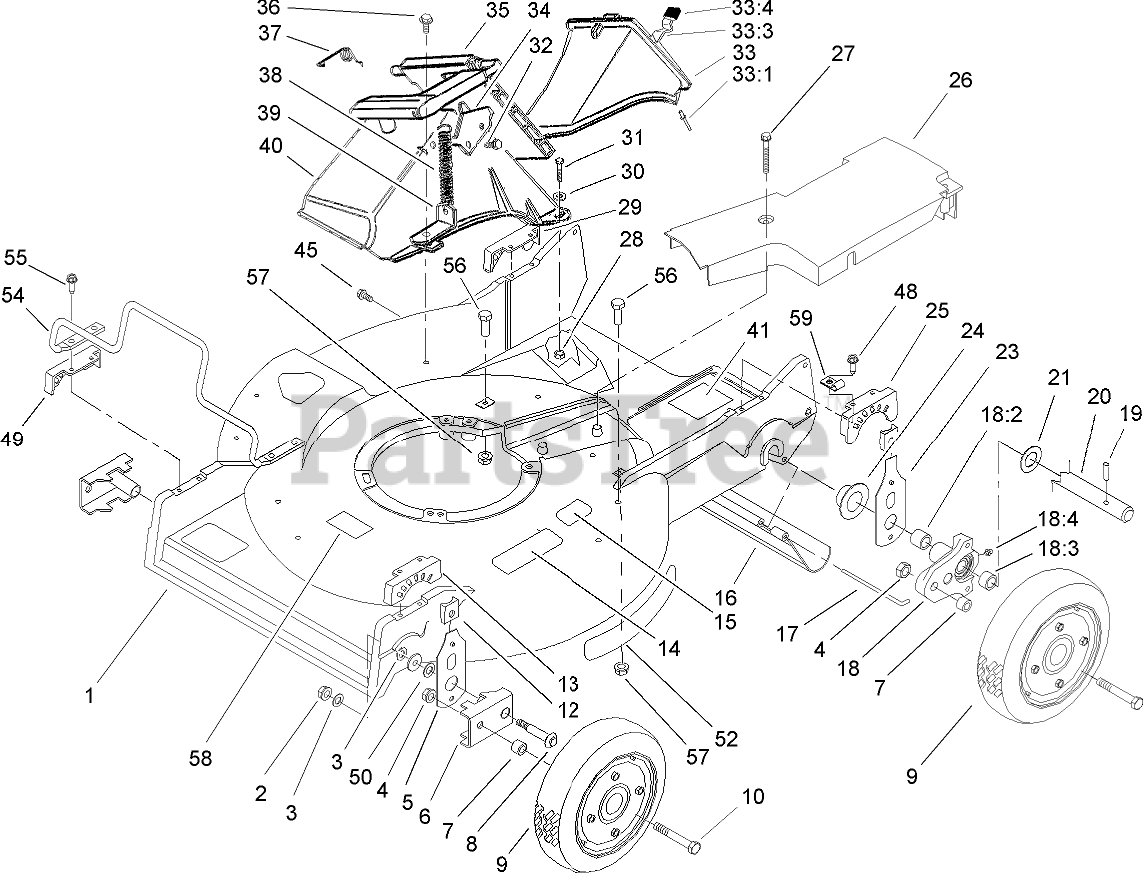

DECK, DISCHARGE DOOR AND WHEEL ASSEMBLY Parts Diagram

  • Title

1

Toro 98-7139

HOUSING ASM

$429.99

$

Usually ships in 3-6 days

0

2

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

3

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 18

0

4

Toro 32152-2

NUT-LOCK, CONE

$2.99

$

In Stock, Qty 18

0

5

Toro 66-7560

FRONT SPRING ARM ASM

$13.99

$

In Stock, Qty 7

0

6

Toro 61-8300

ARM-PIVOT, FRONT

$29.99

$

In Stock, only 2 left!

0

7

Toro 52-2480

SPACER-WHEEL

$6.49

$

In Stock, only 2 left!

0

8

Toro 27-6232

BOLT-WHEEL
(Superseded to 114-3468)

$5.49

$

In Stock, Qty 20+

0

9

Toro 100-2870

Wheel and Tire ASM
(Superseded to 121-1380)

$101.99

$

In Stock, only 3 left!

0

10

Toro 323-12

SCREW-HH

$2.49

$

In Stock, Qty 10

0

12

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 8

0

13

Toro 49-8760

QUADRANT-FRONT, LH

$27.99

$

In Stock, only 4 left!

0

14

Toro 104-8589

Decal-Warning

$7.49

$

Usually ships in 3-6 days

0

15

Toro 105-2625

DECAL-STD, SAFETY

$

$

Not available

16

Toro 44-0580

SHIELD-TRAILING
(Superseded to 112-9989)

$28.99

$

In Stock, Qty 8

0

17

Toro 33-3208

ROD-SHIELD

$15.99

$

In Stock, Qty 12

0

18

Toro 42-3510

PIVOT ARM ASM

$

$

Not available

18:2

Toro 47-2900

BUSHING

$6.49

$

In Stock, only 4 left!

0

18:3

Toro 47-2890

BUSHING

$3.99

$

Usually ships in 3-6 days

0

18:4

Toro 302-56

FITTING-GREASE

$5.49

$

In Stock, only 1 left!

0

19

Toro 32121-108

PIN-SPIROL

$6.99

$

Usually ships in 3-6 days

0

20

Toro 49-8790

SHAFT-AXLE, REAR

$58.99

$

Usually ships in 3-6 days

0

21

Toro 36-4780

WASHER-PLAIN

$7.99

$

In Stock, only 3 left!

0

23

Toro 66-7561

REAR SPRING ARM ASM

$19.99

$

In Stock, Qty 6

0

24

Toro 48-2170

CAP-END

$10.99

$

In Stock, Qty 5

0

25

Toro 49-8740

QUADRANT-REAR, LH

$27.99

$

In Stock, only 4 left!

0

26

Toro 63-9441

COVER-BELT

$52.99

$

Usually ships in 3-6 days

0

27

Toro 37-7260

SCREW-HHFTF

$6.49

$

In Stock, only 2 left!

0

28

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 9

0

29

Toro 49-8750

QUADRANT-REAR, RH

$27.99

$

In Stock, only 4 left!

0

30

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

31

Toro 321-7

SCREW-HH

$5.49

$

In Stock, only 1 left!

0

32

Toro 46-8090

SCREW-PLASTITE

$

$

Not available

33

Toro 77-0500

DISCHARGE PLUG ASM

$75.99

$

Usually ships in 3-6 days

0

33:1

Toro 3295-35

RIVET-HEAD, FLAT

$2.99

$

Usually ships in 3-6 days

0

33:3

Toro 76-4640

LATCH-PLUG, DISCHARGE

$22.99

$

Usually ships in 3-6 days

0

33:4

Toro 76-4650

GRIP-LATCH

$5.99

$

Usually ships in 3-6 days

0

34

Toro 93-3154

LATCH-PLATE

$5.99

$

In Stock, Qty 5

0

35

Toro 93-7351

DISCHARGE DOOR ASM

$116.99

$

In Stock, only 1 left!

0

36

Toro 46-6811

SCREW-HWH

$3.49

$

In Stock, only 3 left!

0

37

Toro 80-3770

RETAINER-DOOR

$6.99

$

In Stock, only 2 left!

0

38

Toro 76-4660

SPRING-DOOR

$11.99

$

In Stock, Qty 5

0

39

Toro 71-9350

BRACKET-SPRING

$14.99

$

Usually ships in 3-6 days

0

40

Toro 82-9152

TUNNEL-DISCHARGE

$160.99

$

Usually ships in 3-6 days

0

41

Toro 52-2610

LABEL-GREASE, HP

$

$

Not available

45

Toro 46-6810

SCREW AND WASHER ASM

$5.49

$

Usually ships in 3-6 days

0

48

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

49

Toro 49-8770

QUADRANT-FRONT, RH

$27.99

$

In Stock, Qty 6

0

50

Toro 257-3

WASHER-THRUST

$15.99

$

In Stock, only 2 left!

0

52

Toro 106-0689

Decal

$8.49

$

In Stock, Qty 20+

0

54

Toro 99-6722

GUARD-ENGINE

$39.99

$

In Stock, only 1 left!

0

55

Toro 32144-86

SCREW-HWHTF

$1.49

$

In Stock, Qty 20+

0

56

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

57

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

58

Toro 68-7410

DECAL-BLADE

$12.99

$

In Stock, only 1 left!

0

59

Toro 2412-72

CLIP-CLOSED, INSULATED

$2.49

$

In Stock, Qty 12

0
