22166 - Toro 21" Heavy-Duty Recycler Walk-Behind Mower (SN: 230000001 - 230999999) (2003) FAN COVER ASSEMBLY HONDA GXV160K1 A12 Parts Diagram

21" Heavy-Duty Recycler Walk-Behind Mower

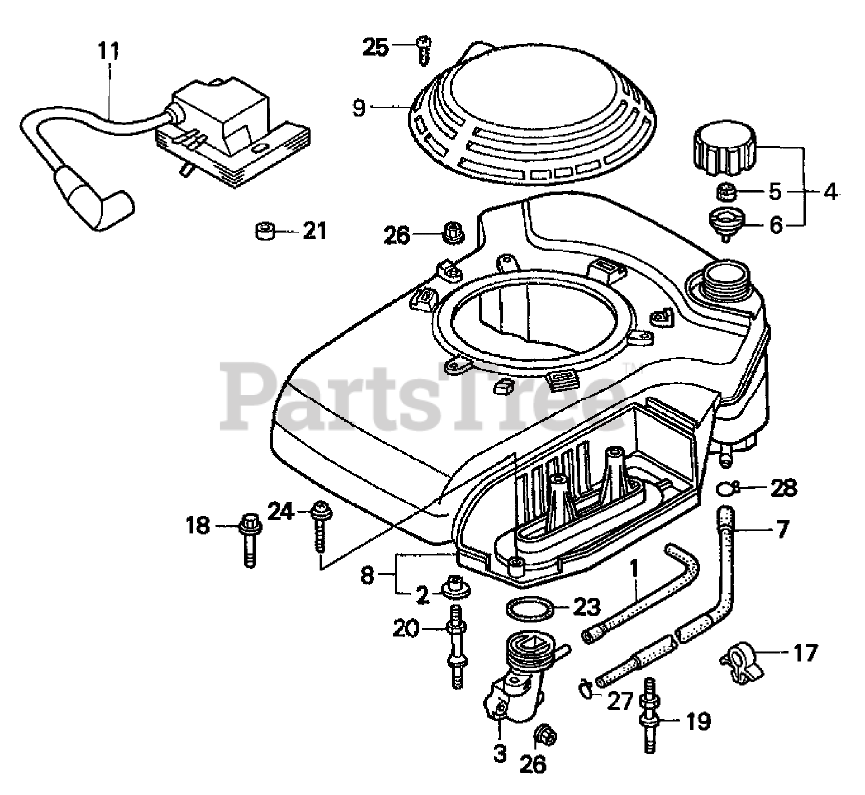

FAN COVER ASSEMBLY HONDA GXV160K1 A12 Parts Diagram

  • Title
1

Honda 15721-ZE7-000

Tube-Breather

Note: Obtain Parts From Honda

$11.99

$

In Stock, only 2 left!

0

2

Honda 17216-PE2-003

COLLAR-CLEANER, AIR

Note: Obtain Parts From Honda

$8.99

$

Usually ships in 3-6 days

0

3

Honda 17410-ZE7-W00

ELBOW-CLEANER, AIR

Note: Obtain Parts From Honda

$32.99

$

In Stock, only 2 left!

0

4

Honda 17620-ZE7-000

FUEL TANK CAP ASM
(Superseded to 17620-ZG9-000)

Note: Obtain Parts From Honda

$12.99

$

In Stock, only 1 left!

0

5

Honda 17622-888-010

Sponge-BREATHER, Fuel Cap

Note: Obtain Parts From Honda

$2.49

$

In Stock, only 4 left!

0

6

Honda 17624-ZE7-000

GASKET-CAP, FUEL

Note: Obtain Parts From Honda

$4.99

$

Usually ships in 3-6 days

0

7

Honda 17700-ZE7-W00

FUEL TANK TUBE ASM

Note: Obtain Parts From Honda

$13.99

$

Usually ships in 3-6 days

0

8

Honda 19610-ZE7-W11ZA

Cover-Fan

Note: Obtain Parts From Honda

$35.99

$

Usually ships in 3-6 days

0

Honda 19610-ZE7-W11ZB

Cover-Fan (Bright Red)

Note: Obtain Parts From Honda

$26.99

$

Usually ships in 3-6 days

0

9

Honda 19615-ZG9-801ZA

HOOD-COVER, FAN

Note: Obtain Parts From Honda

$28.99

$

In Stock, only 1 left!

0

Honda 19615-ZG9-801ZB

HOOD-FAN COVER

Note: Obtain Parts From Honda

$48.99

$

Usually ships in 3-6 days

0

11

Honda 30500-ZG9-801

Ignition Coil ASM

Note: Obtain Parts From Honda

$74.99

$

Usually ships in 3-6 days

0

16

Honda 36103-ZE1-000

HOLDER-WIRE, STOP SWITCH

Note: Obtain Parts From Honda

$2.49

$

In Stock, only 1 left!

0

17

Honda 46392-SC2-003

CLAMP-PIPE, BRAKE

Note: Obtain Parts From Honda

$5.49

$

Usually ships in 3-6 days

0

18

Honda 90015-883-000

Bolt-Flange (6X28)

Note: Obtain Parts From Honda

$3.99

$

In Stock, Qty 8

0

19

Honda 90041-ZE7-W10

Bolt-Stud

Note: Obtain Parts From Honda

$11.99

$

Usually ships in 3-6 days

0

20

Honda 90042-ZE7-W00

BOLT-STUD

Note: Obtain Parts From Honda

$6.99

$

Usually ships in 3-6 days

0

21

Honda 90402-ZE7-W00

Collar-Special

Note: Obtain Parts From Honda

$4.49

$

Usually ships in 3-6 days

0

23

Honda 91301-ZG9-800

O-Ring (33.3X3.5)

Note: Obtain Parts From Honda

$

$

Not available

24

Honda 93891-06035-10

SCREW-WASHER (6X35)

Note: Obtain Parts From Honda

$1.49

$

In Stock, Qty 6

0

25

Honda 93913-24580

Screw-Tapping (4X20)

Note: Obtain Parts From Honda

$0.99

$

In Stock, Qty 7

0

26

Honda 94050-06000

NUT-FLANGE (6 mm)

Note: Obtain Parts From Honda

$0.99

$

In Stock, Qty 20+

0

27

Honda 95002-02080

CLIP-TUBE (B8)

Note: Obtain Parts From Honda

$2.49

$

In Stock, Qty 20+

0

28

Honda 95002-02100

CLIP-TUBE (B10)

Note: Obtain Parts From Honda

$2.49

$

In Stock, Qty 20+

0

Honda 95002-50000

CLIP-TUBE (C9)

Note: Obtain Parts From Honda

$1.99

$

In Stock, Qty 20+

0
