22166 - Toro 21" Heavy-Duty Recycler Walk-Behind Mower (SN: 230000001 - 230999999) (2003) CRANKSHAFT AND PISTON ASSEMBLY HONDA GXV160K1 A12 Parts Diagram

21" Heavy-Duty Recycler Walk-Behind Mower

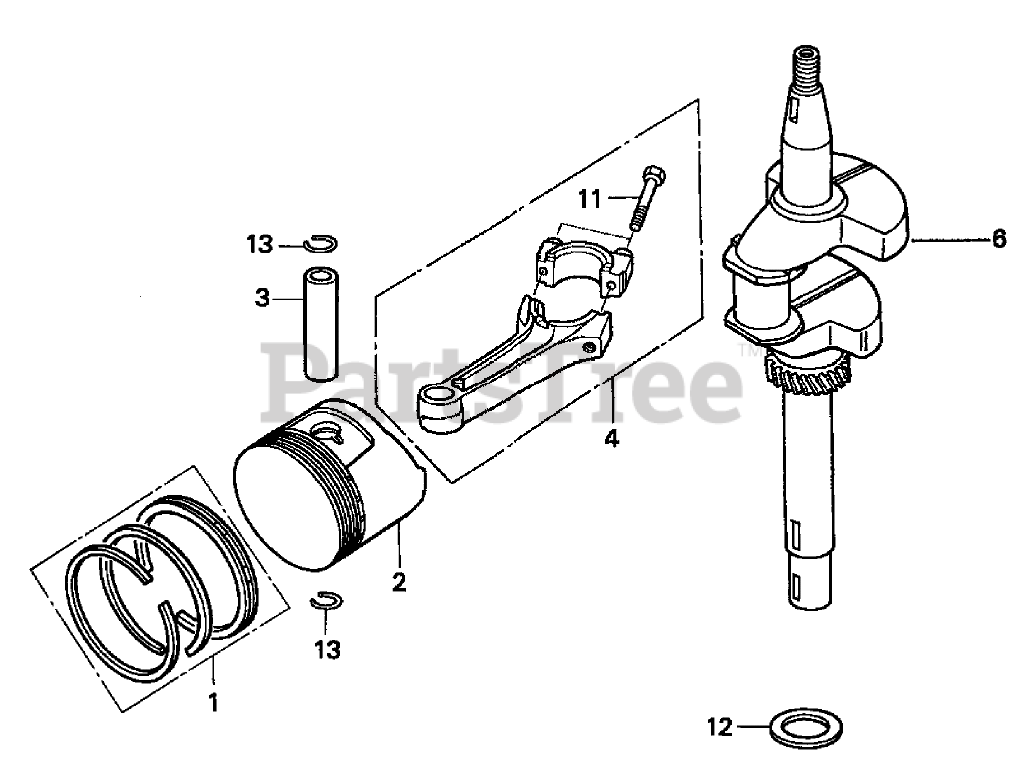

CRANKSHAFT AND PISTON ASSEMBLY HONDA GXV160K1 A12 Parts Diagram

  • Title

1

Honda 13010-ZF1-023

RING SET-PISTON (STD)

Note: Obtain Parts From Honda

$33.99

$

In Stock, only 1 left!

0

Honda 13011-ZF1-023

RING SET-PISTON (OS 0.25)

Note: Obtain Parts From Honda

$46.99

$

Usually ships in 3-6 days

0

Honda 13012-ZF1-023

Ring Set-Piston (OS 0.50)

Note: Obtain Parts From Honda

$

$

Not available

Honda 13013-ZF1-023

Ring Set-Piston (0.75)
(Superseded to 13013-ZF1-024)

Note: Obtain Parts From Honda

$

$

Not available

2

Toro 13101-ZE7-010

Piston (STD)

Note: Obtain Parts From Honda

$

$

Currently unavailable

Toro 13102-ZE7-010

Piston (OS 0.25)

Note: Obtain Parts From Honda

$

$

Currently unavailable

Toro 13103-ZE7-010

Piston (OS 0.50)

Note: Obtain Parts From Honda

$

$

Currently unavailable

Toro 13104-ZE7-010

Piston (0.75)

Note: Obtain Parts From Honda

$

$

Currently unavailable

3

Honda 13111-ZE1-000

Pin-Piston

Note: Obtain Parts From Honda

$12.99

$

Usually ships in 3-6 days

0

4

Honda 13200-ZE7-000

CONNECTING ROD ASM
(Superseded to 13200-Z1V-600)

Note: Obtain Parts From Honda

$130.99

$

In Stock, only 1 left!

0

Honda 13200-ZE7-305

CONNECTING ROD ASM (US 0.25)

Note: Obtain Parts From Honda

$

$

Not available

6

Honda 13310-ZE7-V10

CRANKSHAFT

Note: Obtain Parts From Honda

$204.99

$

Usually ships in 3-6 days

0

11

Honda 90001-ZE1-000

BOLT-ROD, CONNECTING

Note: Obtain Parts From Honda

$3.99

$

In Stock, only 2 left!

0

12

Honda 90401-ZE7-W00

WASHER-THRUST (25.6 mm)

Note: Obtain Parts From Honda

$6.99

$

In Stock, only 2 left!

0

13

Honda 90551-ZE1-000

CLIP-PIN, PISTON (18 mm)

Note: Obtain Parts From Honda

$1.49

$

In Stock, Qty 20+

0
