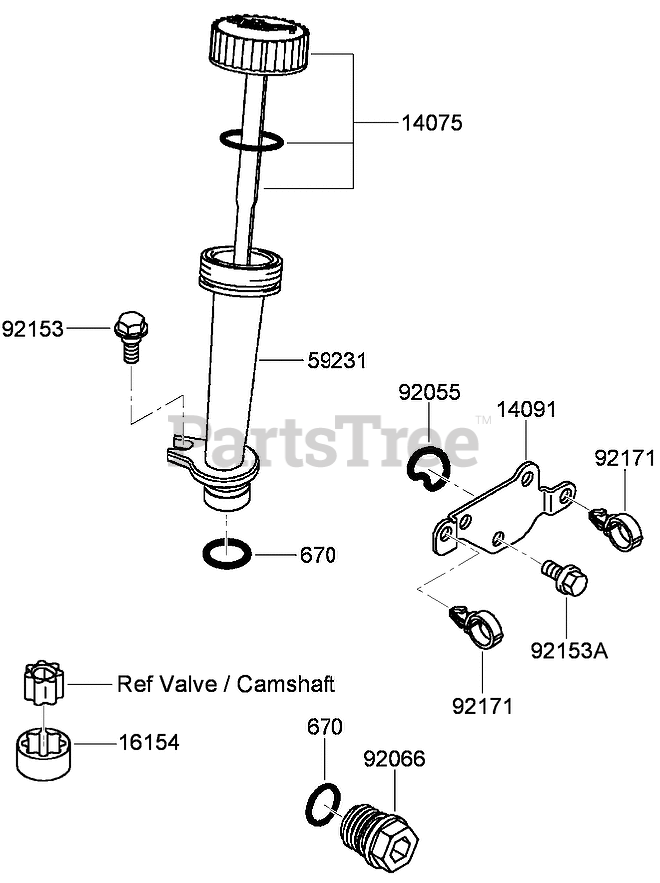

22164 TE (HD 53) - Toro Walk-Behind Mower (SN: 290000001 - 290999999) (2009) LUBRICATION EQUIPMENT ASSEMBLY KAWASAKI FJ180V-AS58 Parts Diagram

Walk-Behind Mower

LUBRICATION EQUIPMENT ASSEMBLY KAWASAKI FJ180V-AS58 Parts Diagram

  • Title
670

Kawasaki 670D2016

O-RING (16mm)
(Superseded to M88478)

Note: Obtain parts from www.kawpowerepc.com

$1.99

$

In Stock, Qty 20+

0

14075

Kawasaki 14075-7007

CAP ASM

Note: Obtain parts from www.kawpowerepc.com

$6.99

$

Usually ships in 2-5 days

0

14091

Kawasaki 14091-7061

COVER-FILTER, OIL

Note: Obtain parts from www.kawpowerepc.com

$1.49

$

Usually ships in 2-5 days

0

16154

Kawasaki 16154-7002

ROTOR-PUMP

Note: Obtain parts from www.kawpowerepc.com

$7.49

$

Usually ships in 2-5 days

0

59231

Kawasaki 59231-7004

FILLER
(Superseded to 59231-2099)

Note: Obtain parts from www.kawpowerepc.com

$4.99

$

In Stock, Qty 17

0

92055

Kawasaki 92055-2151

O-RING

Note: Obtain parts from www.kawpowerepc.com

$1.99

$

In Stock, only 3 left!

0

92066

Kawasaki 92066-7003

Plug
(Superseded to 920660774)

Note: Obtain parts from www.kawpowerepc.com

$5.49

$

In Stock, Qty 20+

0

92153

Kawasaki 92153-7007

Bolt

Note: Obtain parts from www.kawpowerepc.com

$4.49

$

In Stock, Qty 20+

0

92153A

Kawasaki 92153-7043

BOLT (6X12)

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

92171

Kawasaki 92171-7014

CLAMP

Note: Obtain parts from www.kawpowerepc.com

$1.99

$

In Stock, only 2 left!

0
