22164 TE (HD 53) - Toro Walk-Behind Mower (SN: 290000001 - 290999999) (2009) FUEL TANK AND FUEL VALVE ASSEMBLY KAWASAKI FJ180V-AS58 Parts Diagram

Walk-Behind Mower

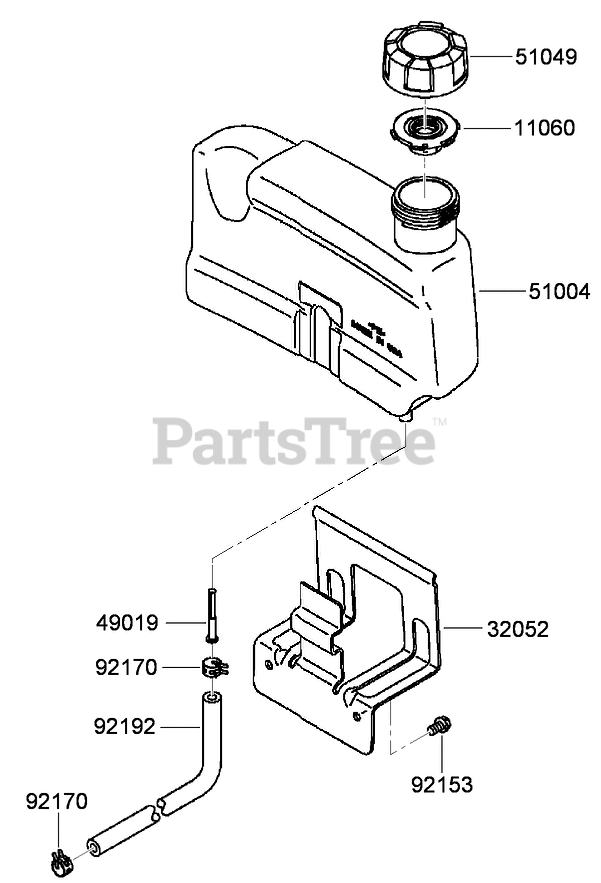

FUEL TANK AND FUEL VALVE ASSEMBLY KAWASAKI FJ180V-AS58 Parts Diagram

  • Title
11060

Kawasaki 11060-2145

GASKET
(Superseded to 11061-7036)

Note: Obtain parts from www.kawpowerepc.com

$8.99

$

In Stock, Qty 19

0

32052

Kawasaki 32052-7001

BRACKET-TANK
(Superseded to 32052-2230)

Note: Obtain parts from www.kawpowerepc.com

$10.99

$

Usually ships in 2-5 days

0

49019

Kawasaki 49019-7003

FILTER-FUEL
(Superseded to 49019-2119)

Note: Obtain parts from www.kawpowerepc.com

$11.99

$

In Stock, Qty 8

0

51004

Kawasaki 51004-7005

TANK-FUEL
(Superseded to 51004-7004)

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

51049

Toro 51049-7002

CAP-TANK

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable

92153

Kawasaki 92153-7023

BOLT (6X10)

Note: Obtain parts from www.kawpowerepc.com

$0.99

$

Usually ships in 2-5 days

0

92170

Kawasaki 92170-2009

CLAMP

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

92192

Toro 92192-7125

TUBE (6.35X12.7X330)

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable
