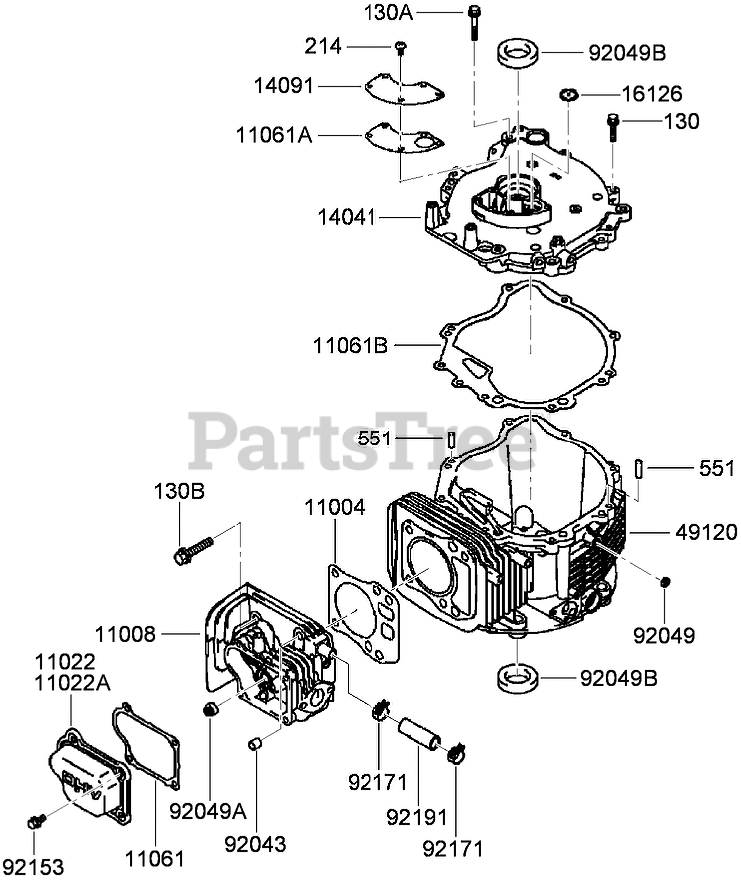

22164 TE (HD 53) - Toro Walk-Behind Mower (SN: 290000001 - 290999999) (2009) CYLINDER AND CRANKCASE ASSEMBLY KAWASAKI FJ180V-AS58 Parts Diagram

Walk-Behind Mower

CYLINDER AND CRANKCASE ASSEMBLY KAWASAKI FJ180V-AS58 Parts Diagram

  • Title

130

Kawasaki 130BA0625

BOLT-FLANGED (6X25)
(Superseded to 92003-177)

Note: Obtain parts from www.kawpowerepc.com

$1.49

$

In Stock, Qty 20+

0

130A

Kawasaki 130BA0635

BOLT-FLANGED (6X35)
(Superseded to 130B0635)

Note: Obtain parts from www.kawpowerepc.com

$1.99

$

In Stock, Qty 12

0

130B

Kawasaki 130CA0840

Bolt-Flanged (8X40)
(Superseded to 130G0840)

Note: Obtain parts from www.kawpowerepc.com

$2.49

$

In Stock, Qty 7

0

214

Kawasaki 214AA0510

SCREW-PAN +-(5X10)
(Superseded to 214B0510)

Note: Obtain parts from www.kawpowerepc.com

$0.99

$

In Stock, Qty 13

0

551

Kawasaki 551A0612

PIN-DOWEL (6X12)

Note: Obtain parts from www.kawpowerepc.com

$0.99

$

Usually ships in 2-5 days

0

11004

Kawasaki 11004-7020

GASKET-HEAD
(Superseded to 11004-7009)

Note: Obtain parts from www.kawpowerepc.com

$6.99

$

In Stock, Qty 16

0

11008

Kawasaki 11008-7025

HEAD-CYLINDER
(Superseded to 11008-7014)

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

11022

Toro 11022-7005

CASE-ROCKER

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable

11022

Toro 11022-7005

CASE-ROCKER

Note: This part can be used as substitute on the product and is supplied until stock is exhausted

$

$

Currently unavailable

11022A

Kawasaki 11022-7021

CASE-ROCKER
(Superseded to 11022-2083)

Note: Obtain parts from www.kawpowerepc.com

$10.99

$

In Stock, Qty 11

0

11061

Kawasaki 11061-7023

GASKET-CASE, ROCKER
(Superseded to 11061-2210)

Note: Obtain parts from www.kawpowerepc.com

$4.99

$

In Stock, Qty 20+

0

11061A

Kawasaki 11061-7031

GASKET-BREATHER
(Superseded to 11061-2213)

Note: Obtain parts from www.kawpowerepc.com

$1.49

$

In Stock, Qty 20+

0

11061B

Kawasaki 11061-7060

GASKET-COVER, CRANKCASE
(Superseded to 11061-7020)

Note: Obtain parts from www.kawpowerepc.com

$7.49

$

In Stock, Qty 9

0

14041

Kawasaki 14041-7009

COVER ASM
(Superseded to 14041-7004)

Note: Obtain parts from www.kawpowerepc.com

$117.99

$

Usually ships in 2-5 days

0

14091

Kawasaki 14091-7010

COVER-BREATHER

Note: Obtain parts from www.kawpowerepc.com

$1.99

$

Usually ships in 2-5 days

0

16126

Kawasaki 16126-7014

VALVE-BREATHER
(Superseded to 16126-2247)

Note: Obtain parts from www.kawpowerepc.com

$0.99

$

In Stock, Qty 9

0

49120

Kawasaki 49120-7101

CRANKCASE ASM

Note: Obtain parts from www.kawpowerepc.com

$357.99

$

Usually ships in 2-5 days

0

92043

Kawasaki 92043-7001

Pin

Note: Obtain parts from www.kawpowerepc.com

$0.99

$

In Stock, Qty 20+

0

92049

Kawasaki 92049-2097

SEAL-OIL (VC6X10X2.6)

Note: Obtain parts from www.kawpowerepc.com

$2.49

$

In Stock, Qty 20+

0

92049A

Kawasaki 92049-7001

SEAL-OIL, R V C2 (6X11X10.2)

Note: Obtain parts from www.kawpowerepc.com

$8.49

$

Usually ships in 2-5 days

0

92049B

Kawasaki 92049-7008

SEAL-OIL (28-44-9 T C)

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

92153

Kawasaki 92153-7043

BOLT (6X12)

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

92171

Kawasaki 92171-7024

CLAMP

Note: Obtain parts from www.kawpowerepc.com

$2.99

$

In Stock, only 2 left!

0

92191

Kawasaki 92191-7025

TUBE (12X16X49)
(Superseded to 92192-2184)

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available
