22164 TE (HD 53) - Toro Walk-Behind Mower (SN: 290000001 - 290999999) (2009) CONTROL EQUIPMENT ASSEMBLY KAWASAKI FJ180V-AS58 Parts Diagram

Walk-Behind Mower

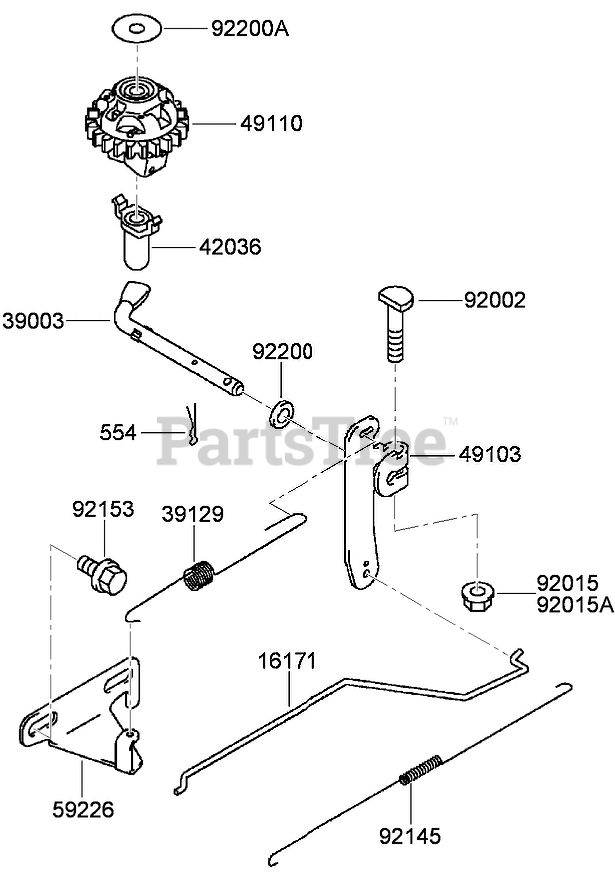

CONTROL EQUIPMENT ASSEMBLY KAWASAKI FJ180V-AS58 Parts Diagram

  • Title
554

Kawasaki 554DA0600

PIN-SNAP (1.2X21.2)
(Superseded to 554A0600)

Note: Obtain parts from www.kawpowerepc.com

$1.49

$

In Stock, only 3 left!

0

16171

Kawasaki 16171-7015

LINK-THROTTLE
(Superseded to 16171-2106)

Note: Obtain parts from www.kawpowerepc.com

$4.49

$

In Stock, only 1 left!

0

39003

Kawasaki 39003-7002

ARM-PIVOT

Note: Obtain parts from www.kawpowerepc.com

$11.99

$

Usually ships in 2-5 days

0

39129

Kawasaki 39129-7007

SPRING-GOVERNOR

Note: Obtain parts from www.kawpowerepc.com

$1.99

$

In Stock, Qty 5

0

42036

Kawasaki 42036-2051

SLEEVE
(Superseded to 42036-2005)

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

49103

Kawasaki 49103-7005

ARM-GOVERNOR

Note: Obtain parts from www.kawpowerepc.com

$2.99

$

In Stock, only 1 left!

0

49110

Kawasaki 49110-7002

GOVERNOR ASM

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

59226

Kawasaki 59226-7014

PANEL-CONTROL
(Superseded to 59226-2370)

Note: Obtain parts from www.kawpowerepc.com

$10.99

$

Usually ships in 2-5 days

0

92002

Kawasaki 92002-2269

Bolt (6X28)

Note: Obtain parts from www.kawpowerepc.com

$1.99

$

In Stock, Qty 6

0

92015

Kawasaki 92015-1193

Nut
(Superseded to 92015-1367)

Note: Obtain parts from www.kawpowerepc.com

$4.49

$

In Stock, only 2 left!

0

92015

Kawasaki 92015-1193

Nut
(Superseded to 92015-1367)

Note: This part can be used as substitute on the product and is supplied until stock is exhausted

$4.49

$

In Stock, only 2 left!

0

92015A

Kawasaki 92015-1367

NUT

Note: Obtain parts from www.kawpowerepc.com

$4.49

$

In Stock, only 2 left!

0

92145

Kawasaki 92145-7025

SPRING-THROTTLE
(Superseded to 92145-2182)

Note: Obtain parts from www.kawpowerepc.com

$0.99

$

In Stock, Qty 7

0

92153

Kawasaki 92153-7043

BOLT (6X12)

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

92200

Kawasaki 92200-2029

WASHER (6.5X11.5X2.0)

Note: Obtain parts from www.kawpowerepc.com

$0.99

$

In Stock, only 2 left!

0

92200A

Kawasaki 92200-2036

Washer (6.2X20X0.5)

Note: Obtain parts from www.kawpowerepc.com

$1.49

$

In Stock, Qty 13

0
