22164 TE (HD 53) - Toro Walk-Behind Mower (SN: 290000001 - 290999999) (2009) AIR FILTER AND MUFFLER ASSEMBLY KAWASAKI FJ180V-AS58 Parts Diagram

Walk-Behind Mower

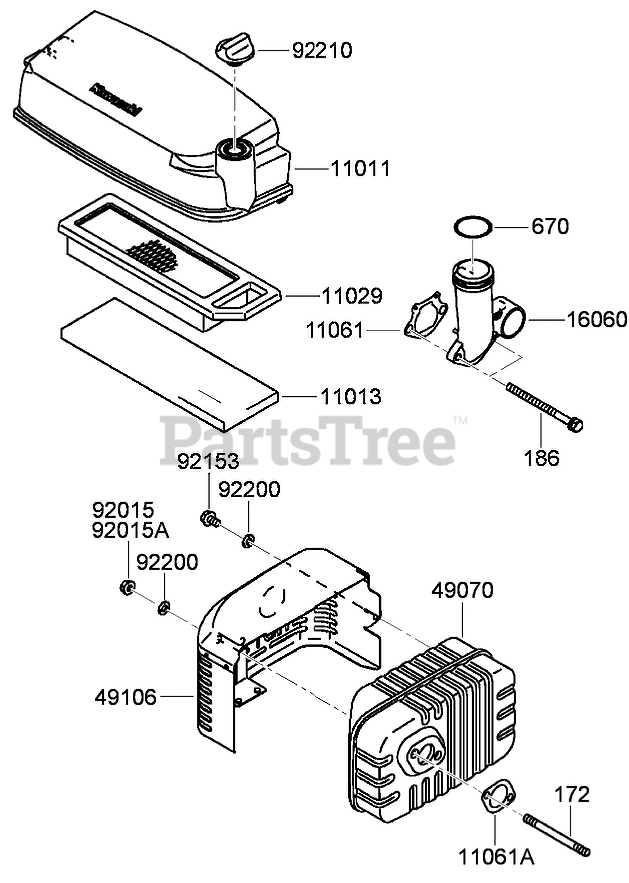

AIR FILTER AND MUFFLER ASSEMBLY KAWASAKI FJ180V-AS58 Parts Diagram

  • Title

172

Kawasaki 172BA0680

BOLT-STUD (6X80)
(Superseded to 172G0680)

Note: Obtain parts from www.kawpowerepc.com

$3.49

$

In Stock, Qty 17

0

186

Kawasaki 186AA0680

BOLT-UPSET, WP (6X80)
(Superseded to 186B0680)

Note: Obtain parts from www.kawpowerepc.com

$1.49

$

In Stock, Qty 15

0

670

Kawasaki 670B3032

O-RING (32MM)
(Superseded to 92055-1321)

Note: Obtain parts from www.kawpowerepc.com

$1.49

$

In Stock, Qty 7

0

11011

Kawasaki 11011-7028

CASE-FILTER, AIR

Note: Obtain parts from www.kawpowerepc.com

$9.99

$

In Stock, only 1 left!

0

11013

Kawasaki 11013-7032

ELEMENT-FILTER, AIR
(Superseded to 11013-2232)

Note: Obtain parts from www.kawpowerepc.com

$4.99

$

In Stock, Qty 20+

0

11029

Kawasaki 11029-7021

AIR FILTER ELEMENT ASM
(Superseded to 11029-0018)

Note: Obtain parts from www.kawpowerepc.com

$15.99

$

In Stock, Qty 20+

0

11061

Kawasaki 11061-7012

GASKET-PIPE, INTAKE
(Superseded to 11061-2211)

Note: Obtain parts from www.kawpowerepc.com

$3.99

$

In Stock, Qty 20+

0

11061A

Kawasaki 11061-7029

GASKET-MUFFLER
(Superseded to 11061-2212)

Note: Obtain parts from www.kawpowerepc.com

$3.49

$

In Stock, Qty 20+

0

16060

Kawasaki 16060-7012

PIPE-INTAKE
(Superseded to 16060-7009)

Note: Obtain parts from www.kawpowerepc.com

$3.99

$

In Stock, only 2 left!

0

49070

Kawasaki 49070-7022

MUFFLER
(Superseded to 49070-7019)

Note: Obtain parts from www.kawpowerepc.com

$37.99

$

Usually ships in 2-5 days

0

49106

Kawasaki 49106-7019

COVER-MUFFLER
(Superseded to 49106-7017)

Note: Obtain parts from www.kawpowerepc.com

$15.99

$

Usually ships in 2-5 days

0

92015

Kawasaki 92015-1193

Nut
(Superseded to 92015-1367)

Note: Obtain parts from www.kawpowerepc.com

$4.49

$

In Stock, Qty 20+

0

92015

Kawasaki 92015-1193

Nut
(Superseded to 92015-1367)

Note: This part can be used as substitute on the product and is supplied until stock is exhausted

$4.49

$

In Stock, Qty 20+

0

92015A

Kawasaki 92015-1367

NUT

Note: Obtain parts from www.kawpowerepc.com

$4.49

$

In Stock, Qty 20+

0

92153

Kawasaki 92153-7023

BOLT (6X10)

Note: Obtain parts from www.kawpowerepc.com

$0.99

$

In Stock, only 1 left!

0

92200

Kawasaki 92200-7022

WASHER (6.4X12X1.7)

Note: Obtain parts from www.kawpowerepc.com

$0.99

$

Usually ships in 2-5 days

0

92210

Kawasaki 92210-7019

NUT

Note: Obtain parts from www.kawpowerepc.com

$6.99

$

In Stock, Qty 20+

0
