22163 (PT 21) - Toro 21" Trim Walk-Behind Mower (SN: 280000001 - 280999999) (2008) HEIGHT-OF-CUT ASSEMBLY Parts Diagram

21" Trim Walk-Behind Mower

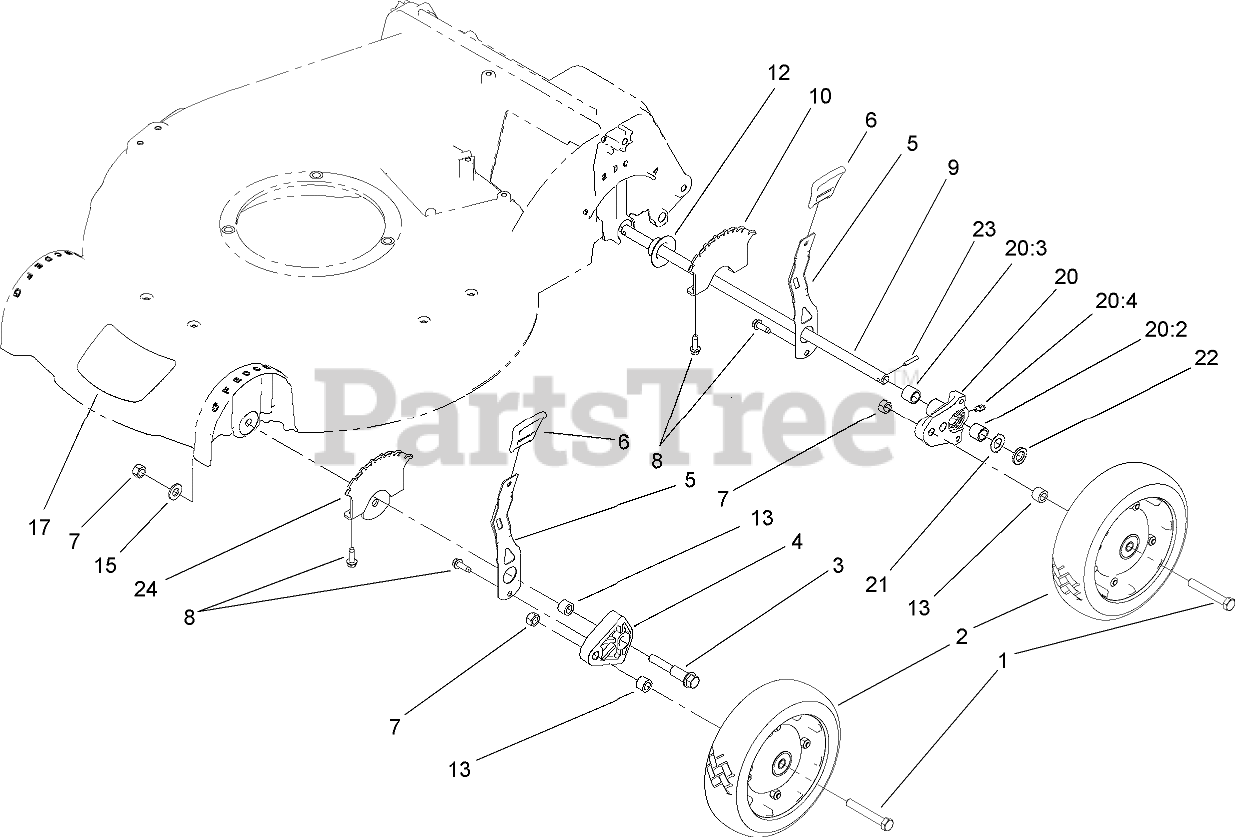

HEIGHT-OF-CUT ASSEMBLY Parts Diagram

  • Title

1

Toro 323-12

SCREW-HH

$2.49

$

In Stock, Qty 13

0

2

Toro 100-2870

Wheel and Tire ASM
(Superseded to 121-1380)

$100.99

$

In Stock, only 3 left!

0

3

Toro 114-3467

SCREW-SHOULDER

$7.99

$

In Stock, only 1 left!

0

4

Toro 107-7492

ARM-PIVOT

$17.99

$

In Stock, only 2 left!

0

5

Toro 107-7491

ARM-SPRING

$12.99

$

In Stock, only 4 left!

0

6

Toro 110-0549

KNOB-HOC

$1.49

$

In Stock, Qty 20+

0

7

Toro 603773

NUT

$2.99

$

In Stock, only 4 left!

0

8

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

9

Toro 49-8790

SHAFT-AXLE, REAR

$56.99

$

Usually ships in 3-6 days

0

10

Toro 107-7478

PLATE-HOC

$

$

Not available

12

Toro 42-3520

CAP-END
(Superseded to 138-3235)

$3.49

$

In Stock, only 2 left!

0

13

Toro 52-2480

SPACER-WHEEL

$6.49

$

In Stock, only 4 left!

0

15

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

17

Toro 110-4929

DECAL-HOUSING, FRONT

$18.99

$

Usually ships in 3-6 days

0

20

Toro 100-8774

PIVOT ARM ASM

$37.99

$

In Stock, only 3 left!

0

20:2

Toro 47-2900

BUSHING

$6.49

$

In Stock, Qty 5

0

20:3

Toro 70-9760

BUSHING

$4.99

$

In Stock, Qty 6

0

20:4

Toro 302-56

FITTING-GREASE

$5.49

$

In Stock, only 3 left!

0

21

Toro 65-4730

WASHER-ARM, PIVOT

$2.49

$

In Stock, Qty 9

0

22

Toro 108-5059

SPACER-BUSHING

$7.99

$

In Stock, Qty 6

0

23

Toro 32121-108

PIN-SPIROL

$6.99

$

Usually ships in 3-6 days

0

24

Toro 110-4920-03

BRACKET-SUPPORT

$30.99

$

Usually ships in 3-6 days

0
