22163 (PT 21) - Toro 21" Trim Walk-Behind Mower (SN: 270000001 - 270999999) (2007) CYLINDER AND CRANKCASE ASSEMBLY KAWASAKI FJ180V-AS28 Parts Diagram

21" Trim Walk-Behind Mower

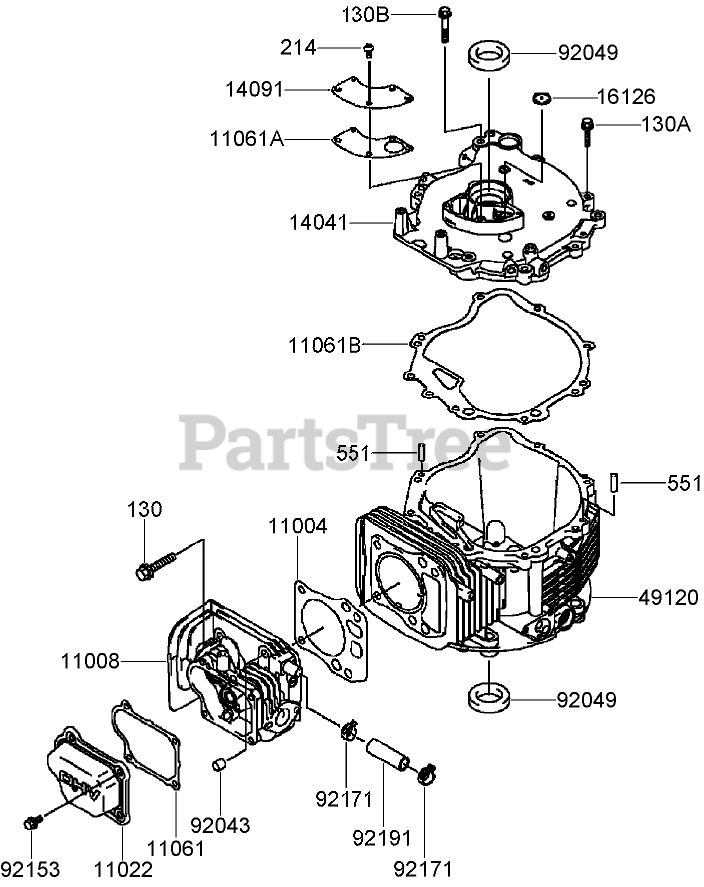

CYLINDER AND CRANKCASE ASSEMBLY KAWASAKI FJ180V-AS28 Parts Diagram

  • Title

11004

Kawasaki 11004-7020

GASKET-HEAD
(Superseded to 11004-7009)

Note: Obtain parts from www.kawpowerepc.com

$6.99

$

In Stock, Qty 16

0

11008

Kawasaki 11008-7025

HEAD-CYLINDER
(Superseded to 11008-7014)

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

11022

Toro 11022-7005

CASE-ROCKER

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable

11061

Kawasaki 11061-7023

GASKET-CASE, ROCKER
(Superseded to 11061-2210)

Note: Obtain parts from www.kawpowerepc.com

$4.99

$

In Stock, Qty 20+

0

11061A

Kawasaki 11061-7031

GASKET-BREATHER
(Superseded to 11061-2213)

Note: Obtain parts from www.kawpowerepc.com

$1.49

$

In Stock, Qty 20+

0

11061B

Kawasaki 11061-7060

GASKET-COVER, CRANKCASE
(Superseded to 11061-7020)

Note: Obtain parts from www.kawpowerepc.com

$7.49

$

In Stock, Qty 9

0

14041

Kawasaki 14041-7009

COVER ASM
(Superseded to 14041-7004)

Note: Obtain parts from www.kawpowerepc.com

$117.99

$

Usually ships in 2-5 days

0

14091

Kawasaki 14091-7010

COVER-BREATHER

Note: Obtain parts from www.kawpowerepc.com

$1.99

$

Usually ships in 2-5 days

0

16126

Kawasaki 16126-7014

VALVE-BREATHER
(Superseded to 16126-2247)

Note: Obtain parts from www.kawpowerepc.com

$0.99

$

In Stock, Qty 9

0

49120

Kawasaki 49120-7082

CRANKCASE
(Superseded to 49120-6206)

Note: Obtain parts from www.kawpowerepc.com

$355.99

$

Usually ships in 2-5 days

0

92043

Kawasaki 92043-7001

Pin

Note: Obtain parts from www.kawpowerepc.com

$0.99

$

In Stock, Qty 20+

0

92049

Kawasaki 92049-7008

SEAL-OIL (28-44-9 TC)

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

92153

Kawasaki 92153-7043

BOLT (6X12)

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

92171

Kawasaki 92171-7024

CLAMP

Note: Obtain parts from www.kawpowerepc.com

$2.99

$

In Stock, only 2 left!

0

92191

Kawasaki 92191-7025

TUBE (12X16X49)
(Superseded to 92192-2184)

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

130

Kawasaki 130CA0840

Bolt-Flanged (8X40)
(Superseded to 130G0840)

Note: Obtain parts from www.kawpowerepc.com

$2.49

$

In Stock, Qty 7

0

130A

Toro 130G0625

Bolt-Flanged (6X25)

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable

130B

Toro 130G0635

Bolt-Flanged (6X35)

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable

214

Kawasaki 214B0510

SCREW-PAN (5X10)
(Superseded to 214AA0510)

Note: Obtain parts from www.kawpowerepc.com

$0.99

$

In Stock, Qty 13

0

551

Kawasaki 551A0612

PIN-DOWEL (6X12)

Note: Obtain parts from www.kawpowerepc.com

$0.99

$

Usually ships in 2-5 days

0
