22162 - Toro Recycler Walk-Behind Mower (SN: 200000001 - 200999999) (2000) ENGINE GTS-200 Parts Diagram

Recycler Walk-Behind Mower

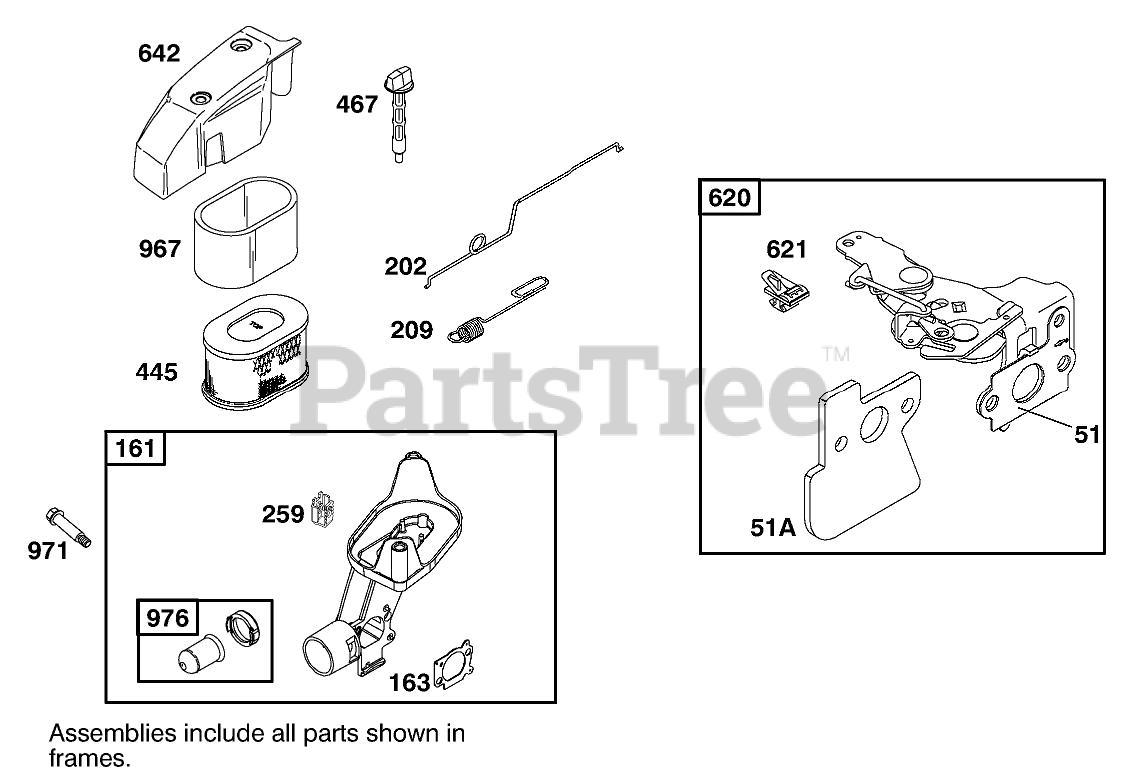

ENGINE GTS-200 Parts Diagram

  • Title

51

Toro 99-0968

GASKET-INTAKE

$

$

Not available

51A

Toro 99-0978

SPACER-CARBURETOR

$43.99

$

Usually ships in 3-6 days

0

161

Toro 99-0979

BASE-CLEANER, AIR

$

$

Not available

163

Toro 99-0976

GASKET-CLEANER, AIR

Note: Included in Carburetor Gasket Set-Part No. 99-0903

$4.99

$

In Stock, Qty 8

0

163

Toro 99-0976

GASKET-CLEANER, AIR

Note: Included in Gasket Set-Part No. 99-0902

$4.99

$

In Stock, Qty 8

0

163

Toro 99-0976

GASKET-CLEANER, AIR

Note: Included in Carburetor Kit-Part No. 99-0901

$4.99

$

In Stock, Qty 8

0

202

Toro 99-0981

LINK-GOVERNOR

$

$

Not available

209

Toro 99-0982

SPRING-GOVERNOR

$14.99

$

Usually ships in 3-6 days

0

259

Toro 99-0984

GROMMET

$8.99

$

Usually ships in 3-6 days

0

445

Toro 98-9212

ELEMENT-FILTER, AIR

$36.99

$

In Stock, only 1 left!

0

467

Toro 98-9208

SCREW-COVER, AIR CLEANER

$

$

Not available

620

Toro 99-0908

BRACKET-CONTROL

$

$

Not available

621

Toro 99-0986

SWITCH-STOP
(Superseded to 77-8010)

$

$

Not available

642

Toro 98-9207

COVER-CLEANER, AIR

$

$

Not available

967

Toro 98-0989

HOSE-HYD

$109.99

$

Usually ships in 3-6 days

0

971

Toro 99-0990

SCREW-HEX

$

$

Not available

976

Toro 99-0991

PRIMER

$4.49

$

In Stock, Qty 20+

0
