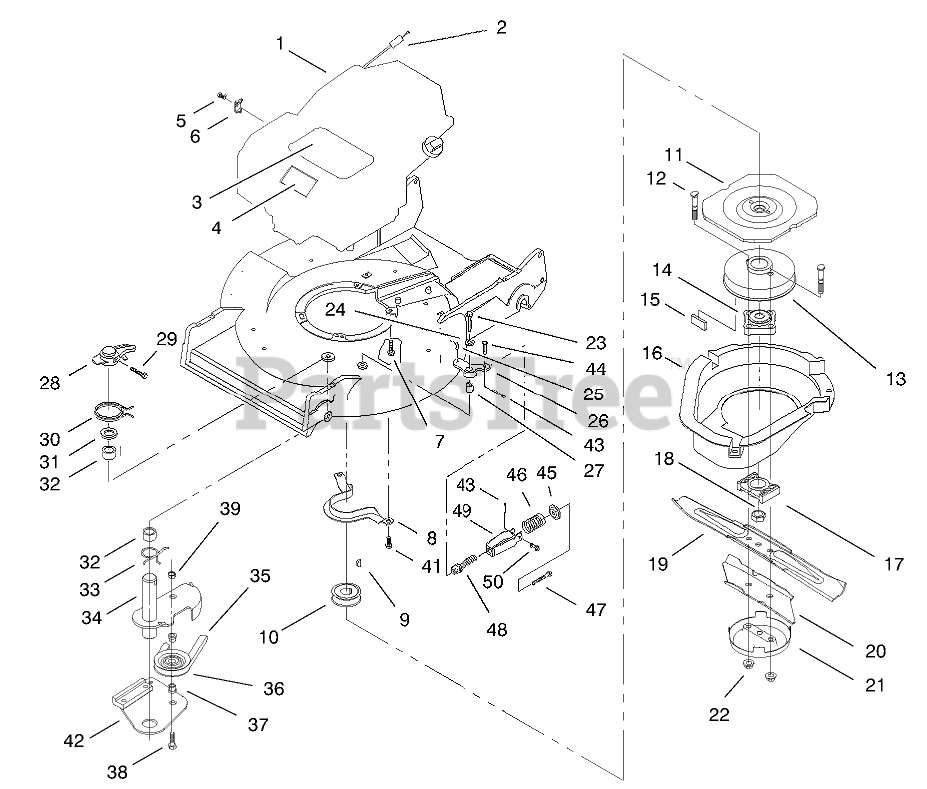

22162 - Toro Recycler Walk-Behind Mower (SN: 089000001 - 089999999) (1998) BLADE BRAKE CLUTCH ASSEMBLY Parts Diagram

Recycler Walk-Behind Mower

BLADE BRAKE CLUTCH ASSEMBLY Parts Diagram

  • Title

1

Toro 98-9246

ASM-Engine
(Superseded to 104-0220)

$1783.99

$

Usually ships in 3-6 days

0

2

Toro 2210-316

STOP-ROPE

$7.99

$

Usually ships in 3-6 days

0

3

Toro 98-2002

DECAL-GTS 200

$14.99

$

Usually ships in 3-6 days

0

4

Toro 84-4960

DECAL - PROLINE

$10.99

$

Usually ships in 3-6 days

0

5

Toro 93-8470

SCREW-CLAMP

$

$

Not available

6

Toro 2210-249

CLAMP-CASING

$3.49

$

Usually ships in 3-6 days

0

7

Toro 32144-102

SCREW-HWH

$3.49

$

Usually ships in 3-6 days

0

8

Toro 66-0570

Guide-Belt
(Superseded to 66-0570-03)

$13.99

$

In Stock, only 2 left!

0

9

Toro 3257-17

KEY-WOODRUFF

$

$

Not available

10

Toro 56-6180

PULLEY-DRIVER

$49.99

$

In Stock, Qty 9

0

11

Toro 56-6160

Flywheel
(Superseded to 56-6160-03)

$108.99

$

In Stock, only 2 left!

0

12

Toro 42-3190

BOLT-BLADE

$12.99

$

In Stock, Qty 14

0

13

Toro 56-6170

Drum-Brake
(Superseded to 94-9431)

$46.99

$

In Stock, Qty 11

0

14

Toro 42-6890

HUB ASM

$95.99

$

Usually ships in 3-6 days

0

15

Toro 52-3480

DAMPENER-VIBRATION

$1.49

$

In Stock, Qty 10

0

16

Toro 46-5693

SHIELD

$33.99

$

Usually ships in 3-6 days

0

17

Toro 62-4280

SPACER-BLADE
(Superseded to 107-4275)

$23.99

$

Usually ships in 3-6 days

0

18

Toro 3296-33

NUT-LOCK, NI

$2.99

$

Usually ships in 3-6 days

0

19

Toro 91-2256

Blade
(Superseded to 91-2256-03)

$36.99

$

In Stock, only 1 left!

0

20

Toro 91-2255

Accelerator
(Superseded to 91-2255-03)

$79.99

$

In Stock, Qty 5

0

21

Toro 80-2770

CUP-SCALP, ANTI

$16.99

$

Usually ships in 3-6 days

0

22

Toro 54-9190

NUT-LOCK
(Superseded to 127-6852)

$2.99

$

In Stock, Qty 20+

0

23

Toro 32104-107

SCREW-HH

$7.99

$

Usually ships in 3-6 days

0

24

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

25

Toro 49-2810

LINK-CONTROL

$2.99

$

In Stock, only 1 left!

0

26

Toro 49-7960

BELLCRANK

$11.99

$

In Stock, only 1 left!

0

27

Toro 49-7950

SLEEVE-BELLCRANK

$5.49

$

Usually ships in 3-6 days

0

28

Toro 49-2820

LEVER

$11.99

$

In Stock, only 1 left!

0

29

Toro 32104-96

SCREW-HH

$6.49

$

In Stock, Qty 5

0

30

Toro 49-7970

SPRING-TORSION

$14.99

$

Usually ships in 3-6 days

0

31

Toro 70-1160

WASHER

$5.49

$

Usually ships in 3-6 days

0

32

Toro 68-9780

BEARING

$25.99

$

Usually ships in 3-6 days

0

33

Toro 85-6880

SPRING-TORSION

$6.99

$

In Stock, only 1 left!

0

34

Toro 84-9130

ARM-IDLER

$43.99

$

In Stock, only 2 left!

0

35

Toro 42-0884

V-BELT

$19.99

$

In Stock, Qty 5

0

36

Toro 46-5650

PULLEY-IDLER
(Superseded to 117-5299)

$42.99

$

In Stock, only 2 left!

0

37

Toro 46-5631

SPACER-PULLEY, IDLER

$2.99

$

In Stock, only 2 left!

0

38

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

39

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 8

0

41

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

42

Toro 84-9180

BRAKE PLATE ASM
(Superseded to 125-1065)

$26.99

$

In Stock, only 1 left!

0

43

Toro 3272-1

PIN-COTTER

$0.99

$

In Stock, Qty 16

0

44

Toro 84-9050

PIN-SPRING

$13.99

$

Usually ships in 3-6 days

0

45

Toro 65-5280

RETAINER-SPRING

$3.49

$

Usually ships in 3-6 days

0

46

Toro 84-9100

SPRING

$12.99

$

Usually ships in 3-6 days

0

47

Toro 46-7040

SCREW-HWHTF

$2.99

$

Usually ships in 3-6 days

0

48

Toro 84-8870

GUIDE-SPRING
(Superseded to 106-0842)

$

$

Not available

49

Toro 84-8880

Bracket-Spring
(Superseded to 84-8880-03)

$

$

Not available

50

Toro 84-9040

PIN-CABLE

$12.99

$

Usually ships in 3-6 days

0
