22162 - Gravely Rotary Cultivator for 2-Wheel Tractor ROTARY CULTIVATOR Parts Diagram

Rotary Cultivator for 2-Wheel Tractor

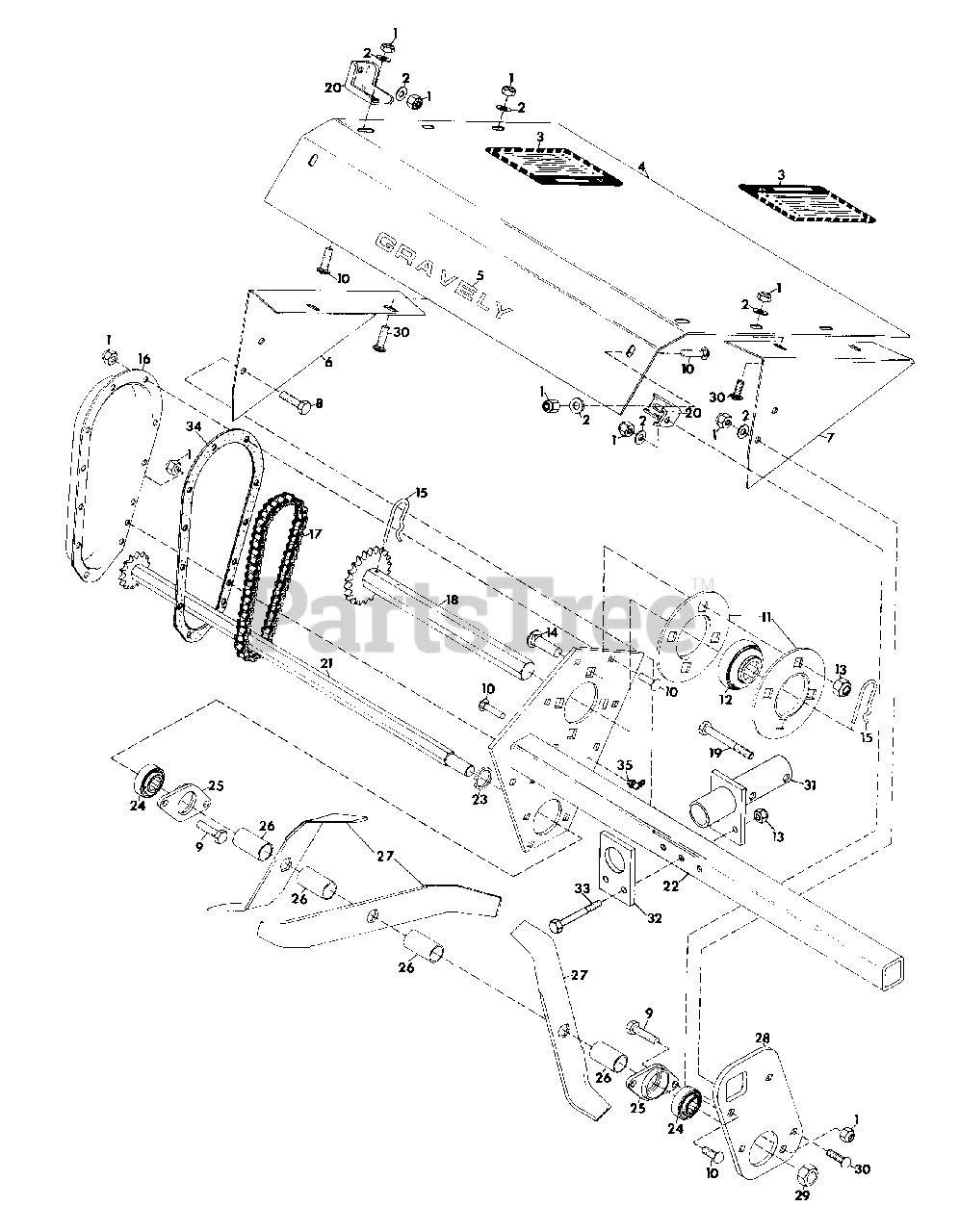

ROTARY CULTIVATOR Parts Diagram

  • Title

1

Gravely 419455

NUT, LOCK 5/16-18
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

2

Gravely 120393

WASHER, FLAT .344X.688X.065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 019479

DECAL, CAUTION
(Superseded to 05200700)

$

$

Not available

4

Gravely 022212

SHIELD, DIRT
(Superseded to 08521300)

$

$

Not available

5

Gravely 019365

DECAL, GRAVELY
(Superseded to 20278500)

$

$

Not available

6

Gravely 022201

SHIELD, SIDE R.H.
(Superseded to 08520700)

$

$

Not available

7

Gravely 022211

SHIELD, SIDE L.H.
(Superseded to 08521200)

$

$

Not available

8

Gravely 180078

BOLT, HEX 5/16-18X.875
(Superseded to 05901801)

$2.49

$

In Stock, only 2 left!

0

9

Gravely 180081

BOLT, HEX 5/16-18X1.25
(Superseded to 05901803)

$2.49

$

In Stock, Qty 12

0

10

Gravely 126353

BOLT, 5/16-18X.875 RD HD SQ NK
(Superseded to 06209200)

$

$

Not available

11

Gravely 022186

FLANGETTE, PRESSED STEEL
(Superseded to 05422600)

$14.99

$

Usually ships in 4-12 days

0

12

Gravely 022185

BEARING, HEX BORE
(Superseded to 05422500)

$

$

Not available

13

Gravely 435507

NUT, LOCK 1/2-13
(Superseded to 06500830)

$2.49

$

In Stock, only 3 left!

0

14

Gravely 126485

BOLT, 1/2-13X1.25 RD HD SQ NK
(Superseded to 06200325)

$5.99

$

Usually ships in 4-12 days

0

15

Gravely 013466

PIN, DEPTH ADJUSTING
(Superseded to 06706800)

$

$

Not available

16

Gravely 022200

WELDMENT, SPROCKET COVER
(Superseded to 08520600)

$

$

Not available

17

Gravely 022198

CHAIN, ROLLER .625 PITCH
(Superseded to 08601600)

$

$

Not available

18

Gravely 022187

WELDMENT, DRIVE SPROCKET
(Superseded to 08519700)

$

$

Not available

19

Gravely 180188

BOLT, HEX 1/2-13X2.75
(Superseded to 05901720)

$4.99

$

Usually ships in 4-12 days

0

20

Gravely 022199

BRACKET, SHIELD
(Superseded to 08520500)

$5.99

$

Usually ships in 4-12 days

0

21

Gravely 022194

WELDMENT, TINE SHAFT
(Superseded to 08520100)

$

$

Not available

22

Gravely 034434

WELDMENT, FRAME
(Superseded to 08537300)

$

$

Not available

23

Gravely 022197

SPACER, SPROCKET 1.185X1.37X.202
(Superseded to 08520400)

$

$

Not available

24

Gravely 022193

BEARING, HEX BORE 1 INCH
(Superseded to 05422700)

$

$

Not available

25

Gravely 022192

HOUSING, BEARING
(Superseded to 08520000)

$142.99

$

Usually ships in 4-12 days

0

26

Gravely 022202

SPACER, TINE
(Superseded to 08520800)

$

$

Not available

27

Gravely 022203

TINE, HOE
(Superseded to 08520900)

$45.99

$

Usually ships in 4-12 days

0

28

Gravely 022205

PLATE, SUPPORT
(Superseded to 08521000)

$20.99

$

Usually ships in 4-12 days

0

29

Gravely 426899

NUT, JAM 1-8 HEX
(Superseded to 06524700)

$

$

Not available

30

Gravely 126216

BOLT, 5/16-18X.75 RD HD SQ NK

$

$

Not available

31

Gravely 034433

WELDMENT, SUPPORT PIPE
(Superseded to 08537200)

$

$

Not available

32

Gravely 034432

BRACKET, SUPPORT
(Superseded to 08537100)

$

$

Not available

33

Gravely 180192

BOLT, HEX 1/2-13X3.5
(Superseded to 05901937)

$4.99

$

In Stock, only 1 left!

0

34

Gravely 034219

GASKET, SPROCKET COVER
(Superseded to 08533600)

$13.99

$

Usually ships in 4-12 days

0

35

Gravely 411032

FITTING, LUBE 90 DEG.
(Superseded to 07012800)

$4.99

$

In Stock, Qty 5

0
