22161 - Toro Recycler Walk-Behind Mower (SN: 200000001 - 200999999) (2000) ENGINE ASSEMBLY Parts Diagram

Recycler Walk-Behind Mower

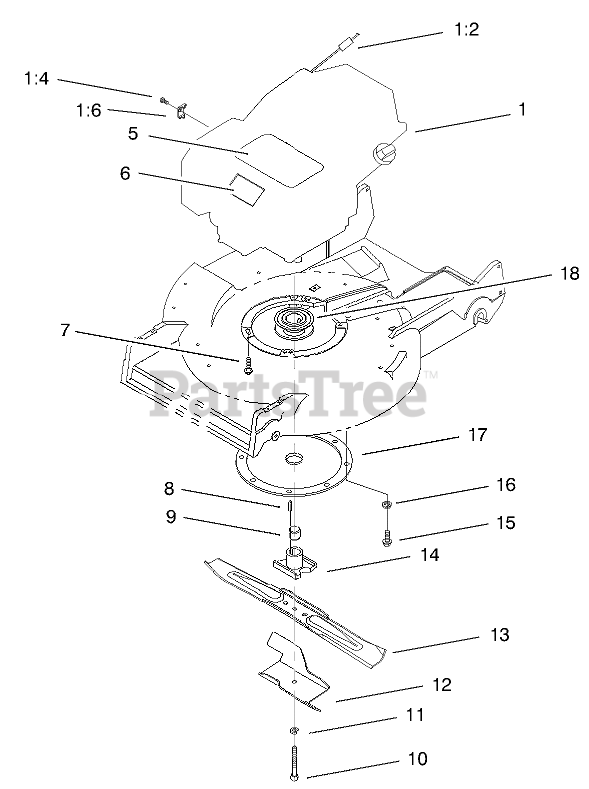

ENGINE ASSEMBLY Parts Diagram

  • Title

1

ASM-Engine Replacement

$

$

Not available

1:2

Toro 2210-316

STOP-ROPE

$7.99

$

Usually ships in 3-6 days

0

1:4

Toro 93-8470

SCREW-CLAMP

$

$

Not available

1:6

Toro 2210-249

CLAMP-CASING

$3.49

$

Usually ships in 3-6 days

0

5

Toro 98-2002

DECAL-GTS 200

$14.99

$

Usually ships in 3-6 days

0

6

Toro 84-4960

DECAL - PROLINE

$10.99

$

Usually ships in 3-6 days

0

7

Toro 32144-102

SCREW-HWH

$3.49

$

Usually ships in 3-6 days

0

8

Toro 27-6300

KEY-SQUARE

$6.49

$

In Stock, only 1 left!

0

9

Toro 52-2190

SPACER-BLADE RETAINER

$11.99

$

Usually ships in 3-6 days

0

10

Toro 26-0670

SCREW-BLADE

$

$

Not available

11

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

12

Toro 92-1599-03

STIFFENER-BLADE

$79.99

$

Usually ships in 3-6 days

0

13

Toro 14-9419

Blade
(Superseded to 91-2256-03)

$36.99

$

In Stock, only 1 left!

0

14

Toro 52-2170

RETAINER-BLADE
(Superseded to 52-2170-03)

$75.99

$

In Stock, only 1 left!

0

15

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

16

Toro 3254-6

WASHER-LOCK, INTERNAL

$0.99

$

Usually ships in 3-6 days

0

17

Toro 65-5860

PROTECTOR-CRANKSHAFT
(Superseded to 125-8370)

$104.99

$

Usually ships in 3-6 days

0

18

Toro 46-7910

PULLEY-DRIVER

$36.99

$

In Stock, only 2 left!

0
