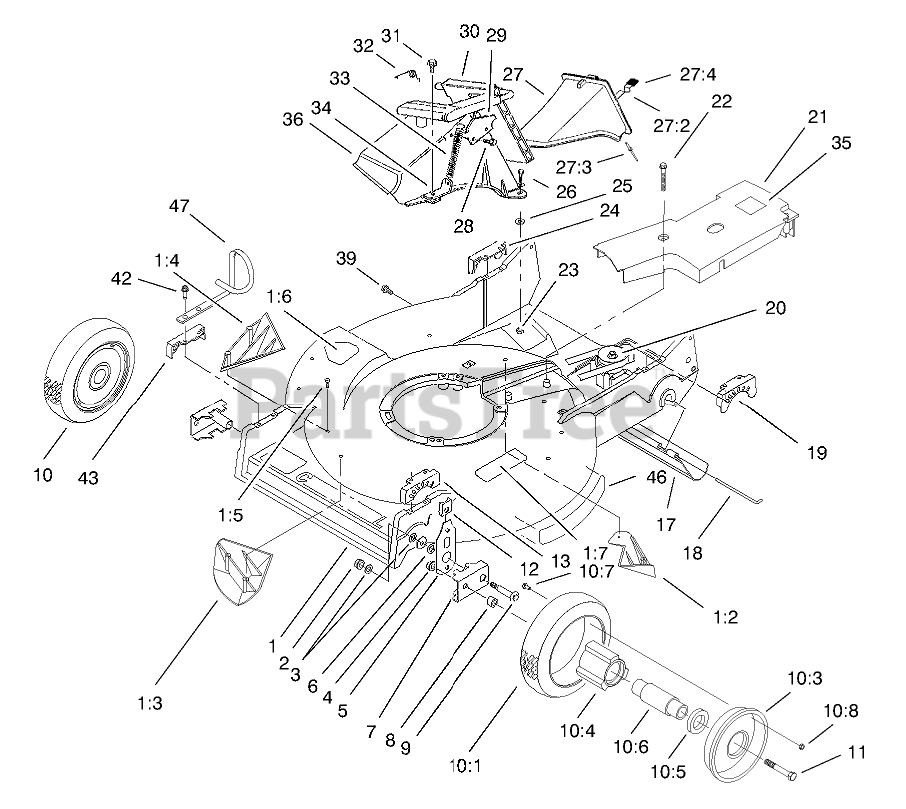

22161 - Toro Recycler Walk-Behind Mower (SN: 089000001 - 089999999) (1998) HOUSING ASSEMBLY Parts Diagram

Recycler Walk-Behind Mower

HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 98-7139

HOUSING ASM

$429.99

$

Usually ships in 3-6 days

0

1:2

Toro 92-1750

KICKER-REAR

$21.99

$

In Stock, only 3 left!

0

1:3

Toro 92-1720

KICKER-FRONT

$23.99

$

In Stock, only 2 left!

0

1:4

Toro 92-1730

KICKER-RH

$23.99

$

In Stock, only 2 left!

0

1:5

Toro 32144-111

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

1:6

Toro 39-5770

DECAL-DANGER

$8.99

$

In Stock, Qty 8

0

1:7

Toro 71-1280

DECAL-INSTRUCTION, SAFETY

$31.99

$

In Stock, Qty 13

0

2

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

3

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 18

0

4

Toro 32152-2

NUT-LOCK, CONE

$2.99

$

In Stock, Qty 18

0

5

Toro 66-7560

FRONT SPRING ARM ASM

$13.99

$

In Stock, Qty 7

0

6

Toro 257-3

WASHER-THRUST

$15.99

$

In Stock, only 2 left!

0

7

Toro 61-8300

ARM-PIVOT, FRONT

$29.99

$

In Stock, only 2 left!

0

8

Toro 52-2480

SPACER-WHEEL

$6.49

$

In Stock, only 2 left!

0

9

Toro 27-6232

BOLT-WHEEL
(Superseded to 114-3468)

$5.49

$

In Stock, Qty 20+

0

10

Toro 53-7720

WHEEL AND TIRE ASM
(Superseded to 121-1380)

$101.99

$

In Stock, only 3 left!

0

10:1

Toro 53-7740

TIRE

$34.99

$

In Stock, only 3 left!

0

10:3

Toro 53-7780

Wheel-Half
(Superseded to 121-1365-06)

$19.99

$

In Stock, only 2 left!

0

10:4

Toro 52-2410

HUB-BEARING

$33.99

$

In Stock, Qty 14

0

10:5

Toro 52-2450

BEARING-WHEEL

$18.99

$

In Stock, Qty 20+

0

10:6

Toro 52-2440

SPACER-BEARING

$9.49

$

In Stock, Qty 5

0

10:7

Toro 321-2

SCREW-HH

$3.49

$

In Stock, only 1 left!

0

10:8

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 9

0

10:2

ASM-Wheel

Note: Included in a service kit or in an assembly

$

$

Not available

11

Toro 323-12

SCREW-HH

$2.49

$

In Stock, Qty 10

0

12

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 8

0

13

Toro 49-8760

QUADRANT-FRONT, LH

$27.99

$

In Stock, only 4 left!

0

17

Toro 44-0580

SHIELD-TRAILING
(Superseded to 112-9989)

$28.99

$

In Stock, Qty 8

0

18

Toro 33-3208

ROD-SHIELD

$15.99

$

In Stock, Qty 12

0

19

Toro 49-8740

QUADRANT-REAR, LH

$27.99

$

In Stock, only 4 left!

0

20

Toro 74-1860

GEAR CASE ASM

$752.99

$

Usually ships in 3-6 days

0

21

Toro 98-3214

COVER-BELT

$

$

Not available

22

Toro 37-7260

SCREW-HHFTF

$6.49

$

In Stock, only 2 left!

0

23

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 9

0

24

Toro 49-8750

QUADRANT-REAR, RH

$27.99

$

In Stock, only 4 left!

0

25

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

26

Toro 321-7

SCREW-HH

$5.49

$

In Stock, only 1 left!

0

27

Toro 77-0500

DISCHARGE PLUG ASM

$75.99

$

Usually ships in 3-6 days

0

27:2

Toro 76-4640

LATCH-PLUG, DISCHARGE

$22.99

$

Usually ships in 3-6 days

0

27:3

Toro 3295-35

RIVET-HEAD, FLAT

$2.99

$

Usually ships in 3-6 days

0

27:4

Toro 76-4650

GRIP-LATCH

$5.99

$

Usually ships in 3-6 days

0

28

Toro 46-8090

SCREW-PLASTITE

$

$

Not available

29

Toro 93-3154

LATCH-PLATE

$5.99

$

In Stock, Qty 5

0

30

Toro 93-7351

DISCHARGE DOOR ASM

$116.99

$

In Stock, only 1 left!

0

31

Toro 46-6811

SCREW-HWH

$3.49

$

In Stock, only 3 left!

0

32

Toro 80-3770

RETAINER-DOOR

$6.99

$

In Stock, only 2 left!

0

33

Toro 76-4660

SPRING-DOOR

$11.99

$

In Stock, Qty 5

0

34

Toro 71-9350

BRACKET-SPRING

$14.99

$

Usually ships in 3-6 days

0

35

Toro 52-2620

LABEL-GREASE
(Superseded to 119-7894)

$3.49

$

In Stock, only 2 left!

0

36

Toro 82-9152

TUNNEL-DISCHARGE

$160.99

$

Usually ships in 3-6 days

0

39

Toro 46-6810

SCREW AND WASHER ASM

$5.49

$

Usually ships in 3-6 days

0

42

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

43

Toro 49-8770

QUADRANT-FRONT, RH

$27.99

$

In Stock, Qty 6

0

46

Toro 92-7988

DECAL-RECYCLER
(Superseded to 106-0689)

$8.49

$

In Stock, Qty 20+

0

47

Toro 98-9227

GUARD - PRIMER

$

$

Not available
