22157 - Toro 53cm Recycler Walk-Behind Mower (SN: 200000001 - 200999999) (2000) FUEL TANK ASSEMBLY Parts Diagram

53cm Recycler Walk-Behind Mower

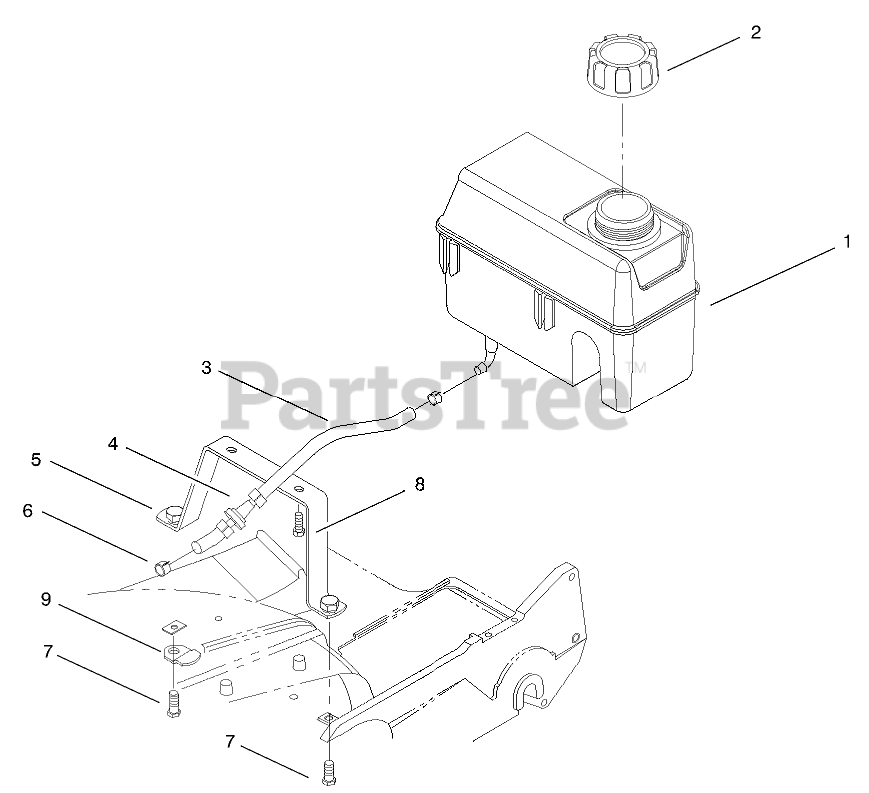

FUEL TANK ASSEMBLY Parts Diagram

  • Title
1

Toro 93-3166

TANK - FUEL
(Superseded to 117-3510)

$94.99

$

In Stock, only 3 left!

0

2

Toro 93-7198

CAP-GAS

$15.99

$

In Stock, Qty 7

0

3

Toro 51-3210

HOSE-FUEL

$4.49

$

Usually ships in 3-6 days

0

4

Toro 71-9280

FILTER-FUEL
(Superseded to 139-5916)

$9.49

$

In Stock, Qty 20+

0

5

Toro 84-9170-03

TANK BASE

$

$

Not available

6

Toro 2412-95

CLAMP-FUEL LINE

$1.99

$

In Stock, Qty 8

0

7

Toro 95-1727

SCREW-TAPTITE

$2.99

$

In Stock, Qty 20+

0

8

Toro 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0

9

Toro 84-8930

SHIELD-RETAINER

$3.49

$

Usually ships in 3-6 days

0
