22157 - Toro 53cm Recycler Walk-Behind Mower (SN: 099000001 - 099999999) (1999) ENGINE GTS-200 Parts Diagram

53cm Recycler Walk-Behind Mower

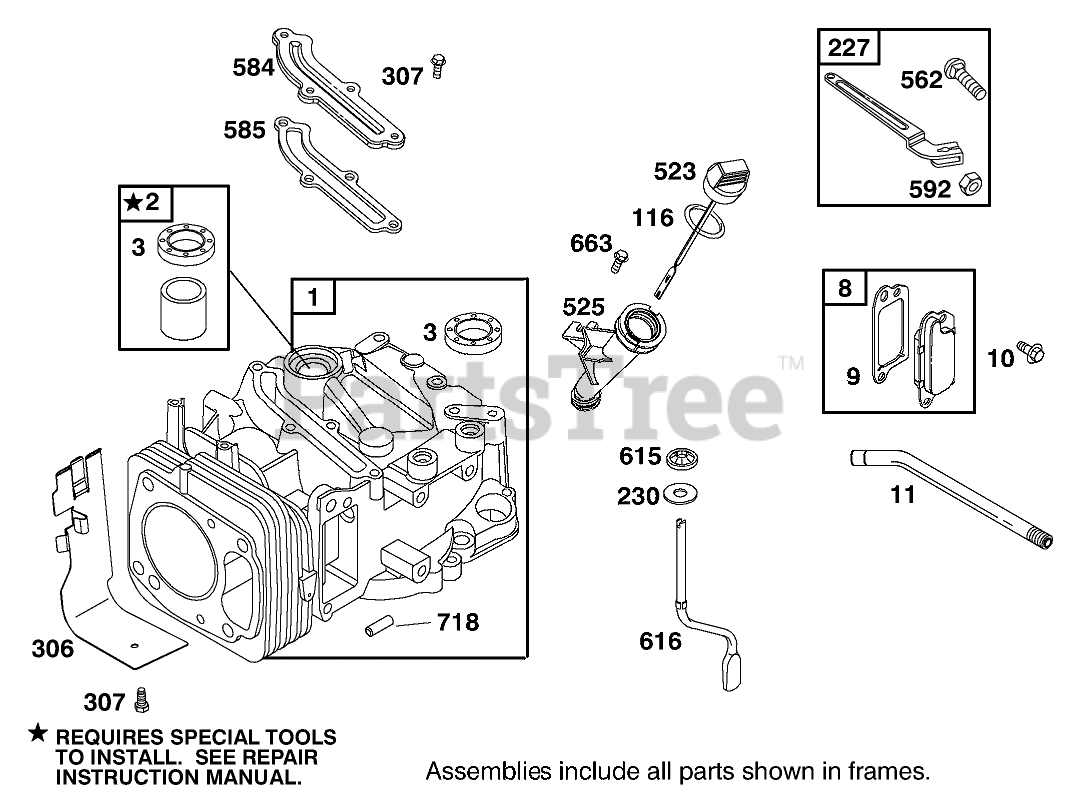

ENGINE GTS-200 Parts Diagram

  • Title
1

Toro 99-0900

CYLINDER ASM

$601.99

$

Usually ships in 3-6 days

0

2

Toro 99-0911

BUSHING

$

$

Not available

3

Toro 99-0912

Oil Seal
(Superseded to 77-9060)

Note: Included in Gasket Set-Part No. 99-0902

$

$

Not available

8

Toro 77-9260

BREATHER ASM

$

$

Not available

9

Toro 99-0913

GASKET-BREATHER

Note: Included in Gasket Set-Part No. 99-0902

$4.49

$

Usually ships in 3-6 days

0

9

Toro 99-0913

GASKET-BREATHER

Note: Included in Vavel Overhaul Gasket Set-Part No. 99-0904

$4.49

$

Usually ships in 3-6 days

0

10

Toro 99-0914

SCREW-HH

$

$

Not available

11

Toro 99-0915

TUBE-BREATHER

$

$

Not available

116

Toro 99-0916

O-RING

Note: Included in Gasket Set-Part No. 99-0902

$8.99

$

Usually ships in 3-6 days

0

227

Toro 99-0917

GOVERNOR LEVER ASM

$

$

Not available

230

Toro 99-0918

WASHER-CRANK, GOVERNOR

$

$

Not available

306

Toro 99-0919

SHIELD-CYLINDER

$

$

Not available

307

Toro 99-0920

SCREW-HH

$

$

Not available

523

Toro 77-7260

DIPSTICK-OIL

$

$

Not available

525

Toro 99-0906

TUBE-FILTER, OIL

$

$

Not available

562

Toro 99-0921

Screw-HH
(Superseded to 94-1670)

$

$

Not available

584

Toro 99-0922

BAFFLE-CYLINDER

$

$

Not available

585

Toro 99-0923

GASKET-BREATHER

Note: Included in Gasket Set-Part No. 99-0902

$12.99

$

Usually ships in 3-6 days

0

592

Toro 99-0924

NUT-HEX

$

$

Not available

615

Toro 99-0925

FASTENER

$

$

Not available

616

Toro 99-0926

CRANK-GOVERNOR

$

$

Not available

663

Toro 99-0927

SCREW-HH

$7.99

$

Usually ships in 3-6 days

0

718

Toro 99-0928

SLEEVE-DOWEL

$

$

Not available
