22156 - Toro 21" Walk-Behind Mower (SN: 310000001 - 310999999) (2010) HANDLE ASSEMBLY Parts Diagram

21" Walk-Behind Mower

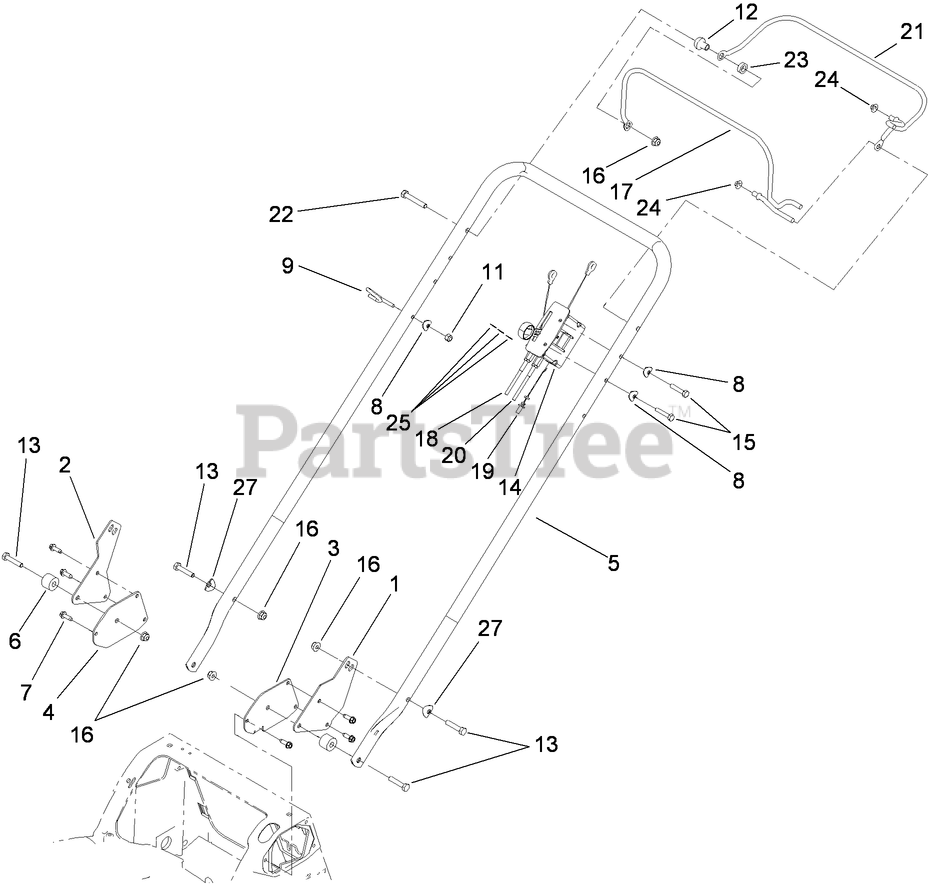

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 110-9494-03

SUPPORT-STRUT, LH

$27.99

$

Usually ships in 3-6 days

0

2

Toro 110-9495-03

SUPPORT-STRUT, RH

$27.99

$

Usually ships in 3-6 days

0

3

Toro 114-2760-03

PLATE-HANDLE, TRACTION

$29.99

$

Usually ships in 3-6 days

0

4

Toro 110-9471-03

PLATE-HANDLE

$12.99

$

Usually ships in 3-6 days

0

5

Toro 107-4162-03

HANDLE
(Superseded to 119-7892-03)

$

$

Not available

6

Toro 112-8797-03

SPACER

$4.99

$

Usually ships in 3-6 days

0

7

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

8

Toro 3-7501

WASHER

$6.49

$

In Stock, Qty 13

0

9

Toro 114-2775

GUIDE-ROPE

$10.99

$

Usually ships in 3-6 days

0

11

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

12

Toro 49-1630

SPACER-SUPPORT

$8.99

$

Usually ships in 3-6 days

0

13

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

14

Toro 108-2645

CONTROL-HEAD, THROTTLE

$121.99

$

In Stock, only 1 left!

0

15

Toro 321-13

SCREW-HH

$4.99

$

In Stock, Qty 10

0

16

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

17

Toro 114-2768-03

BAIL-BRAKE

$71.99

$

Usually ships in 3-6 days

0

18

Toro 114-2771

CABLE-BRAKE

$74.99

$

Usually ships in 3-6 days

0

19

Toro 110-4923

THROTTLE CABLE ASM

$45.99

$

Usually ships in 3-6 days

0

20

Toro 115-3170

CABLE-TRACTION

$80.99

$

In Stock, only 1 left!

0

21

Toro 114-2769-03

BAIL-TRACTION

$54.99

$

Usually ships in 3-6 days

0

22

Toro 322-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

23

Toro 256-276

SPACER-NYLON

$2.99

$

Usually ships in 3-6 days

0

24

Toro 109-0917

NUT-PUSH
(Superseded to 32112-11)

$1.49

$

In Stock, only 3 left!

0

25

Toro 32151-86

E-RING

$2.99

$

In Stock, Qty 20+

0

27

Toro 107-3844

WASHER

$1.49

$

In Stock, Qty 20+

0
