22156 - Toro 21" Walk-Behind Mower (SN: 290000001 - 290999999) (2009) OIL PAN ASSEMBLY Parts Diagram

21" Walk-Behind Mower

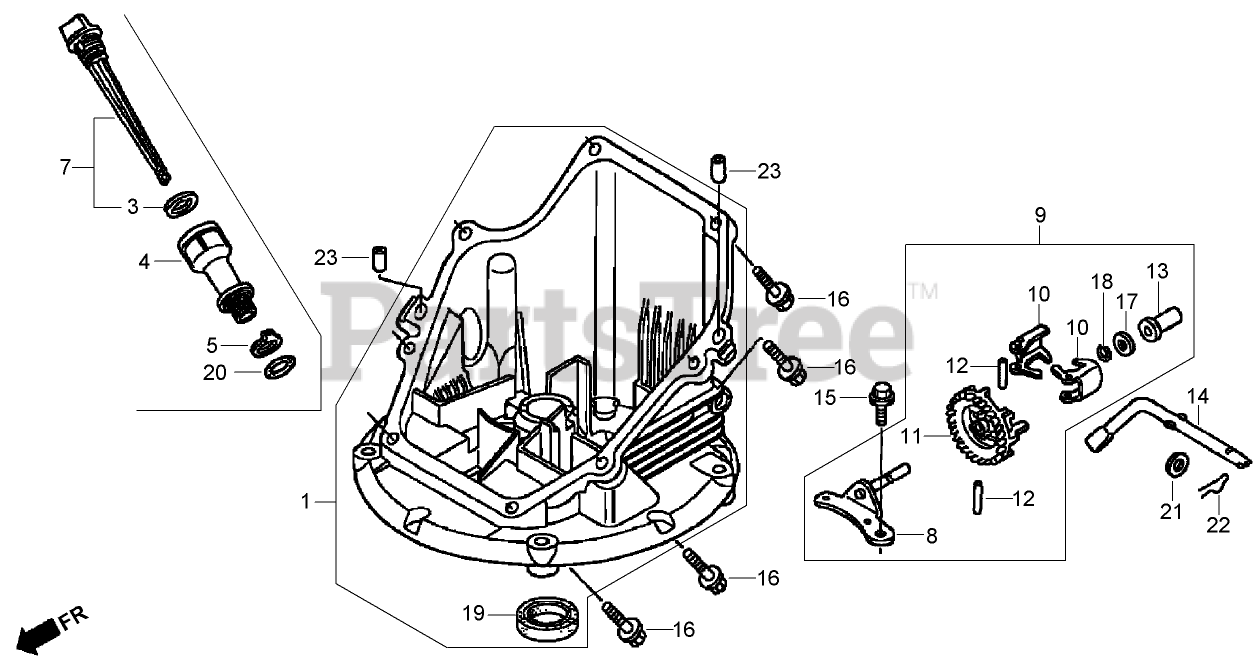

OIL PAN ASSEMBLY Parts Diagram

  • Title

1

Toro 11300-Z0Y-406

OIL PAN ASM

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

3

Honda 15625-ZE6-000

GASKET-CAP, OIL FILLER

Note: Obtain parts from www.honda-engines.com

$4.99

$

In Stock, only 1 left!

0

4

Honda 15631-ZM0-000

EXTENSION-FILLER, OIL

Note: Obtain parts from www.honda-engines.com

$10.99

$

In Stock, only 1 left!

0

5

Honda 15639-ZM0-000

WASHER-LOCK, EXTENSION

Note: Obtain parts from www.honda-engines.com

$0.99

$

In Stock, Qty 8

0

7

Honda 15650-ZM0-801

OIL LEVEL GAUGE ASM

Note: Obtain parts from www.honda-engines.com

$7.99

$

In Stock, only 3 left!

0

8

Honda 16508-ZM0-010

SHAFT-HOLDER, GOVERNOR

Note: Obtain parts from www.honda-engines.com

$7.49

$

Usually ships in 3-6 days

0

9

Honda 16510-ZM0-010

GOVERNOR ASM

Note: Obtain parts from www.honda-engines.com

$22.99

$

In Stock, only 2 left!

0

10

Honda 16511-ZL8-000

WEIGHT-GOVERNOR

Note: Obtain parts from www.honda-engines.com

$1.99

$

In Stock, only 4 left!

0

11

Honda 16512-ZM0-000

HOLDER-WEIGHT, GOVERNOR

Note: Obtain parts from www.honda-engines.com

$13.99

$

Usually ships in 3-6 days

0

12

Honda 16513-ZE1-000

PIN-WEIGHT, GOVERNOR

Note: Obtain parts from www.honda-engines.com

$2.49

$

Usually ships in 3-6 days

0

13

Honda 16531-ZE1-000

SLIDER-GOVERNOR

Note: Obtain parts from www.honda-engines.com

$3.49

$

In Stock, Qty 8

0

14

Honda 16541-ZM0-000

SHAFT-ARM, GOVERNOR

Note: Obtain parts from www.honda-engines.com

$5.49

$

In Stock, only 2 left!

0

15

Honda 90014-952-000

BOLT-FLANGE (6X14) (C T200)

Note: Obtain parts from www.honda-engines.com

$3.49

$

In Stock, only 3 left!

0

16

Honda 90121-952-000

BOLT-FLANGE (6X25) (C T 200)

Note: Obtain parts from www.honda-engines.com

$2.99

$

In Stock, Qty 20+

0

17

Honda 90451-ZE1-000

WASHER-THRUST (6MM)

Note: Obtain parts from www.honda-engines.com

$2.49

$

In Stock, only 2 left!

0

18

Honda 90602-ZE1-000

CLIP-HOLDER, GOVERNOR

Note: Obtain parts from www.honda-engines.com

$1.99

$

In Stock, only 3 left!

0

19

Honda 91202-ZL8-003

SEAL-OIL (28X41.25X6)

Note: Obtain parts from www.honda-engines.com

$7.49

$

In Stock, Qty 16

0

20

Honda 91356-MA6-005

O-RING (14.8X24) (N O K)

Note: Obtain parts from www.honda-engines.com

$2.49

$

In Stock, only 1 left!

0

21

Honda 94101-06800

WASHER-PLAIN (6MM)

Note: Obtain parts from www.honda-engines.com

$0.99

$

In Stock, Qty 20+

0

22

Honda 94251-08000

PIN-LOCK (8MM)

Note: Obtain parts from www.honda-engines.com

$1.99

$

In Stock, Qty 9

0

23

Honda 94301-08200

PIN-DOWEL (8X20)

Note: Obtain parts from www.honda-engines.com

$2.99

$

Usually ships in 3-6 days

0
