22156 - Toro 21" Walk-Behind Mower (SN: 290000001 - 290999999) (2009) ENGINE & BLADE ASSEMBLY Parts Diagram

21" Walk-Behind Mower

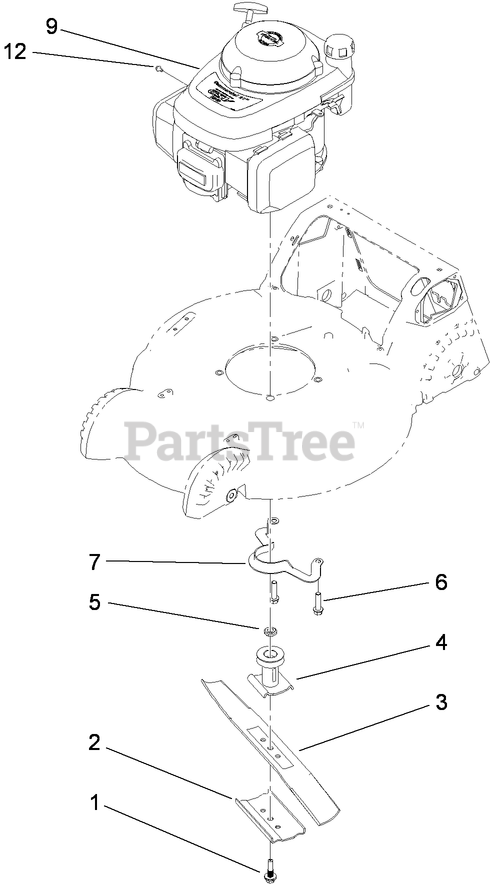

ENGINE & BLADE ASSEMBLY Parts Diagram

  • Title
1

Toro 117-5270

BOLT-BLADE

$

$

Not available

2

Toro 108-3766-03

SUPPORT-BLADE

$10.99

$

In Stock, Qty 11

0

3

Toro 108-3759-03

BLADE-BAGGING

$28.99

$

In Stock, Qty 19

0

4

Toro 114-2774

DRIVER-BLADE

$33.99

$

In Stock, only 1 left!

0

5

Toro 106-3999

Spacer-Driver

$3.49

$

In Stock, only 4 left!

0

6

Toro 32144-102

SCREW-HWH

$3.49

$

Usually ships in 3-6 days

0

7

Toro 108-8110-03

GUIDE-BELT

$15.99

$

In Stock, only 1 left!

0

9

ENGINE-HONDA, GSV190LA A3T

Note: Not serviced separately

$

$

Not available

9

ENGINE-HONDA, GSV190LA A3T

Note: Obtain parts from www.honda-engines.com

$

$

Not available

12

Toro 98-1394

SCREW-HWH

$4.49

$

In Stock, only 1 left!

0
