22155 - Toro 21" Walk-Behind Mower (SN: 313000001 - 313999999) (2013) HOUSING, FRONT END AND TUNNEL ASSEMBLY Parts Diagram

21" Walk-Behind Mower

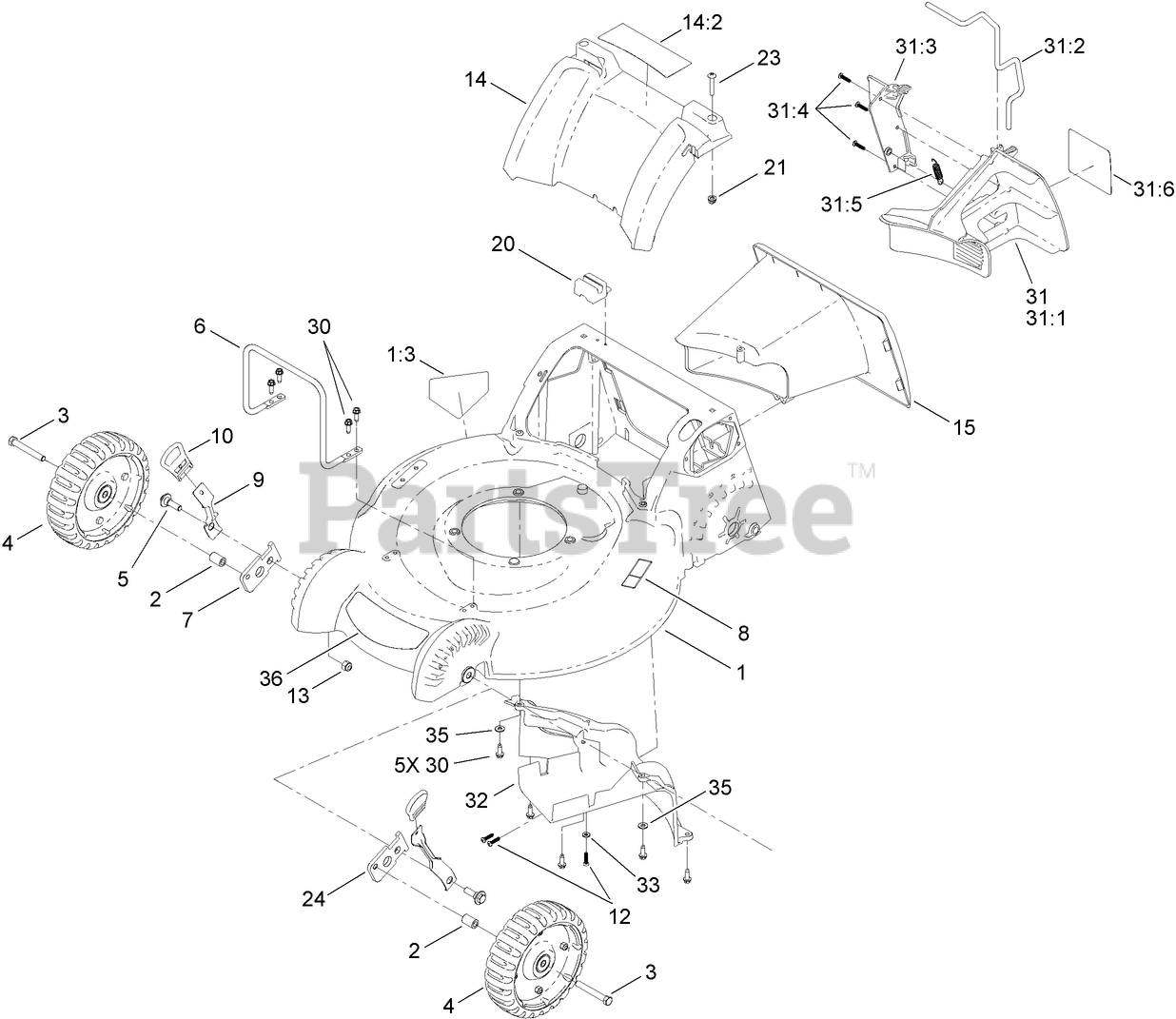

HOUSING, FRONT END AND TUNNEL ASSEMBLY Parts Diagram

  • Title
1

Toro 117-5266

HOUSING ASM

$284.99

$

Usually ships in 3-6 days

0

1:3

Toro 94-8072

DECAL-DANGER

$6.49

$

In Stock, Qty 11

0

2

Toro 114-2754

SPACER

$11.99

$

In Stock, only 4 left!

0

3

Toro 323-13

SCREW-HH
(Superseded to 3231-25)

$1.99

$

In Stock, Qty 20+

0

4

Toro 117-5252

8-INCH WHEEL ASM

$130.99

$

In Stock, only 2 left!

0

5

Toro 614672

SCREW-SHOULDER, HWH

$2.99

$

In Stock, only 4 left!

0

6

Toro 110-9475-03

GUARD-ENGINE

$74.99

$

Usually ships in 3-6 days

0

7

Toro 110-9421

ARM-PIVOT, RH

$18.99

$

In Stock, only 2 left!

0

8

Toro 121-1449

DECAL-WARNING, BLOCK

$5.49

$

In Stock, only 2 left!

0

9

Toro 110-9434

ARM-SPRING, FRONT

$10.99

$

In Stock, Qty 8

0

10

Toro 110-0549

KNOB-HOC

$1.49

$

In Stock, Qty 20+

0

12

Toro 108-7476

SCREW-PLASTITE

$0.99

$

In Stock, Qty 20+

0

13

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

14

Toro 115-3177

REAR COVER ASM

$50.99

$

Usually ships in 3-6 days

0

14:2

Toro 114-2820

DECAL-WARNING

$7.49

$

Usually ships in 3-6 days

0

15

Toro 110-9455

TUNNEL

$44.99

$

Usually ships in 3-6 days

0

20

Toro 110-1786

MODULE-SWITCH

$63.99

$

Usually ships in 3-6 days

0

21

Toro 94-1610

NUT-CLIP

$1.49

$

In Stock, Qty 20+

0

23

Toro 108-0965

SCREW-PTH

$1.49

$

In Stock, Qty 11

0

24

Toro 110-9420

ARM-PIVOT, LH

$18.99

$

Usually ships in 3-6 days

0

30

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

31

Toro 110-9468

MULCH PLUG ASM

$64.99

$

In Stock, only 1 left!

0

31:1

Toro 110-9446

PLUG-MULCH, LH

$23.99

$

In Stock, only 4 left!

0

31:2

Toro 110-9448

LATCH-PLUG, MULCH

$40.99

$

In Stock, only 1 left!

0

31:3

Toro 110-9447

PLUG-MULCH, RH

$10.99

$

In Stock, only 4 left!

0

31:4

Toro 108-7476

SCREW-PLASTITE

$0.99

$

In Stock, Qty 20+

0

31:5

Toro 110-9458

SPRING-EXTENSION

$3.99

$

In Stock, Qty 7

0

31:6

Toro 110-9457

DECAL-PLUG, MULCH

$9.99

$

Usually ships in 3-6 days

0

32

Toro 110-9413

BAFFLE-REAR

$33.99

$

In Stock, only 1 left!

0

33

Toro 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

35

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

36

Toro 117-5247

DECAL-HOUSING, FRONT

$10.99

$

Usually ships in 3-6 days

0
