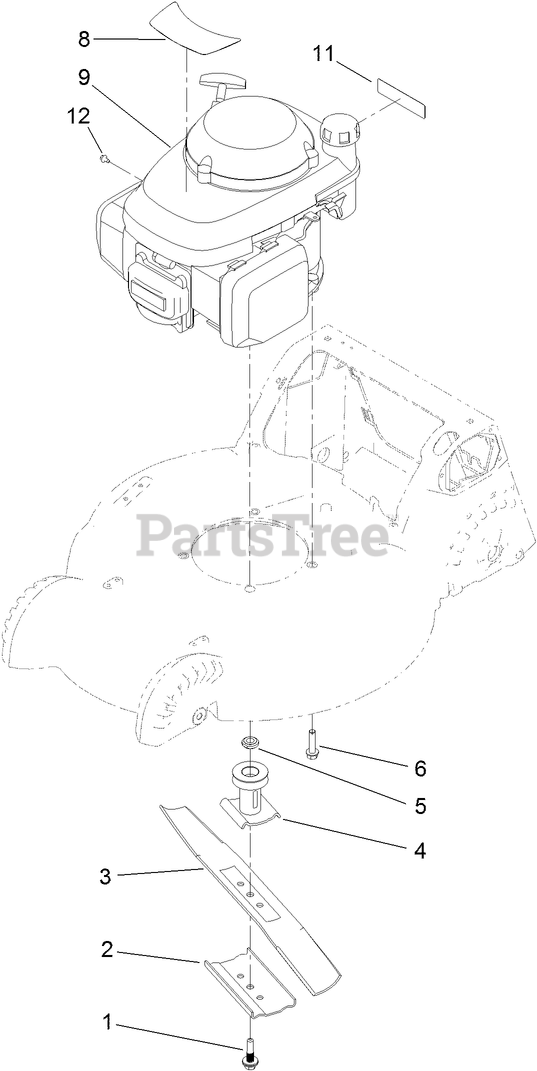

22155 - Toro 21" Walk-Behind Mower (SN: 313000001 - 313999999) (2013) ENGINE AND BLADE ASSEMBLY Parts Diagram
21" Walk-Behind Mower
ENGINE AND BLADE ASSEMBLY Parts Diagram
Toro 117-5270
BOLT-BLADE
$
$
Not available
Toro 108-3766-03
SUPPORT-BLADE
$10.99
$
In Stock, Qty 9
Toro 108-3759-03
BLADE-BAGGING
$28.99
$
In Stock, Qty 19
Toro 114-2774
DRIVER-BLADE
$34.99
$
In Stock, only 1 left!
Toro 106-3999
Spacer-Driver
$3.49
$
In Stock, only 4 left!
Toro 32144-102
SCREW-HWH
$3.49
$
Usually ships in 3-6 days
Toro 117-5245
DECAL-ENGINE
$12.99
$
In Stock, only 1 left!
9
ENGINE-HONDA, GSV190
Note: Not serviced separately
$
$
Not available
9
ENGINE-HONDA, GSV190
Note: Obtain parts from www.honda-engines.com
$
$
Not available
Toro 117-2718
DECAL-ARRESTER, SPARK
$7.99
$
In Stock, only 1 left!
Toro 98-1394
SCREW-HWH
$4.49
$
In Stock, only 1 left!
