22154 B - Toro Walk-Behind Mower (SN: 069000001 - 069999999) (1996) HOUSING ASSEMBLY Parts Diagram

Walk-Behind Mower

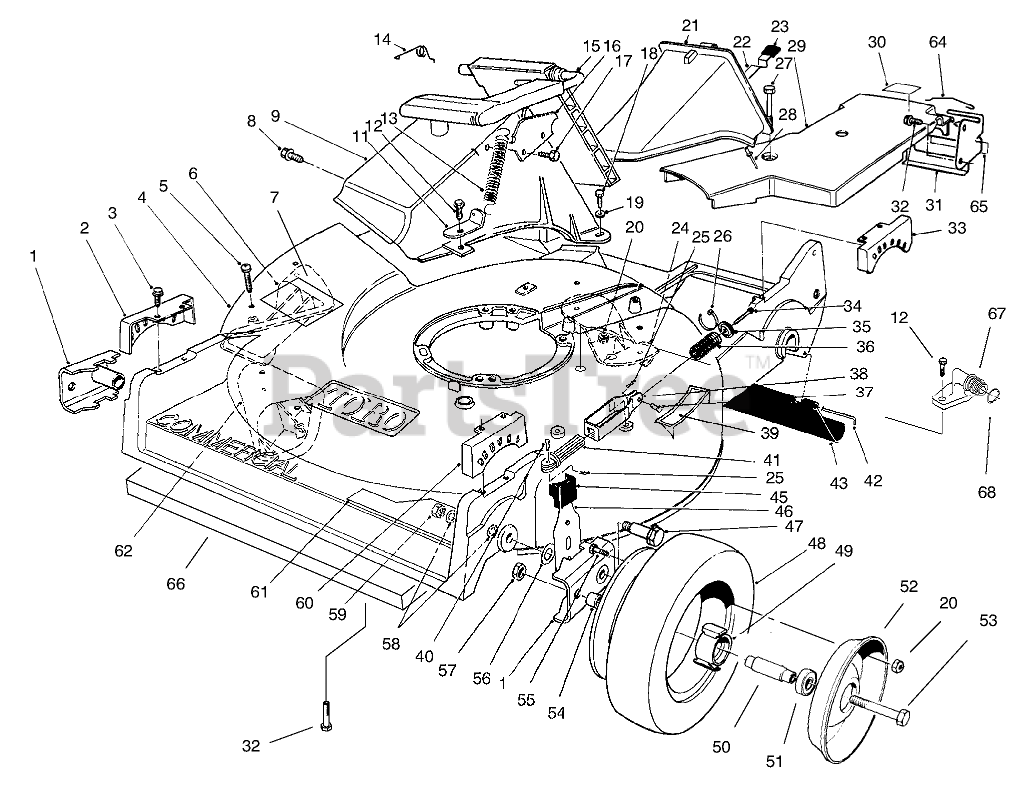

HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 61-8300

ARM-PIVOT, FRONT

$29.99

$

In Stock, only 2 left!

0

2

Toro 49-8770

QUADRANT-FRONT, RH

$27.99

$

In Stock, Qty 6

0

3

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

4

Toro 95-5613

Housing-Commercial (Incl. Ref. #5-7, 12, 24, 32, 62, & 66-68 pg. 1-2)(Incl. Ref. #28 pg. 4)
(Superseded to 98-7144)

$

$

Not available

5

Toro 32144-111

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

6

Toro 92-1730

KICKER-RH

$23.99

$

In Stock, only 2 left!

0

7

Toro 93-6654

DECAL-DANGER

$

$

Not available

8

Toro 46-6810

SCREW AND WASHER ASM

$5.49

$

Usually ships in 3-6 days

0

9

Toro 82-9151

TUNNEL-DISCHARGE

$192.99

$

Usually ships in 3-6 days

0

11

Toro 71-9350

BRACKET-SPRING

$14.99

$

Usually ships in 3-6 days

0

12

Toro 46-6811

SCREW-HWH

$3.49

$

In Stock, only 3 left!

0

13

Toro 76-4660

SPRING-DOOR

$11.99

$

In Stock, Qty 5

0

14

Toro 80-3770

RETAINER-DOOR

$6.99

$

In Stock, only 2 left!

0

15

Toro 77-0200

DOOR ASSEMBLY

$

$

Not available

16

Toro 76-4570

DOOR LATCH PLATE

$

$

Not available

17

Toro 46-8090

SCREW-PLASTITE

$

$

Not available

18

Toro 321-7

SCREW-HH

$5.49

$

In Stock, only 1 left!

0

19

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

20

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 12

0

21

Toro 77-0502

Plug-Discharge (Incl. Ref. #22, 23, & 28)

$

$

Not available

22

Toro 76-4640

LATCH-PLUG, DISCHARGE

$22.99

$

Usually ships in 3-6 days

0

23

Toro 76-4650

GRIP-LATCH

$5.99

$

Usually ships in 3-6 days

0

24

Toro 92-1750

KICKER-REAR

$21.99

$

In Stock, only 3 left!

0

25

Toro 3272-1

PIN-COTTER

$0.99

$

In Stock, Qty 16

0

26

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

27

Toro 37-7260

SCREW-HHFTF

$6.49

$

In Stock, only 2 left!

0

28

Toro 3295-35

RIVET-HEAD, FLAT

$2.99

$

Usually ships in 3-6 days

0

29

Toro 86-5231

BELT COVER (MACHINED)

$

$

Not available

30

Toro 93-6664

DECAL-GREASE

$9.49

$

Usually ships in 3-6 days

0

31

Toro 74-1741

BRACKET-ADJUSTMENT, TRACTION

$24.99

$

Usually ships in 3-6 days

0

32

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

33

Toro 49-8740

QUADRANT-REAR, LH

$27.99

$

In Stock, only 4 left!

0

Toro 49-8750

QUADRANT-REAR, RH

Note: Not illustrated

$27.99

$

In Stock, only 4 left!

0

34

Toro 46-7040

SCREW-HWHTF

$2.99

$

Usually ships in 3-6 days

0

35

Toro 65-5280

RETAINER-SPRING

$3.49

$

Usually ships in 3-6 days

0

36

Toro 84-9100

SPRING

$12.99

$

Usually ships in 3-6 days

0

37

Toro 84-9040

PIN-CABLE

$12.99

$

Usually ships in 3-6 days

0

38

Toro 84-8880

Bracket-Spring
(Superseded to 84-8880-03)

$

$

Not available

39

Toro 62-3950

DECAL - STEP PAD INT'L

$

$

Not available

40

Toro 84-9050

PIN-SPRING

$13.99

$

Usually ships in 3-6 days

0

41

Toro 84-8870

GUIDE-SPRING
(Superseded to 106-0842)

$

$

Not available

42

Toro 33-3208

ROD-SHIELD

$15.99

$

In Stock, Qty 12

0

43

Toro 44-0580

SHIELD-TRAILING
(Superseded to 112-9989)

$28.99

$

In Stock, Qty 8

0

45

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 8

0

46

Toro 66-7560

FRONT SPRING ARM ASM

$13.99

$

In Stock, Qty 7

0

47

Toro 27-6232

BOLT-WHEEL
(Superseded to 114-3468)

$5.49

$

In Stock, Qty 20+

0

48

Toro 53-7740

TIRE

$34.99

$

In Stock, only 3 left!

0

49

Toro 52-2410

HUB-BEARING

$33.99

$

In Stock, Qty 14

0

50

Toro 52-2440

SPACER-BEARING

$9.49

$

In Stock, Qty 5

0

51

Toro 52-2450

BEARING-WHEEL

$18.99

$

In Stock, Qty 20+

0

52

Toro 53-7780

Wheel-Half
(Superseded to 121-1365-06)

$19.99

$

In Stock, only 2 left!

0

53

Toro 323-12

SCREW-HH

$2.49

$

In Stock, Qty 10

0

54

Toro 52-2480

SPACER-WHEEL

$6.49

$

In Stock, only 2 left!

0

55

Toro 321-2

SCREW-HH

$3.49

$

In Stock, only 1 left!

0

56

Toro 257-3

WASHER-THRUST

$15.99

$

In Stock, only 2 left!

0

57

Toro 32152-2

NUT-LOCK, CONE

$2.99

$

In Stock, Qty 18

0

58

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 18

0

59

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

60

Toro 49-8760

QUADRANT-FRONT, LH

$27.99

$

In Stock, only 4 left!

0

61

Toro 92-8781

DECAL - DECK

$

$

Not available

62

Toro 92-1720

KICKER-FRONT

$23.99

$

In Stock, only 2 left!

0

64

Toro 46-7030

RETAINER-CABLE

$6.49

$

In Stock, only 2 left!

0

65

Toro 74-1970

DECAL-POSITION, GEAR

$7.49

$

In Stock, Qty 6

0

66

Toro 46-5400

Shield-front
(Superseded to 46-5400-03)

$65.99

$

Usually ships in 3-6 days

0

67

Toro 95-2747

FITTING-WASHOUT
(Superseded to 133-9289)

$6.49

$

In Stock, Qty 5

0

68

Toro 46-6290

O-RING

$2.99

$

In Stock, only 4 left!

0

Toro 53-7720

Wheel & Tire Assembly (Incl. Ref. #20, 48-52, & 55)
(Superseded to 121-1380)

Note: Not illustrated

$101.99

$

In Stock, only 3 left!

0
