22154 B - Toro Walk-Behind Mower (SN: 069000001 - 069999999) (1996) ENGINE GTS 150 Parts Diagram

Walk-Behind Mower

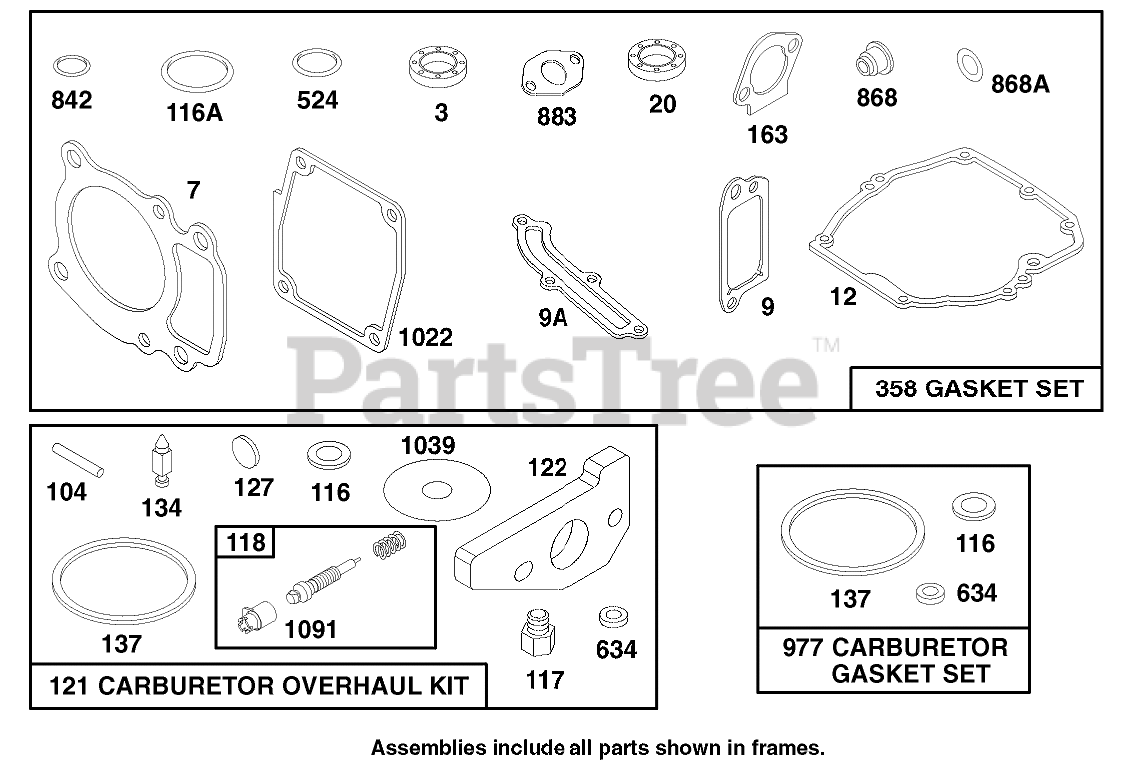

ENGINE GTS 150 Parts Diagram

  • Title

3

Toro 77-9060

SEAL - OIL

Note: Included in Gasket Set-Part No. 77-8900

$

$

Not available

7

Toro 77-7740

CYLINDER HEAD GASKET

Note: Included in Gasket Set-Part No. 77-8900

$31.99

$

In Stock, only 1 left!

0

9

Toro 77-9440

VALVE - SHUT-OFF

Note: Included in Gasket Set-Part No. 77-8900

$

$

Not available

9A

Toro 77-7410

GASKET-BREATHER
(Superseded to 99-0923)

Note: Included in Gasket Set-Part No. 77-8900

$13.99

$

Usually ships in 3-6 days

0

12

Toro 77-7550

ENGINE BASE GASKET

Note: Included in Gasket Set-Part No. 77-8900

$24.99

$

Usually ships in 3-6 days

0

20

Toro 77-7570

SEAL-OIL

Note: Included in Gasket Set-Part No. 77-8900

$24.99

$

In Stock, only 2 left!

0

104

Toro 77-8180

FLOAT HINGE PIN

Note: Included in Carburetor Gasket Set-Part No. 77-8920

$

$

Not available

116

Toro 77-8210

SEALING GASKET

Note: Included in Carburetor Gasket Set-Part No. 77-8930.

$7.49

$

In Stock, Qty 20+

0

116

Toro 77-8210

SEALING GASKET

Note: Included in Carburetor Gasket Set-Part No. 77-8920

$7.49

$

In Stock, Qty 20+

0

116A

Toro 77-7660

O RING SEAL

Note: Included in Gasket Set-Part No. 77-8900

$14.99

$

Usually ships in 3-6 days

0

117

Toro 77-9610

Jet-Main
(Superseded to 94-1672)

$

$

Not available

118

Toro 77-8230

VALVE KIT - NEEDLE

Note: Included in Carburetor Gasket Set-Part No. 77-8920

$20.99

$

Usually ships in 3-6 days

0

121

Toro 77-8920

CARBURATOR OVERHAUL KIT

$67.99

$

Usually ships in 3-6 days

0

122

Toro 77-7820

ADAPTER ASSEMBLY

Note: Included in Carburetor Gasket Set-Part No. 77-8920

$32.99

$

Usually ships in 3-6 days

0

127

Toro 77-8100

PLUG

Note: Included in Carburetor Gasket Set-Part No. 77-8920

$2.99

$

In Stock, only 1 left!

0

134

Toro 77-8110

Valve-Inlet (Includes Seat)

Note: Included in Carburetor Gasket Set-Part No. 77-8920

$24.99

$

Usually ships in 3-6 days

0

137

Toro 77-8200

FLOAT BOWL GASKET

Note: Included in Carburetor Gasket Set-Part No. 77-8920

$8.49

$

In Stock, only 3 left!

0

137

Toro 77-8200

FLOAT BOWL GASKET

Note: Included in Carburetor Gasket Set-Part No. 77-8930.

$8.49

$

In Stock, only 3 left!

0

163

Toro 77-7960

AIR CLEANER GASKET

Note: Included in Gasket Set-Part No. 77-8900

$23.99

$

Usually ships in 3-6 days

0

358

Toro 77-8900

GASKET SET

$

$

Not available

524

Toro 77-7270

O-RING

Note: Included in Gasket Set-Part No. 77-8900

$11.99

$

Usually ships in 3-6 days

0

634

Toro 77-8150

SEAL WASHER

Note: Included in Carburetor Gasket Set-Part No. 77-8930.

$

$

Not available

842

Toro 77-7300

O-RING

Note: Included in Gasket Set-Part No. 77-8900

$4.99

$

In Stock, Qty 20+

0

868

Toro 77-7890

SealAssy-Valve
(Superseded to 94-1669)

Note: Included in Gasket Set-Part No. 77-8900

$

$

Not available

868A

Toro 77-7900

Seal-Valve
(Superseded to 94-1669)

Note: Included in Gasket Set-Part No. 77-8900

$

$

Not available

883

Toro 77-7760

EXHAUST GASKET

Note: Included in Gasket Set-Part No. 77-8900

$

$

Not available

977

Toro 77-8930

CARBURATOR GASKET SET

$10.99

$

Usually ships in 3-6 days

0

1022

Toro 77-7320

ROCKER COVER GASKET

Note: Included in Gasket Set-Part No. 77-8900

$21.99

$

In Stock, only 2 left!

0

1039

Toro 77-7250

FLOAT LIMITER

Note: Included in Carburetor Gasket Set-Part No. 77-8920

$

$

Not available

1091

Toro 77-9650

CAP - LIMITER

$

$

Not available
