22151 - Toro Walk-Behind Mower (SN: 069000001 - 069999999) (1996) ENGINE GTS 150 Parts Diagram

Walk-Behind Mower

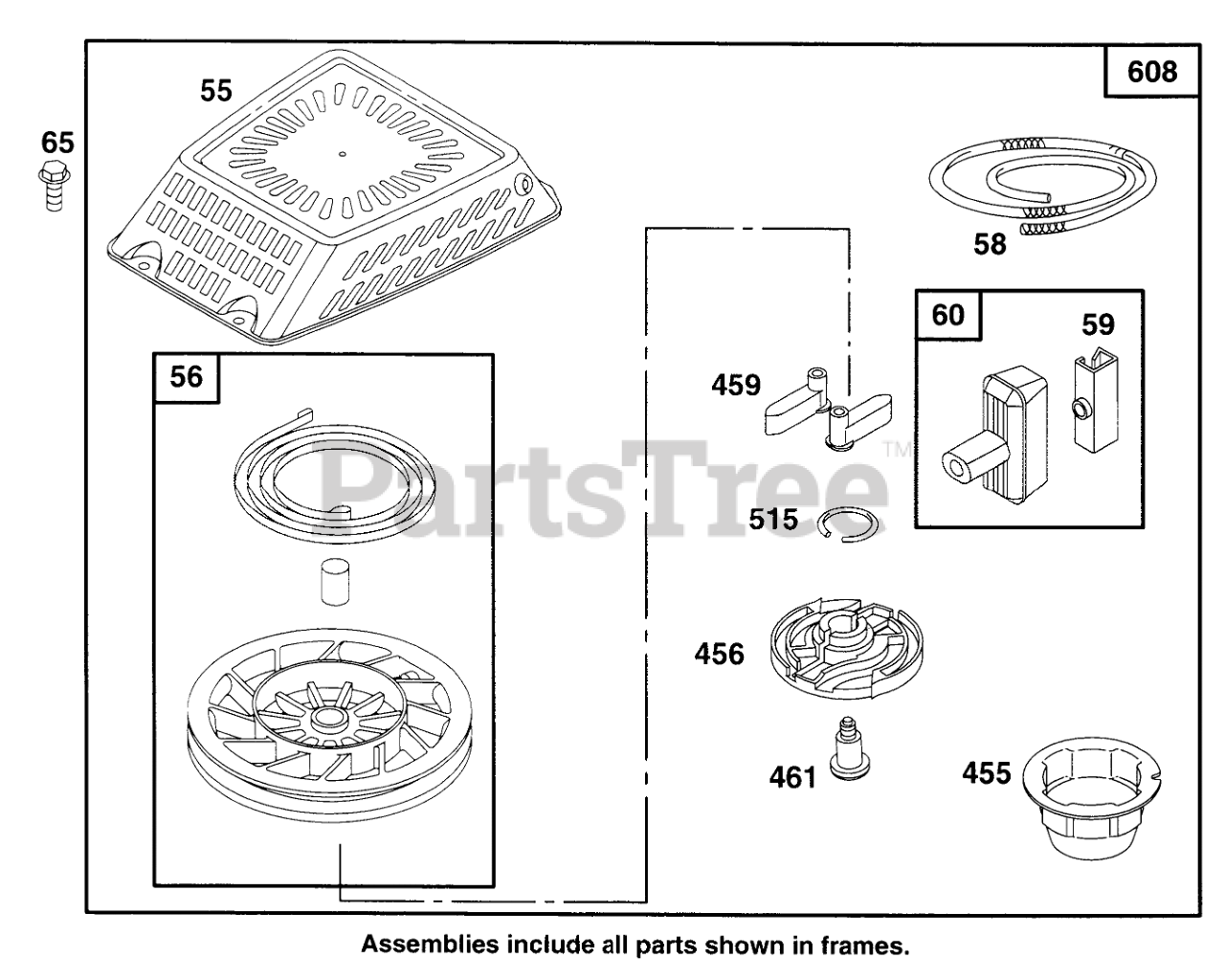

ENGINE GTS 150 Parts Diagram

  • Title
55

Toro 77-8460

Housing-Rewind Starter
(Superseded to 94-1678)

$

$

Not available

56

Toro 77-8560

Pulley-Rewind Starter
(Superseded to 77-9270)

$

$

Not available

58

Toro 77-8480

ROPE - STARTER

$

$

Not available

59

Toro 77-7210

INSERT-HANDLE, REWIND

$10.99

$

Usually ships in 3-6 days

0

60

Toro 77-8520

HANDLE-STARTER, REWIND

$

$

Not available

65

Toro 77-8300

SCREW - HEX HEAD

$

$

Not available

455

Toro 94-1653

CUP - STARTER

$17.99

$

Usually ships in 3-6 days

0

456

Toro 77-8470

RETAINER - SPRING

$6.49

$

Usually ships in 3-6 days

0

459

Toro 94-1654

PAWL-STARTER

$7.49

$

Usually ships in 3-6 days

0

461

Toro 77-8490

SCREW - HEX HEAD

$

$

Not available

515

Toro 94-1655

SPRING-TORSION

$

$

Not available

608

Toro 77-8450

Starter Assy-Rewind
(Superseded to 94-1678)

$

$

Not available
